1 Serial Port to Ethernet Converter / Intelligent Controller with 7 segment display, 40 Mhz CPU. MiniOS7 Operating System. Supports operating temperatures between -25 to 75°C.

I-7188E1D (with 7 segment display)

1 Serial Port to Ethernet Converter / Intelligent Controller with 7 segment display, 40 Mhz CPU. MiniOS7 Operating System. Supports operating temperatures between -25 to 75°C.

  Price:  $319.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

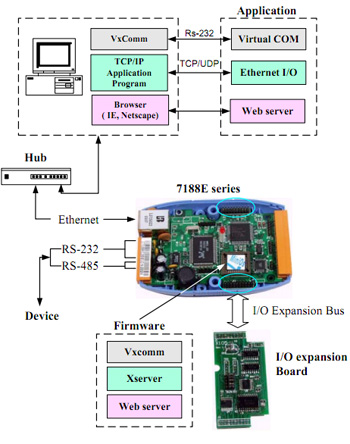

7188E DiagramThe I-7188EX, Embedded Internet/Ethernet Controller, focuses in Embedded Control applications while the I-7188E series, Internet Communication Controllers, focus on communication applications. According to different embedded firmware and application programs, the Internet Communication Controllers can be used as Device Servers, Addressable Ethernet to RS-232/485/422 Converters, or Embedded Internet/Ethernet Controllers. The user should refer to the comparison table to choose their optimal product. We offer a wide range of Internet Communication Controllers, such as I-7188E1 / E2 /E3 /E4 / E5 / E8. Except the RTC circuitry, the basic hardware of I-7188E series is similar to the I-7188EX. Since there are too many configurations for the I-7188E series product, OEM or ODM version is welcome. Can be used as Addressable Ethernet to RS-232/485/422 Converter.

Most RS-232/485/422 devices don't support device address. The I-7188E series can assign a unique address to any RS-232 device installed in the Ethernet network. Host-PC can send command with device address to Ethernet network, the destination I-7188E series will remove the address field & pass the other fields of command to its local RS-232 device. The response of this local RS-232 device will be passed to host-PC via this destination I-7188E series.

Can be used as Ethernet to RS-232/485/422 Device Server. The Device Server is an appliance that network enables any device with a serial communication port. By virtue of its independent operating system, protocol independence, small size and flexibility, Device servers are able to meet the demand of virtually any network-enabled application. Most devices don't have network ports. Our Internet Communication Controllers allow those devices to become connected to the network.

Can be used as Embedded Internet/Ethernet Controller. Except for the Real Time Clock, the hardware and software of I-7188E series is similar to I-7188EX. The user can use well-developed libraries and demo programs to implement an Embedded Internet/Ethernet Controller.

Model
CPU
SRAM
Flash
DI
DO
Ethernet Port
COM1
COM2
COM3
COM4
COM5
COM6
COM7
COM8
(Note2)

I-7188E1

40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
-
-
-
-
-
-
-

I-7188E1D

I-7188E2

40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
-
-
-
-
-
-

I-7188E2D

I-7188E3
40M Hz
384K
512K
4
4
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-422
(Note5)
-
-
-
-
-
I-7188E3D
I-7188E3-232
40M Hz
384K
512K
4
4
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-232 (Note1)
-
-
-
-
-
I-7188E3D-232
I-7188E4
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-232 (Note1)
RS-232 (Note4)
-
-
-
-
I-7188E4D
I-7188E5
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-232 (Note1)
RS-232 (Note1)
RS-232 (Note1)
-
-
-
I-7188E5D
I-7188E5-485
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-485
(Note3)
RS-485
(Note3)
RS-485
(Note3)
-
-
-
I-7188E5D-485
I-7188E8
40M Hz
384K
512K
-
-
10
Base-T
RS-232 (Note1)
RS-485
(Note3)
RS-232
(Note2)
RS-232 (Note2)
RS-232 (Note2)
RS-232 (Note2)
RS-232 (Note2)
RS-232 (Note2)
I-7188E8D



Note1: RS-232, RXD, TXD, CTS, RTS, GND

Note2: RS-232, RXD, TXD, GND

Note3: RS-485: Data+, Data-;Self-tuner inside

Note4: RS-232, RXD, TXD, CTS, RTS, DSR, DTR, DCD, RI, GND

Note5: RS-422, TXD+, TXD-, RXD+, RXD-



The ICP DAS I-7188 ethernet controller offers the ultimate in modern ethernet-based control! The I-7188EN series offer users a multitude of connectivity and networking options, in a compact and robust embedded control format. Programmable in either C languages or Ladder Logic, the I-7188 embedded ethernet controllers offer cutting edge connectivity to almost any industrial control infrastructure!

  • Ideal for embedded Ethernet control or serial to Ethernet conversion
  • Compact form factor
  • AMD 80188-40 embedded CPU
  • ISaGRAF IEC-1131 development runtime equipped** (I-7188EG)
  • ModBus TCP/IP & RTU compatible** (requires "-MTCP" firmware)
  • Supports a variety of TCP/IP features:
    • TCP, UDP, IP, CMP, ARP, and RARP
  • 10BASE-T NE2000 compatible Ethernet Controller
  • Reloadable Operating Software
  • Remote Configuration
  • 64-bit hardware unique serial number inside
  • COM driver support interrupt & 1K QUEUE input buffer
  • COM port: COM1, COM2,
  • Built-in RTC, NVRAM, EEPROM
  • User defined 14 I/O lines
  • Built-in I/O expansion bus interface
  • Internal expansion bus allows for multiple capability configurations
  • Built-in self-tuner ASIC controller on RS-485 port
  • 7-segment LED display for:
    • I-7188E1D, I-7188E2D, I-7188E3D, I-7188E4D, I-7188E5D and I-7188E8D
  • Built-in MiniOS7
  • Program download port: COM1 or Ethernet Port

Specifications

CPU
CPU 80188, 40MHz or compatible
SRAM

384K bytes

Flash Memory 512K bytes
EEPROM 2K Bytes
Built-in Watchdog Timer Yes
Communication Interface
COM1 RS-232 (TXD, RXD, RTS, CTS, GND)
Ethernet Port 10BASE-T NE2000 compatible Ethernet Controller
COM Port Formats
Data bit 7, 8
Parity Even, Odd, None
Stop bit 1
Baud Rate 115200 bps Max.
LED Display
5-Digit 7 Segment LED Display Yes (for I-7188E1D only)
System LED Indicator Yes
Dimensions
I-7188E1(D) 123mm x 72mm x 33mm
Operating Environment
Operating Temperature -25°C to +75°C
Storage Temperature -40°C to +80°C
Power
Protection Power reverse polarity protection
Required Supply Voltage +10 to +30V/DC (non-regulated)
Power consumption 2W for I-7188E1
3W for I-7188E1D
