RS-232/RS-422/RS-485 to Bluetooth Low Energy Converter. Operating temperature -25°C ~ +75°C.

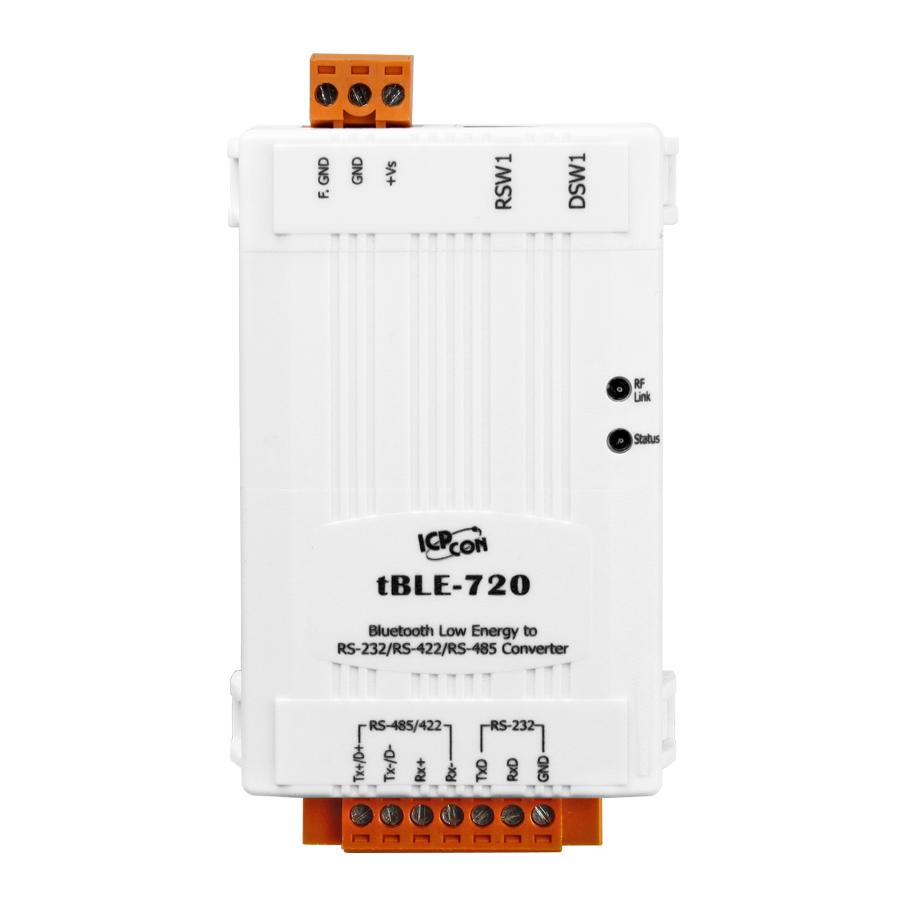

tBLE-720

RS-232/RS-422/RS-485 to Bluetooth Low Energy Converter. Operating temperature -25°C ~ +75°C.

  Price:  $179.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The tBLE-720 module is designed with an RS-232, RS-422 or RS-485 interface, allowing it to be converted to Bluetooth low energy (LE) piconet network.The tBLE-720 is equipped to have mobile device (e.g. smart phone, tablet or notebook) connection, which provides Bluetooth LE data conversion between two devices.

Does not currently have FCC and Blue Tooth Certification.

The tBLE-720 is equipped with two transmission modes – advertisement and connection mode:

In advertisement, the user is able to send advertising packet and is a broadcaster and observer in transmission mode.

In connection mode, the modules sends a connection packet and is central and peripheral.

Users can use dip switch to change transmission mode and role. The tBLE-720 supports many useful AT commands. They can set many parameters such as connection parameters and broadcast parameters.

In addition, ICPDAS provides software utility to easily configure and test the tBLE-720 modules via RS-232, RS-422 or RS-485.

  • Frequency: ISM 2.4 GHz
  • Standard: Bluetooth 4.0
  • Interface: RS-232, RS-422 and RS-485
  • Baud Rate :9600~115200 bps
  • Supports multiple connections –Max slave is 3
  • Supports two types of communication - advertisements and connection
  • Provide AT command to setup the module
  • RF Link and status LED indicators for troubleshooting
  • Easy-to-use switch for baud rate and Bluetooth LE role setting
  • No Antenna required
  • GUI Configuration Software (Windows Version)
  • Operating Temperatures, -25 °C ~ +75 °C



Applications

<img data-cke-saved-src="images/J-1.jpg" src="images/J-1.jpg" title="tBLE-720-app-1" class="imagezoom" "="" style="float: left; width: 40%;">







Ultilities

ICP DAS USA provides the tBLE-720 configuration utility for Windows OS.



  • Parameters configuration
  • Firmware upgrade
  • Easy test to transmit/receive
  • Setting files management




Specifications

Hardware

LED indication

Status / RF link

Switch

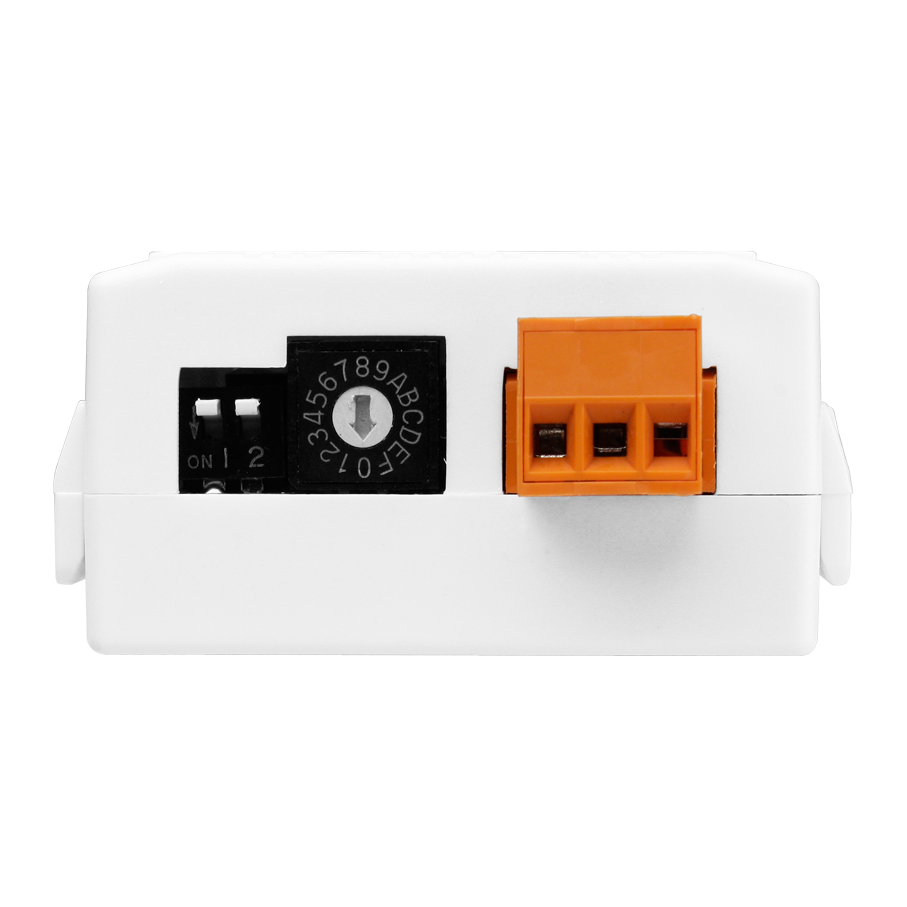

Dip switch: Role / Transmission mode
Rotary switch: Baud rate

RF Specification

LED indication

2.4 GHz ISM(2402~2480 MHz)

Tx power

-20~4 dBm

Rx sensitivity

-94 dBm

Antenna type

1.0 dBi chip antenna

Transmit Range

20 m

RF data rate

85 kbps

Max. Slaves Supported

3

Bluetooth LE Interface

Version

Bluetooth 4.0

Connection Role

Central/Peripheral – connection mode
Observer /Broadcaster – broadcast mode

Communication Interface

Version

Bluetooth 4.0

Connection Role

Central/Peripheral – connection mode
Observer /Broadcaster – broadcast mode

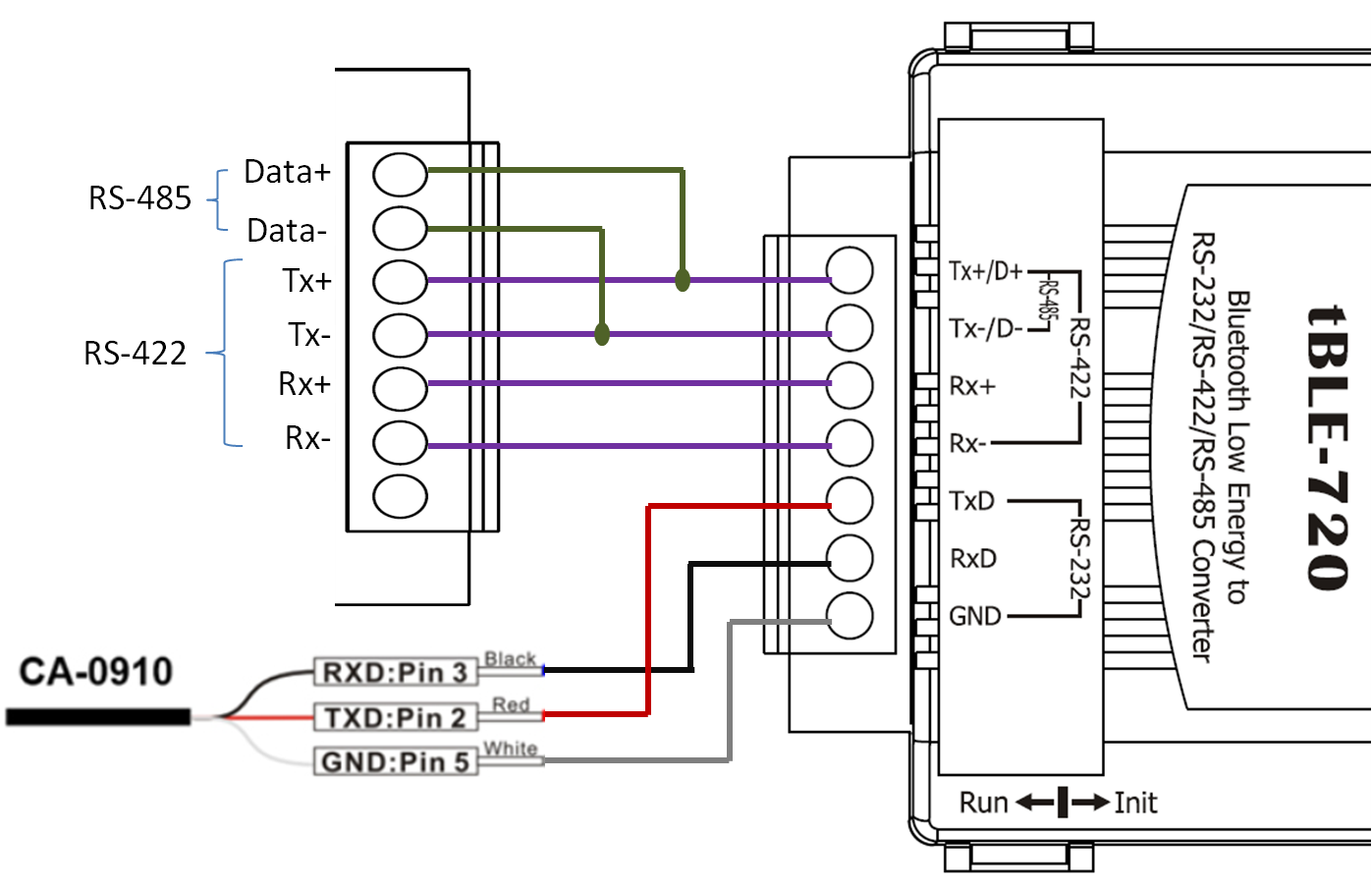

Communication Interface

COM0

RS-232

TxD, RxD and GND

RS-422

Tx+, Tx-, Rx+ and Rx-

RS-485

Tx+ and Tx-

Data Format

N,8,1

Baud Rate

9600~115200 bps

Power

Operating Voltage

+10 VDC ~ +30 VDC

Power Consumption

1W

Mechanical

Casing

Plastic

Dimensions (W x L x H)

52 mm x 95 mm x 27 mm

Installation

DIN-Rail

Environment

Operating Temperature

-25°C ~ +75°C

Storage Temperature

-25°C ~ +75°C

Relative Humidity

5 ~ 95% RH, Non-condensing
