4-channels AI, 4-channels AO, 4-channels DI and 2-port Ethernet Switch

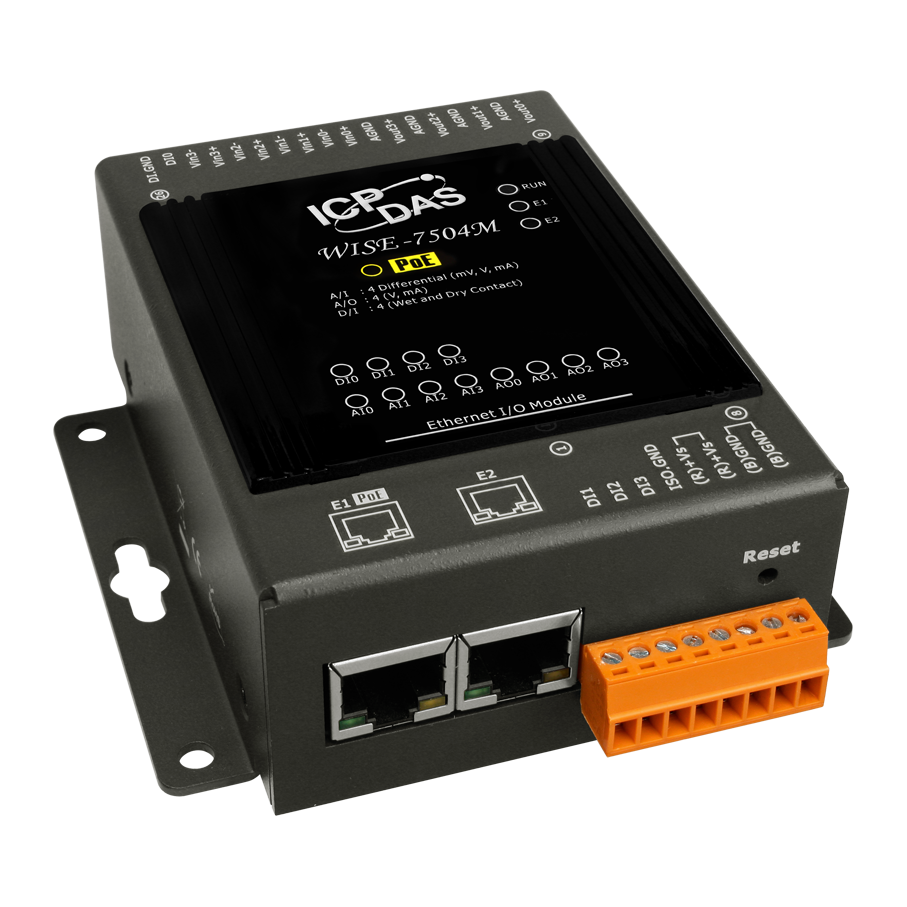

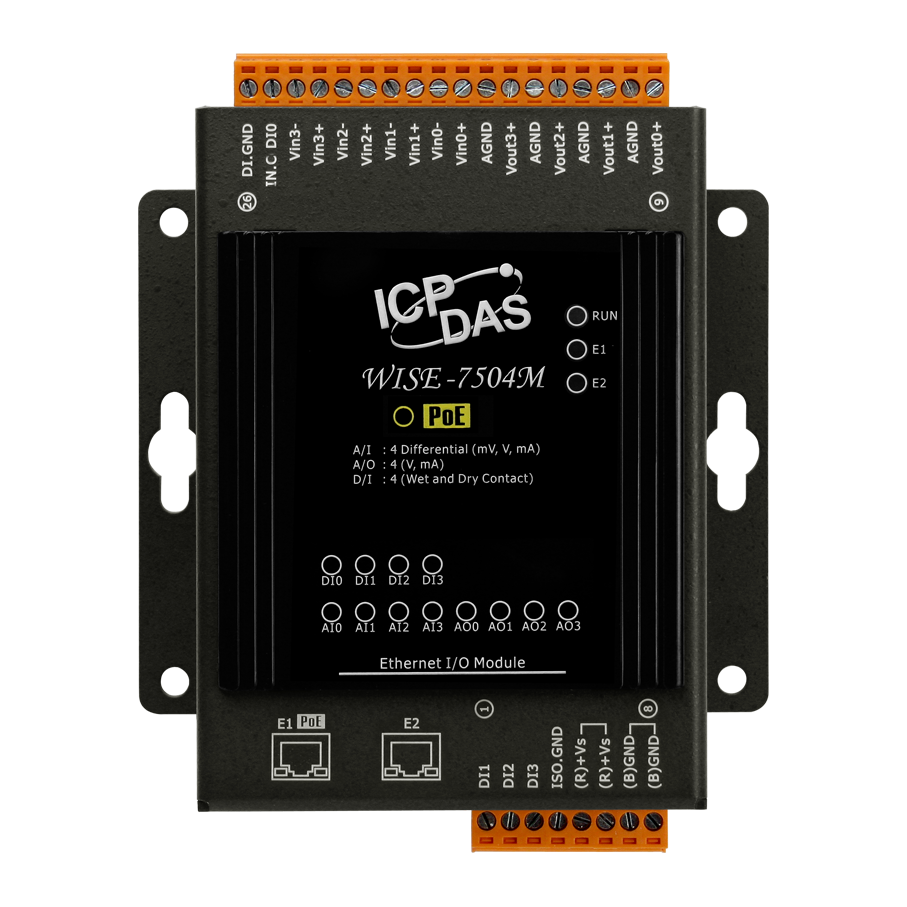

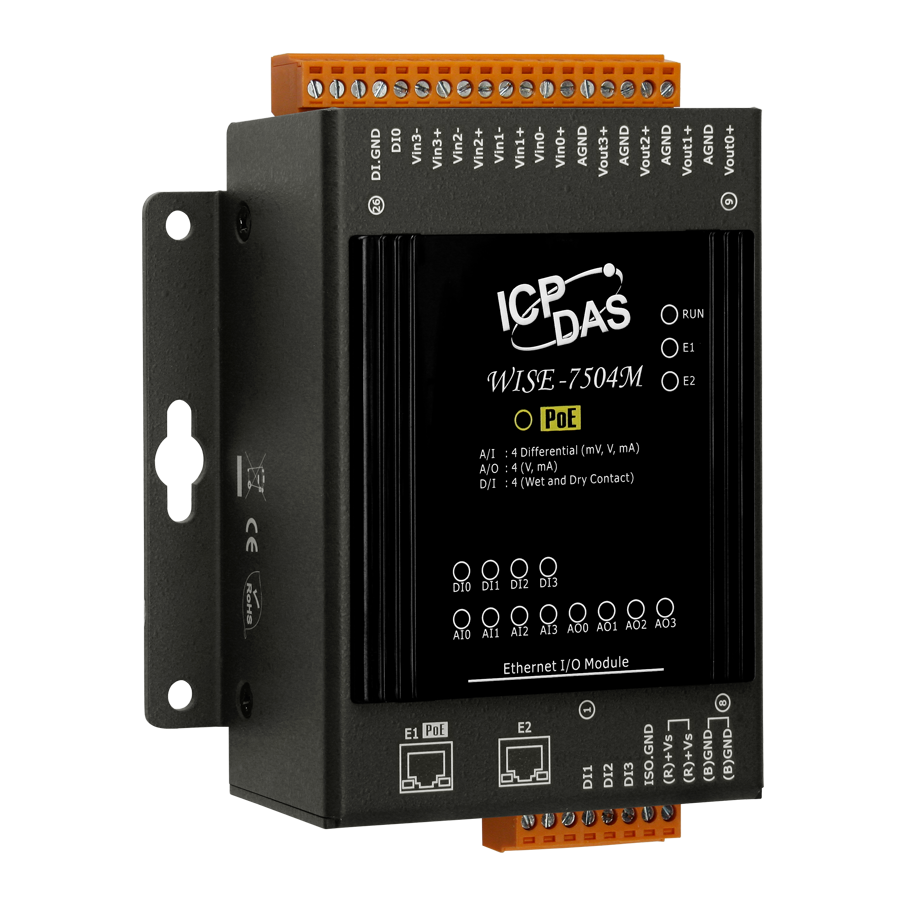

WISE-7504M

4-channels AI, 4-channels AO, 4-channels DI and 2-port Ethernet Switch

  Price:  $749.00

Features

WISE-7504M is a multi-function module with 4-channel analog inputs, 4-channel analog outputs and 4-channel digital inputs module. WISE-7540M provides multiple programmable analog inputs, and analog outputs. Each of its analog inputs can configure a proper range of 240 Vrms high voltage protection. WISE-7504M follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification, allowing it to receive power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7504M is equipped with two-port ethernet switch to implement daisy-chain topology; reducing the cost and allowing easy cabling. By integrating with IF-THEN-ELSE rule engine, WISE-7504M provides more powerful functions such as I/O Moniitoring/Control, Counter, Timer, Schedule, E-mail sending & CGI Command sending for use in various industrial applications. WISE-7504M also supports Modbus TCP and MQTT protocol to make seamless integration with SCADA, IT and IoT (Internet of Things) system.

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (AI: 4 Channels; AO: 4 Channels; DI: 4 Channels)
  • Support I/O Moniitoring/Control, Counter, Timer, Schedule, Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).
  • 2-port Ethernet Switch for Daisy-Chain Topology.
  • MQTT Protocol for IT & IoT (Internet of Things) System Integration.

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.

Reference & Support

Specifications

Analog Input

Channels

4 (Differential)

Type

±500 mV, ±1 V, ±5 V, ±10 V, +0 mA to +20 mA, ±20 mA, 4 to 20 mA (Jumper Selectable)

Resolution

16-bit

Sampling Rate

10 Samples/Second (Total)

Accuracy

±0.1 %

Zero Drift

±20 μV/°C

Span Drift

±25 ppm/°C

Overvoltage Protection

240 Vrms

Overcurrent Protection

50 mA Max. at 110 VDC/VAC Max.

Common Voltage Protection

±200 VDC

Overcurrent Protection

Yes, 50 mA at 110 VDC

Virtual Channel to Channel Isolation

Yes, 400 VDC

Open Wire Detection for 4 ~ 20 mA

Yes

Input Impedance

Voltage

2 MΩ

Current

125 Ω

Common Mode Rejection

86 dB Min.

Normal Mode Rejection

100 dB

Analog Output

Channels

4

Type

+0 VDC to +5 VDC, ±5 VDC, +0 VDC to +10 VDC,±10 VDC, +0 mA to +20 mA, +4 mA to +20 mA (Jumper Selectable)

Resolution

12-bit

Accuracy

±0.1% of FSR

Voltage Output Capability

20 mA @ 10 V

Current Load Resistance

400 Ω

Open Wire Detection

Yes, for 4 to 20 mA only
