8 Port Industrial 10/100 Mbps PoE (PSE) Ethernet Switch. Comparable to Sixnet, Stride, Hirschmann, and other industrial Ethernet Switches. Supports operating temperatures from -40°C ~ +75°C (-40F ~ 167F).

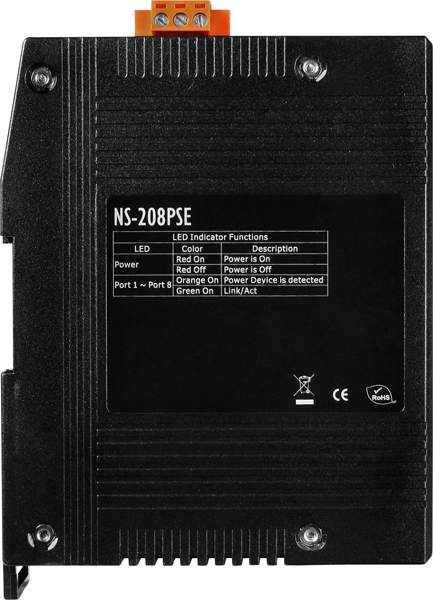

NS-208PSE

8 Port Industrial 10/100 Mbps PoE (PSE) Ethernet Switch. Comparable to Sixnet, Stride, Hirschmann, and other industrial Ethernet Switches. Supports operating temperatures from -40°C ~ +75°C (-40F ~ 167F).

  Price:  $359.00

Features

NS208PSE applicationThe NS-208PSE is an 8-port unmanaged PoE (Power over Ethernet) Industrial Ethernet switch. It supports 8 PoE ports which are classified as power source equipments (PSE). The NS- 208PSE makes centralized power supply come true and provides up to 15.4 watts of power per port. The NS-208PSE can be used to power IEEE802.3af compliant powered devices (PD) by Ethernet cable and eliminates the need for additional power wiring.

  • Automatic MDI/MDI-X crossover for plug-and-play
  • Each port supports both 10/100Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • 8 PoE ports with Power Sourcing Equipment (PSE) operation
  • Auto-detection of PD (powered devices) and automatic power management
  • Over-temperature, over-current and over/under-voltage detection
  • Supports operating temperatures from -40°C ~ +75°C
  • DIN-Rail mount
  • NSM-208PSE-R meets railway standards. "-R" stands for products with MIL SPEC conformal coating protection

Specifications

Technology
Standards  IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet)
Processing Type  Store & forward, wire speed switching
MAC Addresses  1024
Memory Bandwidth  3.2 Gbps
Frame buffer memory  512 Kbit
Flow Control  IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports  10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators  Power, Link/Act , Power Device is detected
Ethernet Isolation  1500 Vrms 1 minute
+/- 6kV EMS Protection  Yes
Power Input
Input Voltage Range  +46 ~ +55VDC for PoE output
Power consumption  0.12A@48 VDC with PoE Off
Protection  Power reverse polarity protection
+/- 6kV EMS Protection  Yes
Connection  3-Pin Removable Terminal Block
PoE Output
PoE Compliance  100% IEEE 802.3af compliant
PoE Classification  PSE (Power Sourcing Equipment)
PoE Voltage  +46 ~ +55 VDC depending on power input
PoE Power  Up to 15.4 watts per channel
PoE Operation  Automatic detection and power management
Mechanical
Casing  Metal
Dimensions (W x L x H)  31 mm x 157 mm x 113 mm
Installation  DIN-Rail
Environmental
Operating Temperature  -40 °C ~ +75 °C
Storage Temperature  -40 °C ~ +85 °C
Ambient Relative Humidity  10% ~ 90% RH, non-condensing
