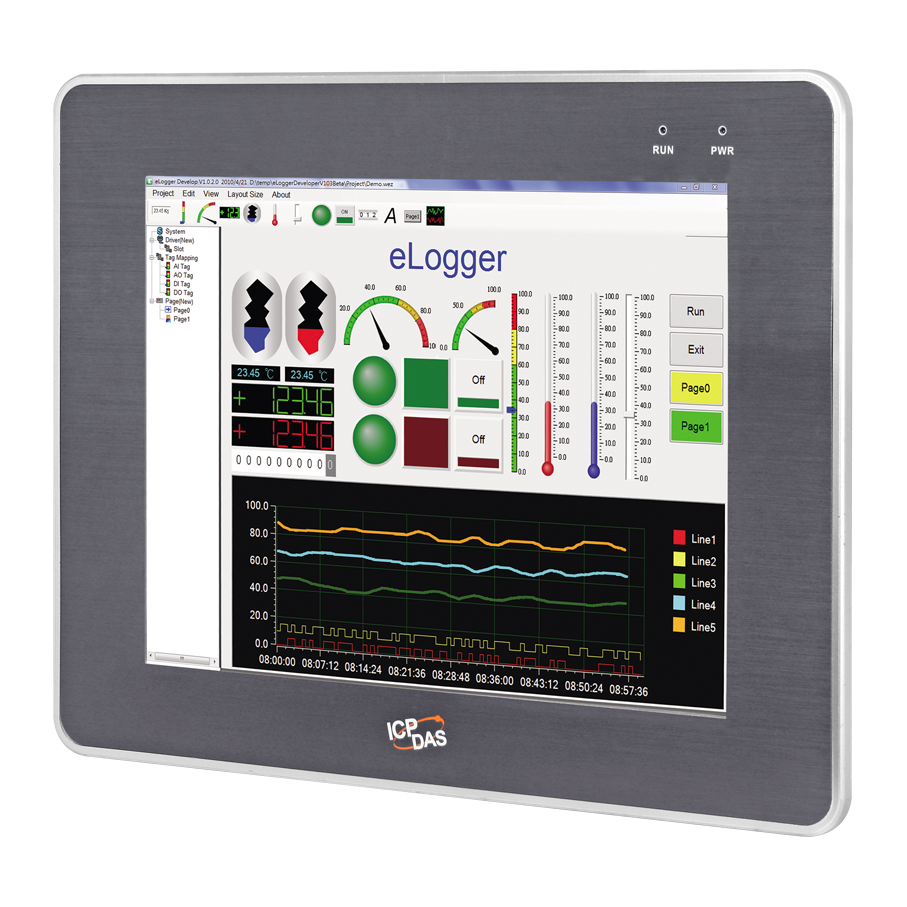

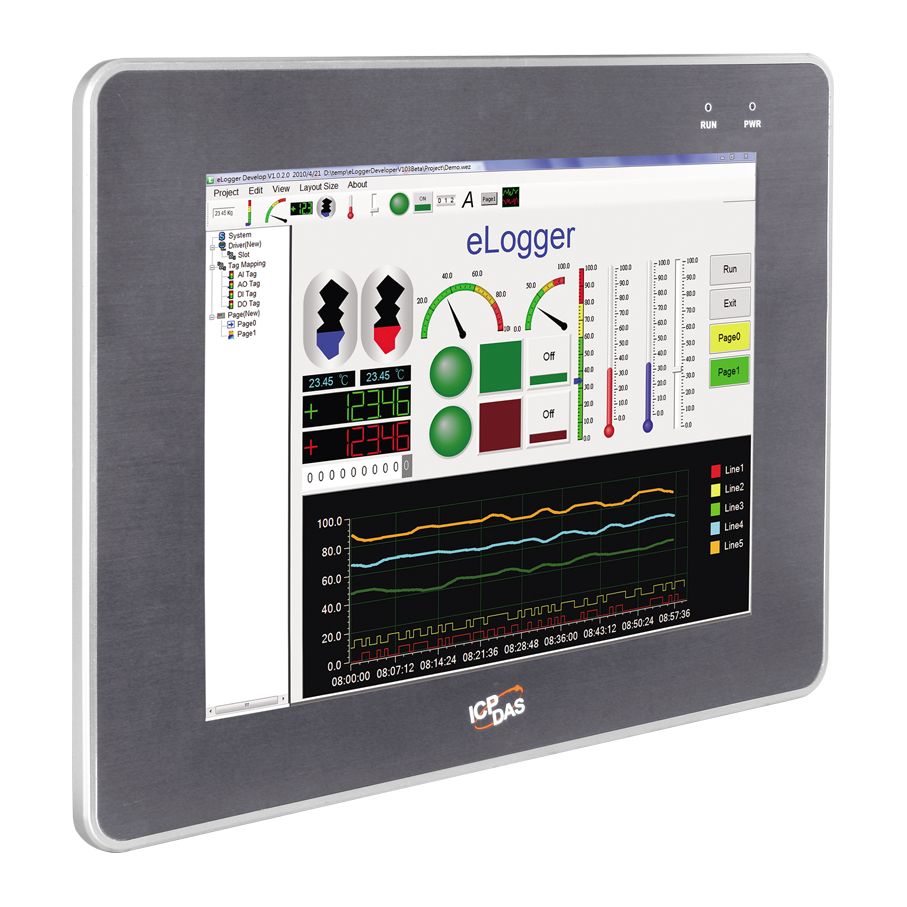

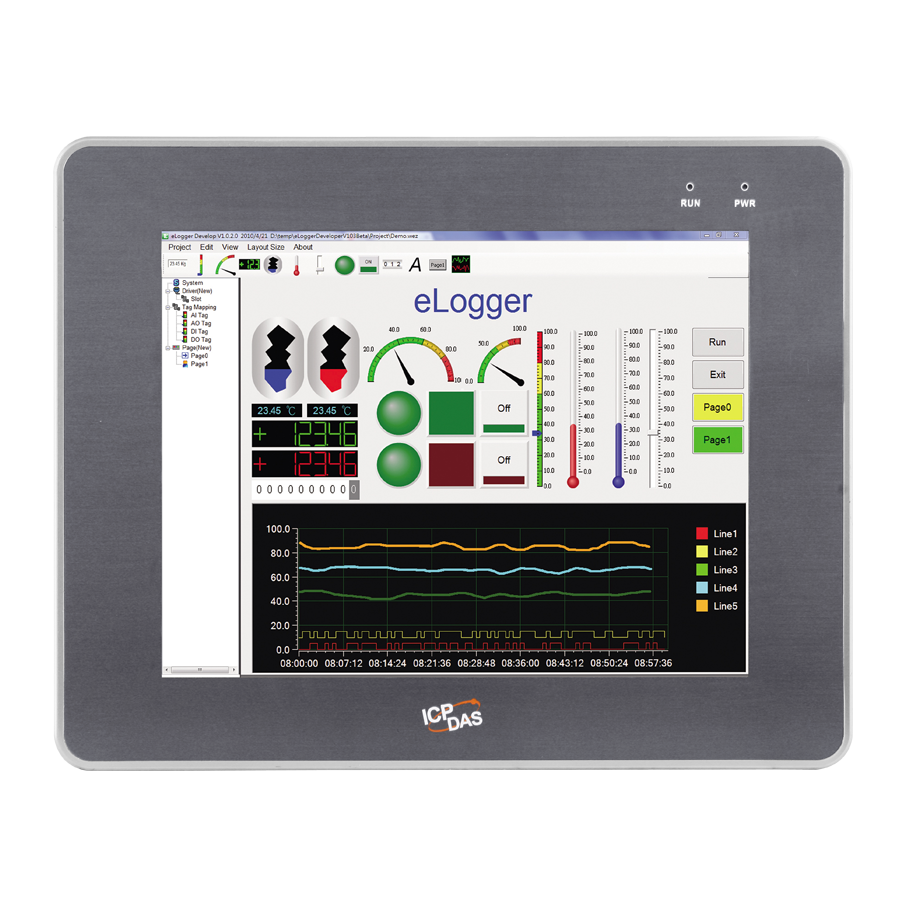

The WES7 series are a Panel PC that combines computing, I/O, and operator interface into a single unit, providing the perfect solution for integrating HMI, data acquisition and control in an individual PAC. The WES7 series are equipped with an Intel Atom E3827 CPU, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The WES7 series has a pre-installed operating system in the built-in mSATA SSD, and storage can be expanded from a Compact Flash slot. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand harsh environments such as: sprayed water, humidity and extreme dust. Designed to operate over a wide -20 ~ 60 °C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.
- LCD Size: 10.4", 12.1", 15" and 17” with Touch Panel
- E3827 (1.75 GHz) CPU
- WES7 (Windows Embedded Standard 7)
- Support eLogger HMI (free)
- NEMA 4/IP65 Compliant Front Panel
- Ultra-Rugged Construction and Reliable Design
- Operating Temperature?-10 °C ~ +60 °C
800 x 600
LED Backlight Life (hrs)
Yes, 5-wire, resistive type; light transmission: 80 %
4 (Run, PWR, L1, L2; L1 and L2 for user programmable)
Microsoft Windows Embedded Standard 7 SP1
.Net Framework 3.5, 4.0, 4.5
IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Dll for Visual Studio.Net
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplifi ed Chinese, Traditional Chinese
E3827 (1.75 GHz, 64-bit dual core)
mSATA slot with one 32 GB SSD
CF slot with a 16 GB CF card (support up to 32 GB)
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number
Yes, for software copy protection
Dual Watchdog Timers
Yes (0.8 second)
Yes (0 ~ 9)
1 x RJ-45 10/100/1000 Base-TX
Mic-in and Earphone-out
Dimensions (W x H x D), Unit: mm
323 x 254 x 63
Panel Cut-Out (W x H, unit: mm)
308 x 239, ±1
Panel Mounting, VESA Mounting (75 x 75, 100 x 100)
Front panel: NEMA 4/IP65
-20 °C ~ +60 °C
-20 °C ~ +70 °C
Ambient Relative Humidity
10 % ~ 90 % RH (non-condensing)
+10 VDC ~ +30 VDC
1500 VDC min
