16-channel FRNet Sink/Source Type Isolated Digital Input Module With Isolated Communication line

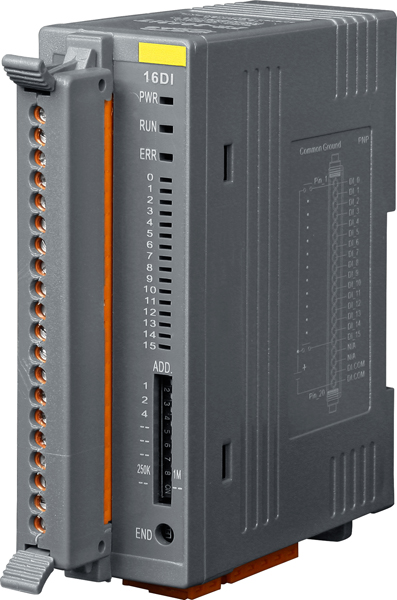

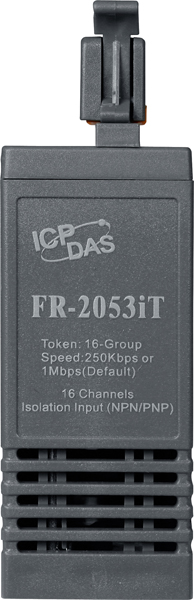

FR-2053iT

16-channel FRNet Sink/Source Type Isolated Digital Input Module With Isolated Communication line

  Price:  $229.00

Features

Introduction

The FR-2053TA has 16-channel isolated Sink/Source input, while the FR-2057TA has 16-channel isolated source output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053TA/2057TA; refer to literature related to I-7188EF, I-8172, FRB-100/200/200U.


Features

  • Built-in Wire-saving FRnet DI/DO control
  • High-speed transmission reliability
  • Simple synchronization mechanism
  • No software overhead on protocol processing
  • Supporting broadcasting (1:n data transmission)
  • Duplicating output easily
  • Fixed I/O scan-time and I/O synchronization
  • DIN-Rail mountable

Specifications

Digital Input
Input Channel 16 (Sink/Source)
Input Type One Common Power or One Common Ground for All Inputs
On Voltage Level +19V ~ +30V
Off Voltage Level +11V max
Input Impedance 3.25K Ohms, 0.25W
Isolation Voltage 3750Vrms

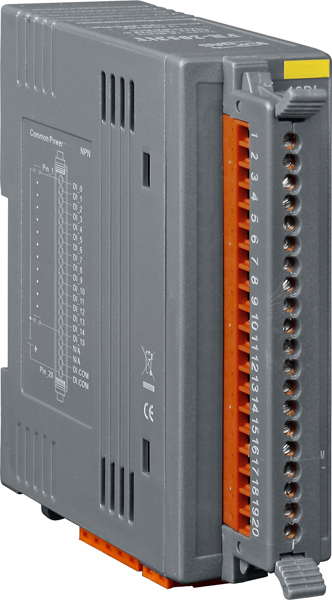

Connection 20-Pin Removable Terminal Block
Interface
Isolation Voltage 3000Vrms
2-wire cabling 2-wire cabling Belden 8941 (2P twisted-pair cable),
When different cables are used, the transmission distance may change
Transfer distance Max. 400m for speed 250K
Max. 100m for speed 1M(Default)

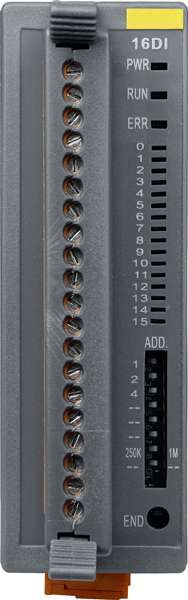

LED Indicators Power, Communication Run, Communication Error, Terminal resistor, Digital output
Transfer speed 250Kbps and 1Mbps(Default)

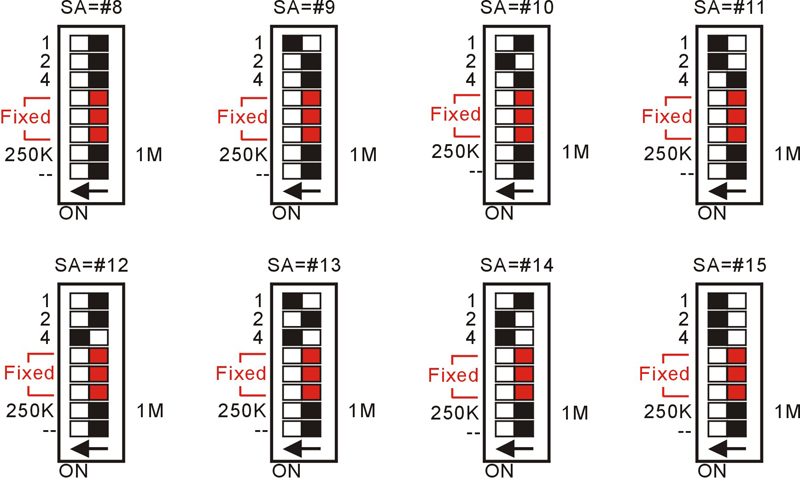

DIP Switch Settings
Cyclic scan time 2.88ms for speed 250K
0.72ms for speed 1M(Default)
Power
Input Voltage Range +10 ~ +30VDC (Non-isolation)
Power consumption 2.4W Max

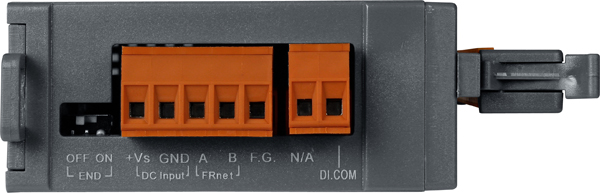

Connection 5-Pin Removable Terminal Block
EMS Protection
ESD 4KV for power liner, Communication line and each channel
EFT 1KV for power liner
Surge 0.5KV for power liner
Case
Case Plastic
Flammability UL 94V-0 materials
Dimensions 32.5mm x 110mm x 102mm (W x H x D)
Installation DIN-Rail
Mechanical
Operating Temperature -25 °C~ +75°C
Storage Temperature -30 ~ +85°C
Ambient Relative Humidity 10 to 90% RH, non-condensing
