DeviceNet Slave Module of 8-channel Voltage Input, Current Input and Thermocouple Inputs (Analog Input).  Supports input types: +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V
+/-20mA, Thermocouple Types (J, K, T, E, R, S, B, N, C). Includes CN-1824 Daughter Board

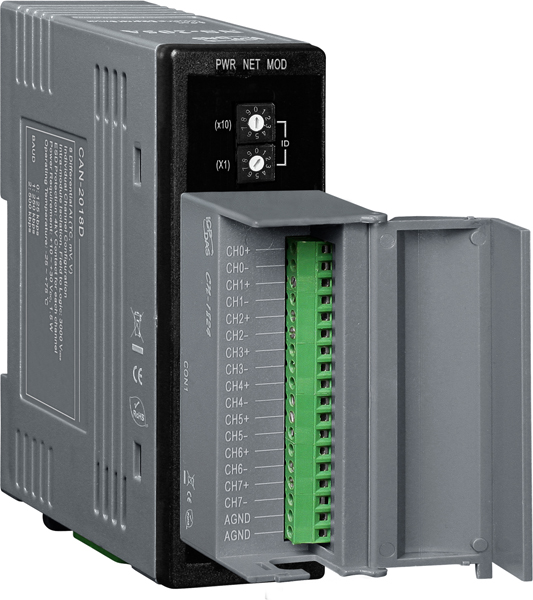

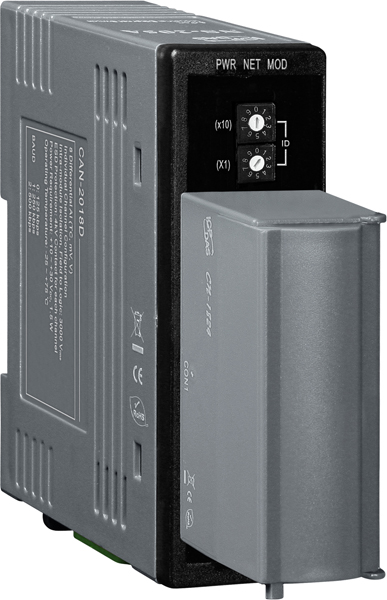

CAN-2018D

DeviceNet Slave Module of 8-channel Voltage Input, Current Input and Thermocouple Inputs (Analog Input). Supports input types: +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V +/-20mA, Thermocouple Types (J, K, T, E, R, S, B, N, C). Includes CN-1824 Daughter Board

  Price:  $539.00

Features

CAN-2018D applicationDeviceNet is one kind of network protocol based on the CAN bus, it's mainly used for the embedded network of the machine control, such as industrial machine control, aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, packaging machines control, etc.

The CAN-2018D follows DeviceNet specification Volume I/II, Release 2.0. User can access the thermocouple input status and set the configuration via DeviceNet EDS file. CAN-2018D has 8-channel thermocouple input and it can be used for various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.

Applications

CAN-2018D application 2

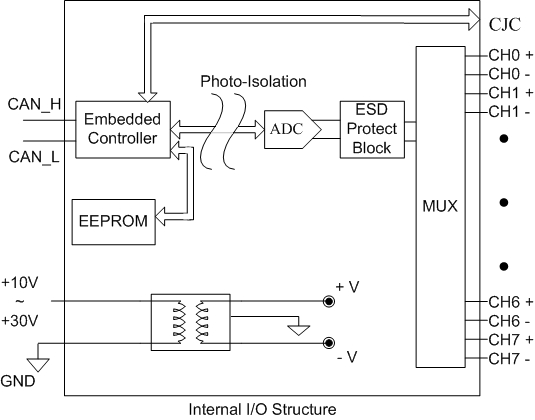

Specifications

DeviceNet Interface
DeviceNet Specification
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
DeviceNet subscribe
Group 2 Only Server
Connection supported
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate
  Setting by Rotary Switch
125 kbps, 250 kbps, 500 kbps
Node ID
  Setting by Rotary Switch
0 ~ 63
Heartbeat message
Yes
Shutdown message
Yes
Terminator Resistor
Switch for 120 Ω terminator resistor
Connector
5-pin screwed terminal block
(CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file
Yes

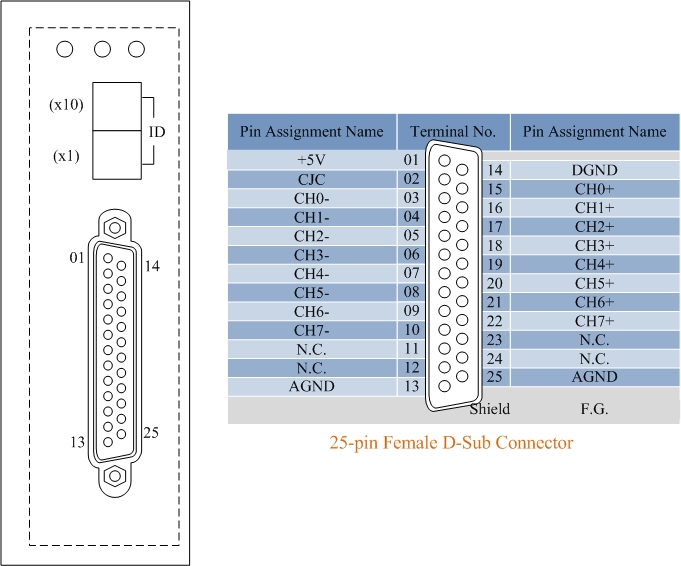

Analog Input
Channels
8

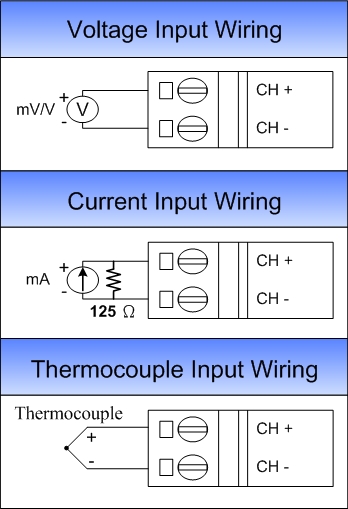

Input Type
+/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V
+/-20mA,(Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C)
Resolution
16-bit
Sampling Rate
10 Samples/Sec. (Total)
Accuracy
+/-0.1% FSR
Zero Drift
+/- 10 μV/ °C
Span Drift
+/- 25 ppm/ °C
Common Mode Rejection
86 dB
Normal Mode Rejection
100 dB
Input Impedance
>400 kΩ
Individual Channel Configuration
Yes
Open Thermocouple Detection
Yes
Over voltage Protection
240 Vrms
ESD Protection
+/-4kV, Contact for each terminal.
Intra-module Isolation, Field to Logic
3000 VDC
LED
Power
PWR, red
DeviceNet Status
NET/MOD, green/orange
Power
Power Supply
Unregulated +10 ~ +30 VDC
Power Consumption
1.5 W
Mechanism
Installation
DIN-Rail
Dimensions
33 mm x 99 mm x 78 mm (W x L x H)
Environment
Operating Temp.
-25 ~ 75 ℃
Storage Temp.
-30 ~ 80 ℃
Humidity
10 ~ 90% RH, non-condensing

Thermocouple Type

Type Code
Temperature Range (°C)
J
-210 °C ~ +1200 °C
K
-270 °C ~ +1372 °C
T
-270 °C ~ +400 °C
E
-270 °C ~ +1000 °C
R
-50 °C ~ +1765 °C
S
-50 °C ~ +1765 °C
B
0 °C ~ +1820 °C
N
-270 °C ~ +1300 °C
C
0 °C ~ +2320 °C
