ZigBee Wireless 8-channel Analog Input Module with High Voltage Protection (Long Range).  Wireless Transmission Range up to 700 meters.  Supports DCON and Modbus RTU Protocols and has an operating temperature of -25 °C ~ +75 °C (-13F ~ 167F).

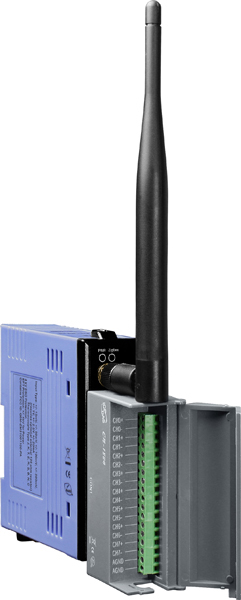

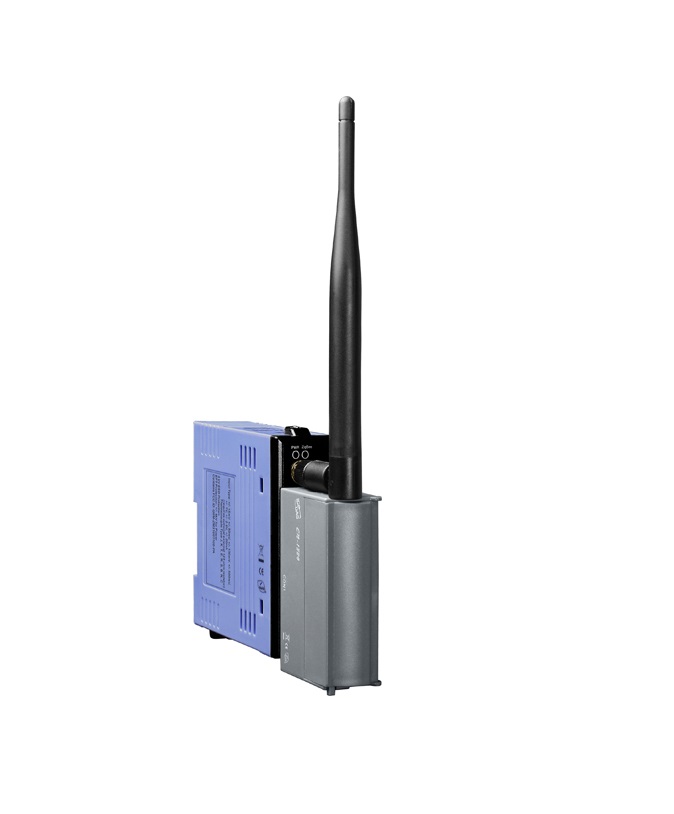

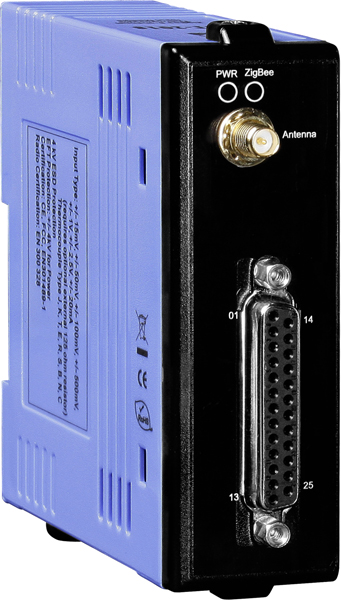

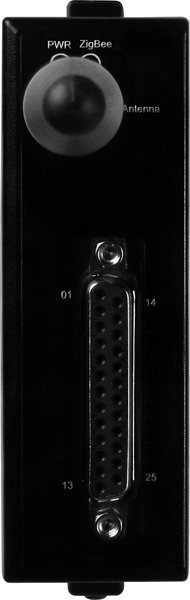

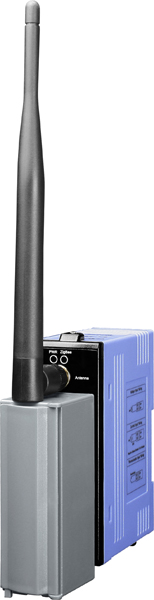

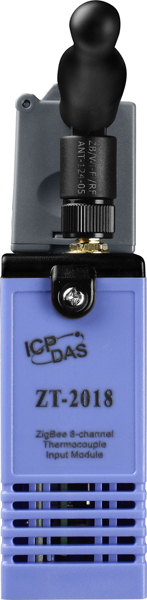

ZT-2018

ZigBee Wireless 8-channel Analog Input Module with High Voltage Protection (Long Range). Wireless Transmission Range up to 700 meters. Supports DCON and Modbus RTU Protocols and has an operating temperature of -25 °C ~ +75 °C (-13F ~ 167F).

  Price:  $559.00

Features

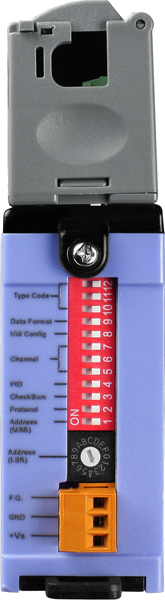

The ZT-2018 a wireless 16-bit, 8-channel differential analog input module with an extremely high quality protection mechanism where overvoltage protection is up to 240 Vrms. Input type includes current, voltage as well as thermocouple. and is much more suitable for harsh environments. Moreover, a newly-added feature that enables open thermocouple detection makes the ZT-2018 more attractive than ever. The ZT-2018 is also qualified for 4 kV ESD protection and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G / ZigBee Specification
  • Wireless Transmission Range up to 700 m
  • GUI Configuration Software (Windows Version)
  • 8 Different Analog Input Channels (TC, mV, V)
  • Individual Channel Configuration
  • Open Thermocouple Detection
  • Overvoltage Protection up to 240 Vrms
  • DIN-Rail Mounting
  • Can host with ZT-2570 or ZT-2550

Specifications

Communication Interface
Wireless Standards ZigBee 2007 Pro
Transmission Power 11 dBm (FCC Certifi cated) ( Max 19 dBm)
2.4 GHz Antenna 5 dBi Omni directional
Transmission Range (LoS) 700 m (Typical)
Certification CE/FCC, FCC ID
Max. Slaves in a ZigBee Network 255
ZB-100R/ZB-100T Support -
Protocols Supports DCON and Modbus RTU Protocols
Hot Swap Rotary and DIP switch
LED Indicators
Power 1 LED, red
ZigBee Communication 1 LED, green
Power
Power Consumption 1.2 W Max.
Mechanical
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H) 33 mm x 87 mm x 107 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Relative Humidity 10 ~ 90% RH, Non-condensing



Analog Input
Input Channels 8 Differential
Input Types +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA, or 4 ~ 20 mA Thermocouple (J, K, T, E. R. S, B, N, C, L, M, L (DIN43710))
Resolution 16-bit
Sampling Rate 10 Samples/Sec. (Total)
Accuracy +/-0.1% of FSR
-3dB Bandwidth 15.7 Hz
Zero Drift +/-10 μV/°C
Span Drift +/-25 ppm/°C
Common Mode Rejection 86 dB
Normal Mode Rejection 100 dB
Input Impedance >400 MΩ
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Intra-module Isolation, Field-to-Logic 3000 VDC
ESD Protection +/-4 kV contact for each channel
