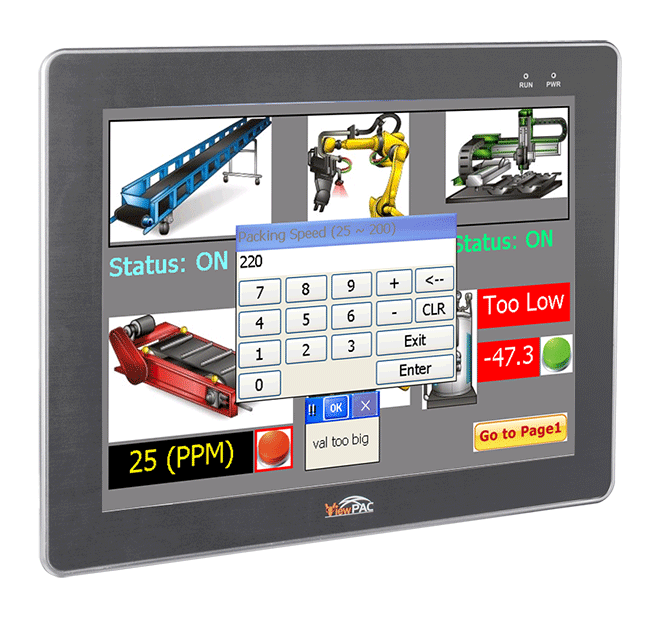

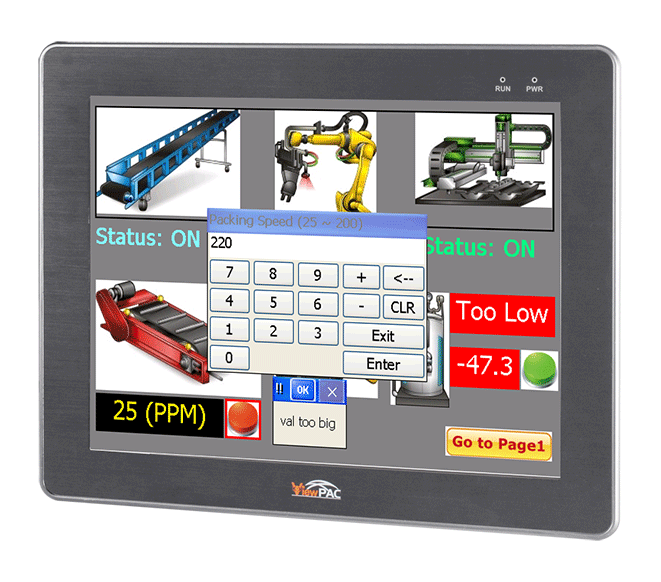

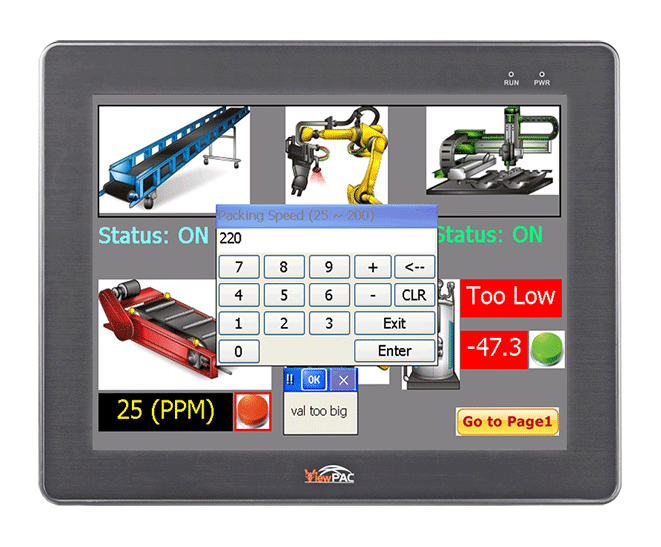

VP-6238-CE7
15" Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots
Features
- 15" TFT LCD
- Cortex-A8 CPU (32-bit & 1 GHz)
- Windows CE.NET 7.0 Inside
- Embedded Win-GRAF SoftLogic (IEC 61131-3)
- Hard Real-Time Capability
- 3 Slots for High Profile I/O Modules
- IP65 Compliant Front Panel
- Modbus RTU/TCP (Master, Slave)
- Support eLogger HMI
- Audio with Microphone-In and Earphone-Out
- Operating Temperature: -20°C ~ +70°C
Introduction
The Win-GRAF ViewPAC with I/O slot Series (VP-1238-CE7, VP-4238-CE7, VP-6238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS.
Each PAC is equipped with a Cortex-A8 CPU (32-bit & 1 GHz) running a Windows CE 7.0 operating system, a variety of input/output ports (USB, Ethernet, RS-232/485), 3 I/O slots that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series), and a 5.7”/10.4”/15” TFT LCD with a rubber keypad.
The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.
Specifications
Software | |
OS | Windows CE.NET 7.0 |
Protocol |
|
Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
Framework Support | .Net Compact Framework 3.5 |
Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
Main Unit | |
CPU | Cortex-A8 (32-bit and 1 GHz) |
64-bit Hardware Serial Number | Yes |
System Memory | 512 MB SDRAM, 256 MB Flash |
Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
Storage | A SD/microSD adapter and 4 GB microSD card (up to 32 GB) |
Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
Watchdog Timer | Dual Watchdog Timer |
Display | |
Type | LCD |
Size | 15" (4:3) |
Backlight Life | 50,000 hours |
Brightness | 400 cd/m2 |
Resolution | 1024 x 768 |
Touch Panel | 5-wire, resistive type; light transmission: 80% |
LED Indicators | |
Status | 1 x System, 1 x Power |

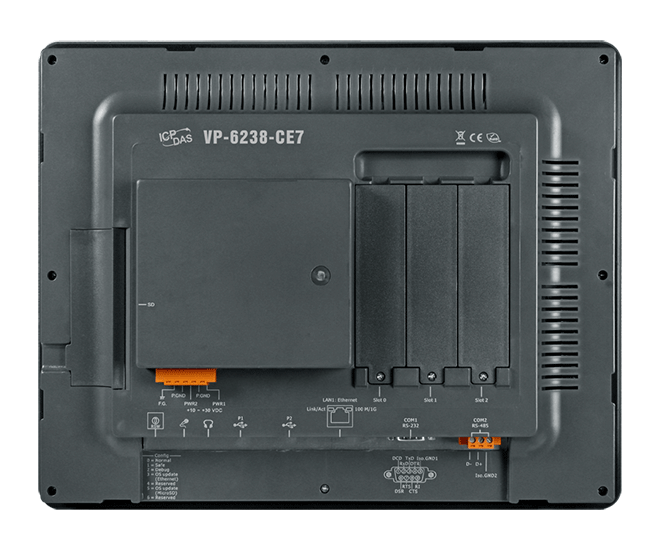

I/O Expansion | |
I/O Type | I-8K, I-87K series |
Slots | 3 |
COM Ports | |
Ports | 1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
HMI | |
Rotary Switch | 1 x 10 Position (0 ~ 9) |
Buzzer | Yes |
Audio | |
Cable | Microphone-In and Earphone-Out |
Ethernet | |
Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
USB | |
Ports | 2 x USB 2.0 |
Power | |
Input Range | +10 VDC ~ +30 VDC |
Redundant Power Inputs | Yes |
Consumption | 0.45 A @ 24 VDC |
Mechanical | |
Casing | Plastic |
Dimensions (mm) | 293 x 229 x 129 (W x L x H) |
Panel Cut-Out (mm) | 276 x 214, ±1 (W x H) |
Installation | Panel mounting |
Weight | 3.6 Kg |
Ingress Protection Rating | Front panel: NEMA 4/IP65 |
Environmental | |
Operating Temperature | -20 ~ +70°C |
Storage Temperature | -30 ~ +80°C |
Humidity | 10 ~ 90% RH, Non-condensing |
