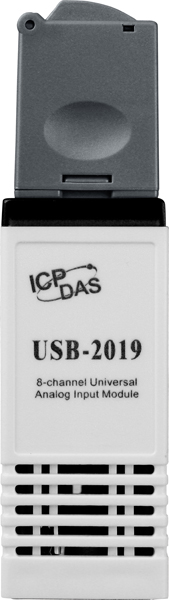

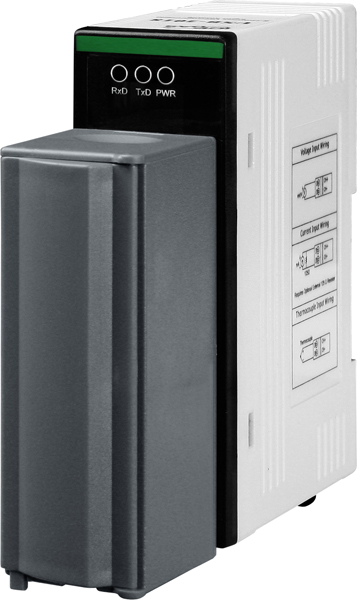

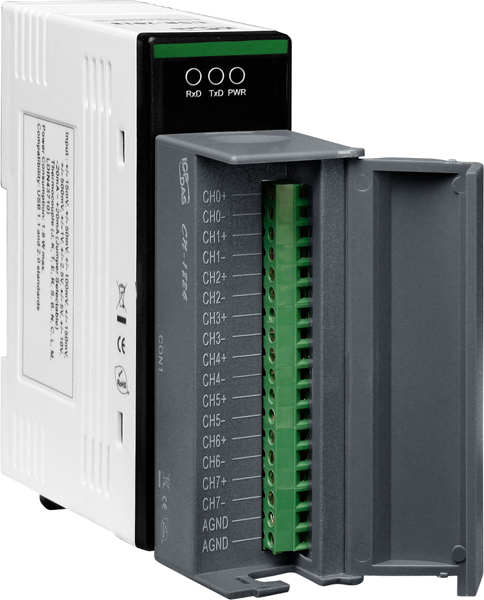

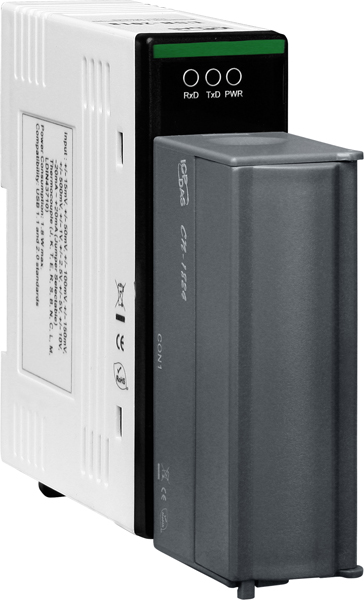

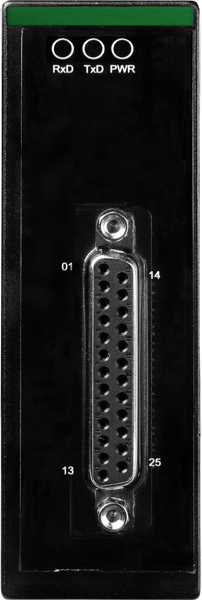

USB-2019/S
USB 8 Channel Universal Analog Input Data Acquisition Module. Supports Current Input, Voltage Input, and Thermocouple Input types. Includes CN-1824. Has operating temperature ranges of -25°C ~ +167°C (-13°F ~ +167°F).
References & Support
Features
VB/C++/C#.NET/VB.NET SDK
ICP DAS provides a SDK for USB I/O modules to help user to develop own project easily and quickly. The SDK can be supported in VB/C++/C#.NET/VB.NET to fulfill project development.
Compare with traditional PC-based I/O card, it is waste of time to open chassis and configure I/O board and it is not easy to move PC. USB-2019 is new solution for data acquisition in USB interface provided by ICPDAS. The advantage of USB-2019 is acquiring data easily and quickly due to the plug-and-play benefit from USB interface.
USB-2019 is an 8-channel universal analog input module with USB interface. Each channel provides over-voltage protection of up to 240Vrms or 250VDC. USB-2019 provides various input type, it has voltage input type from +/-15mV to +/-10V, and current input type can be either 0~20, 4~20 or +/-20 mA, it also provides widely thermocouple devices J, K, T, E, R, S, B, N, C, L, M and LDIN43710 support. USB-2019 is special designed product for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design. This module also features per-channel open wire detection for thermocouple and 4 ~ 20 mA inputs. The application fields can be building automation, factory automation, machine automation, data acquisition and control, environment control and monitoring, laboratory equipment & research, etc.
- 8 Differential Universal Analog Input Channels
- 4kV ESD protection
- Wide Operating Temperature Range
- 240 Vrms Overvoltage Protection
- 3000 VDC Intra-Module Isolation
- USB 2.0 Full-Speed
- USB Bus Powered
- Lockable USB cable
- Driver Free
Applications
- Building automation
- Factory automation
- Machine automation
- Data acquisition and control
- Environment control and monitoring
- Laboratory equipment & research
Software
USB-2K Utility
USB-2K Utility provides a simple way to easily test and instant acquire data for all ICP DAS USB IO series modules without programming.
- USB module configuration
- I/O configuration
- Log Data analysis
- Easy to test
Specifications
| Input | |
| Channels | 8 differential |
| Input Type | Voltage : +/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V |
| Current : +/-20 mA, 0 ~ +20 mA, +4 ~ +20 mA (External resistor is required) | |
| Thermocouple : J, K, T, E, R, S, B, N, C, L, M and LDIN43710 | |
| Resolution | 16 bit |
| Accuracy | +/-0.1% FSR |
| Sampling Rate | 10 Hz (Total) |
| Zero Drift | 0.5 μV/°C |
| Span Drift | +/-25 ppm/°C |
| Common Mode Rejection | 150 dB Min. |
| Normal Mode Rejection | 100 dB |
| Input Impedance | Voltage input: > 200 kΩ, Current input: 125Ω |
| Intra-Module Isolation, Field-to-Logic | 3000 VDC |
| Overvoltage protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes (Software programmable) |
| Communication | |
| Interface | USB 2.0 Full-Speed |
| Watchdog | 1 Hardware watchdog (1.6 second) |
| 1 Software watchdog (Programmable) | |
| LED Indicators | |
| System LED Indicators | 3 LED as Power, Run and Error |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal |
| 8 kV air for random point | |
| Mechanical | |
| Dimensions (W x L x H) | Body: 33 mm x 78 mm x 107 mm |
| CN-1824: 29 mm x 43 mm x 83mm | |
| Environmental | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +85°C |
| Humidity | 10 ~ 95% RH, non-condensing |
| Power | |
| Power Consumption | Maximum: 1.45 W |
| Thermocouple Type | Range°C |
| J | -210~ +760 |
| K | -270~+1372 |
| T | -270~+400 |
| E | -270~+1000 |
| R | 0~+1768 |
| S | 0~+1768 |
| B | 0~+1820 |
| N | -270~1300 |
| C | 0~2320 |
| L | -200~+800 |
| M | -200~+100 |
| L2(DIN43710) | -200~+900 |
