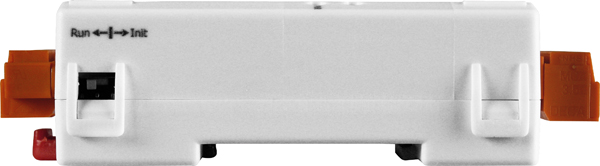

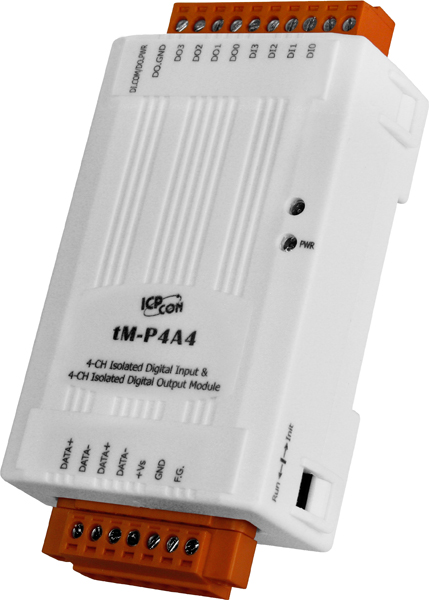

4-channel Isolated Digital Input and 4-channel Source Type Isolated Digital Output Module

tM-P4A4

4-channel Isolated Digital Input and 4-channel Source Type Isolated Digital Output Module

  Price:  $149.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

tmP4A4 PINThe tM-P4A4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocouple isolation. The tM-P4A4 supports source type output with short circuit protection, while input is sink type. All input channels can be used an 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.

  • Digital Outputs Source Type
  • Digital Inputs Sink Type
  • Photocouple Isolation
  • All Channels Can Be Used As 16-bit Counters
  • Dual Watchdog
  • Confi gusable Power-on Value Settings
  • Confi gusable Safe Value Settings
  • Cost-effective
  • Wide Operating Temperature Range: -25°C ~ +75°C

Applications

  • All kinds of On/Off Control
  • Industry Automation
  • Industrial Machinery
  • Building Automation
  • Food & Beverage Systems
  • Semiconductor Fabrication
  • Control Systems

Specifications

Communication
Interface RS-485
Format (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Baud Rate 1200 ~ 115200 bps
Protocol DCON, Modbus/RTU, Modbus/ASCII
Dual Watchdog Yes, Module (2.3 second),
Communication (Programmable)
LED Indicators
Power 1 LED as Power Indicator
Isolaiton
Intra-module Isolation,Field-to-Logic 3750 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each terminal,
±8 kV Air for random point
EFT (IEC 61000-4-4) ±4 kV for Power
Power Requirements
Reverse Polarity Protectionn Yes

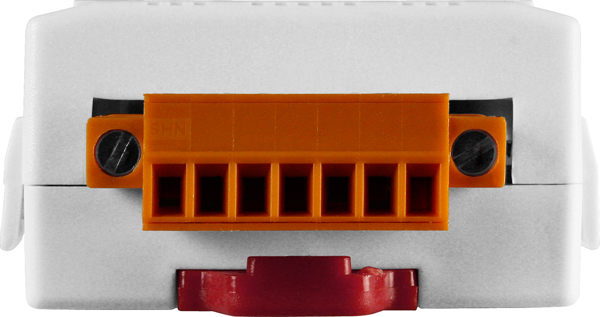

Powered from terminal block Yes, 10 ~ 30 VDC
Consumption 0.5 W max.
Mechanical
Dimensions (W x L x H) 52 mm x 98 mm x 27 mm

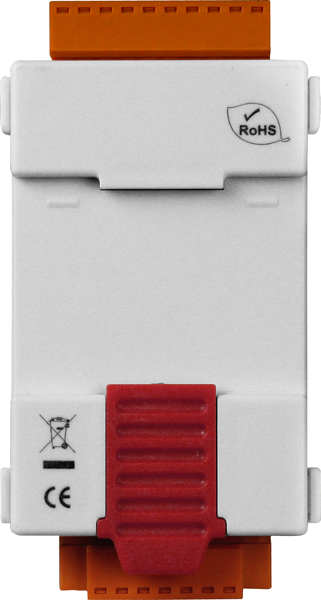

Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +75°C
Humidity 10 ~ 95% RH, non-condensing

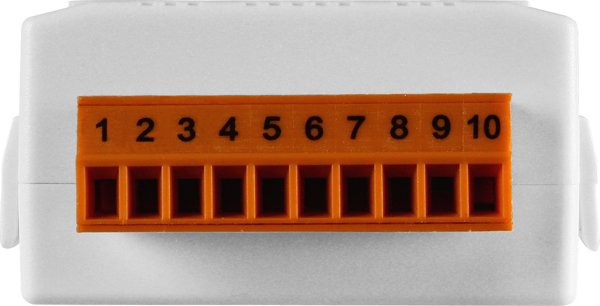

I/O Specifications

Digital Input/Counter
Input Channels 4
Type Wet Contact (Sink)
On Voltage Level +3.5 VDC ~ 50 VDC
Off Voltage Level +1 V max.
Input Impedance 10 KΩ, 0.66 W
Counters Channels 4
Max. Counts 65535 (16-bit)
Max. Input Frequency 100 Hz
Min. Pulse Width 5 ms
Overvoltage Protection 70 VDC
Digital Output
Output Channels 4
Type Isolated Open Collector (Source)
Max. Load Current 650 mA/channel
Load Voltage +10 VDC ~ +40 VDC
Overvoltage Protection 47 VDC
Overload Protection Yes
Short-circuit Protection Yes
Power On Value Yes, Programmable
Safe Value Yes, Programmable

References and Support

Customer Reviews (0)

Be the first to leave a review.

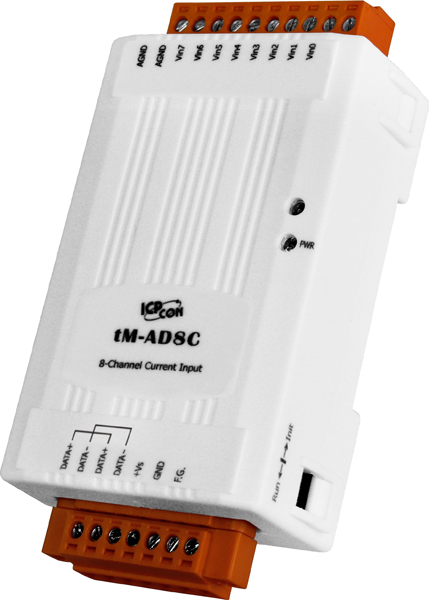

Recently Viewed Items

×
