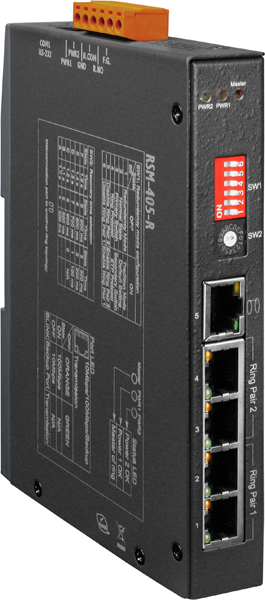

RSM-405R
5-Port Real-time Redundant Ring Switch for Railway Standards. 10/100 Base-T(X) Ethernet connectivity with auto-negotiation speed. Has a DIN rail mount and supports operating temperatures of -30°C ~ 75°C (-22°F ~ 167°F).
Features
RSM-405-R is a 5-port Real-time industrial-grade switch that was designed specifically to meet Railway Standards. It has 10/100 Base-T(X) Ethernet connectivity with auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection. It has a din rail mount. Solid industrial-grade design assures reliable operation in common application areas like: railway applications, semi-conductor factories, inventory control environments, assembly lines, manufacturing and many more. It supports an operating termperature range of -30°C ~ 75°C. It meets EMC Emission, Immunity and Vibration standards. This permits them to be functional in very harsh environments.
Specifications

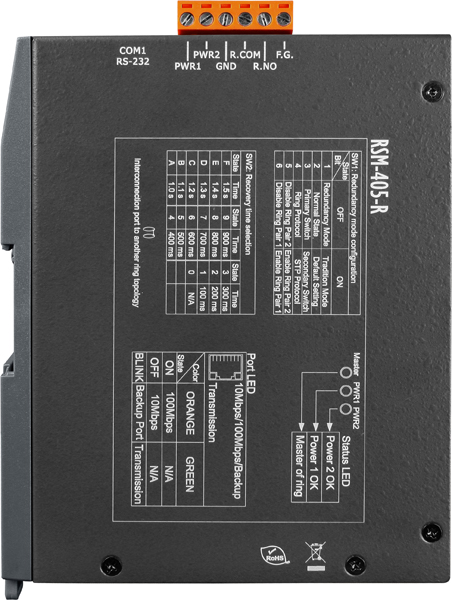

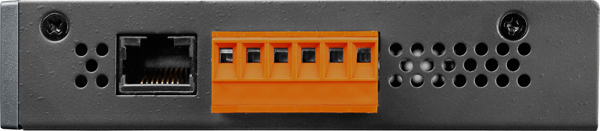

Specifications | |
Technology | |
Standards | IEEE 802.3, 802.3u, 802.3x |
Processing Type | Store & forward |
MAC Addresses | 1024 |
Memory Bandwidth | 3.2 Gbps |
Frame buffer memory | 512 Kbit |
Flow Control | IEEE802.3x flow control, back pressure flow control |
Interface | |
RJ45 ports | 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
Dielectric I/O to Frame | 1500 VDC 1 minute |
MMI (Man Machine Interface) | |
LED Indicators | Master, Power, 10/100M, Link/Act |
Rotary Switch | Recovery time setting |
DIP Switch | Switch configuration |
Redundant Power Input | |
Input Voltage Range | +12 ~ +48 VDC |
Power consumption | 0.3A@24 VDC |
Reverse polarity protect | Yes |
Dielectric I/O to Frame | 1500 VDC 1 minute |
Connection | 5-Pin Removable Terminal Block(5.08mm) |
Mechanical | |
Case | Metal |

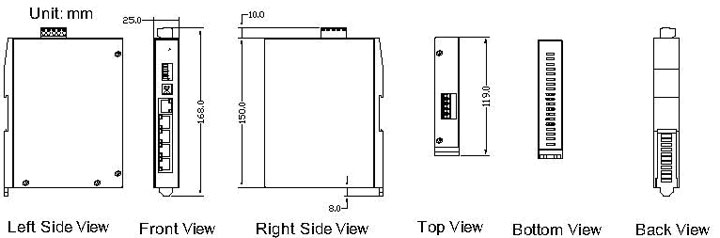

Dimensions | 25 mm x 168 mm x 119 mm (W x L x H) |
Installation | DIN-Rail |
Temperature/Humidity | |
Operating Temperature | -30 ~ +75°C; Cooling Test (IEC 60571), Dry Heat Test (IEC 60571) |
Storage Temperature | -40 ~ +85°C |
Ambient Relative Humidity | 10% ~ 90% HR, non-condensing |
EMC Emission | |
Conducted Emissions | EN 50121-3-2, EN55011 |
Radiated Emissions | EN 50121-3-2, EN55011 |
EMC Immunity | |
Electrostatic Discharge | EN 50121-3-2, IEC61000-4-2 |
Radiated, Radio-Frequency, Electromagnetic Field | EN 50121-3-2, IEC61000-4-3 |
Electrical Fast Transient/Burst | EN 50121-3-2, IEC61000-4-4 |
Surges | EN 50121-3-2, IEC61000-4-5, IEC 60571 |
Conducted Disturbance Induced by Radio-Frequency Field | EN 50121-3-2, IEC61000-4-6 |
Vibrations | |
Random Vibration test | IEC 61373 |
Shock Testing | IEC 61373 |
