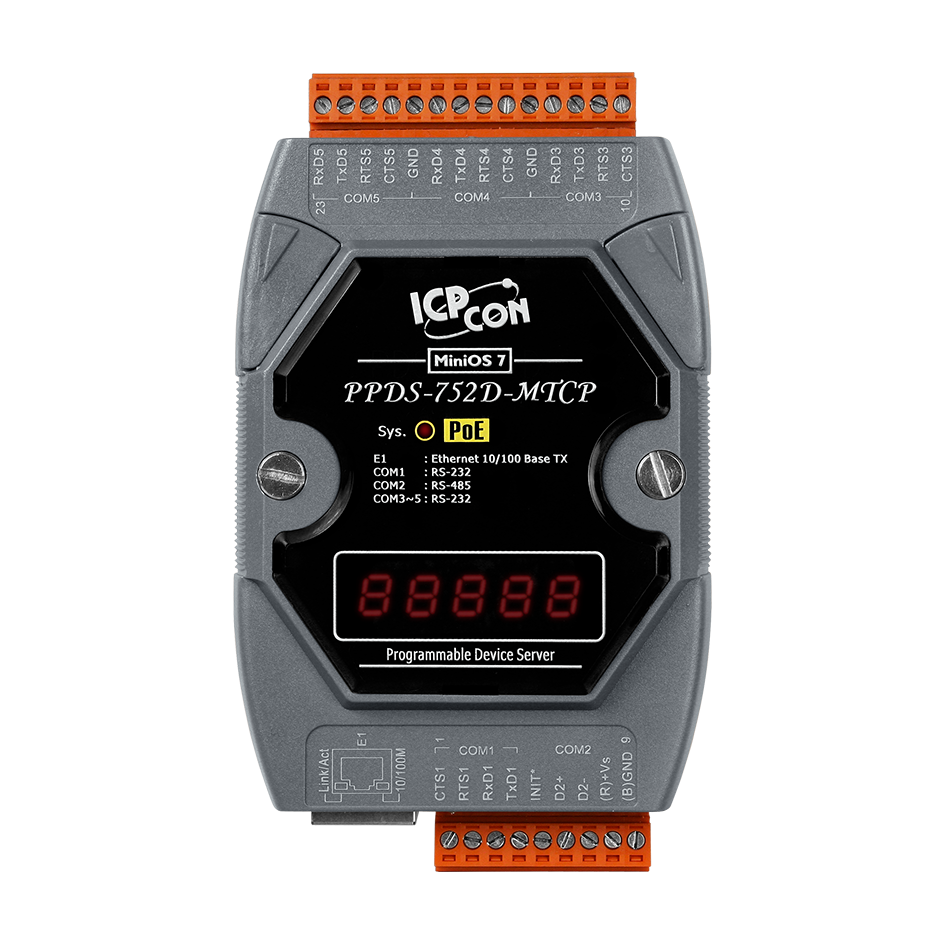

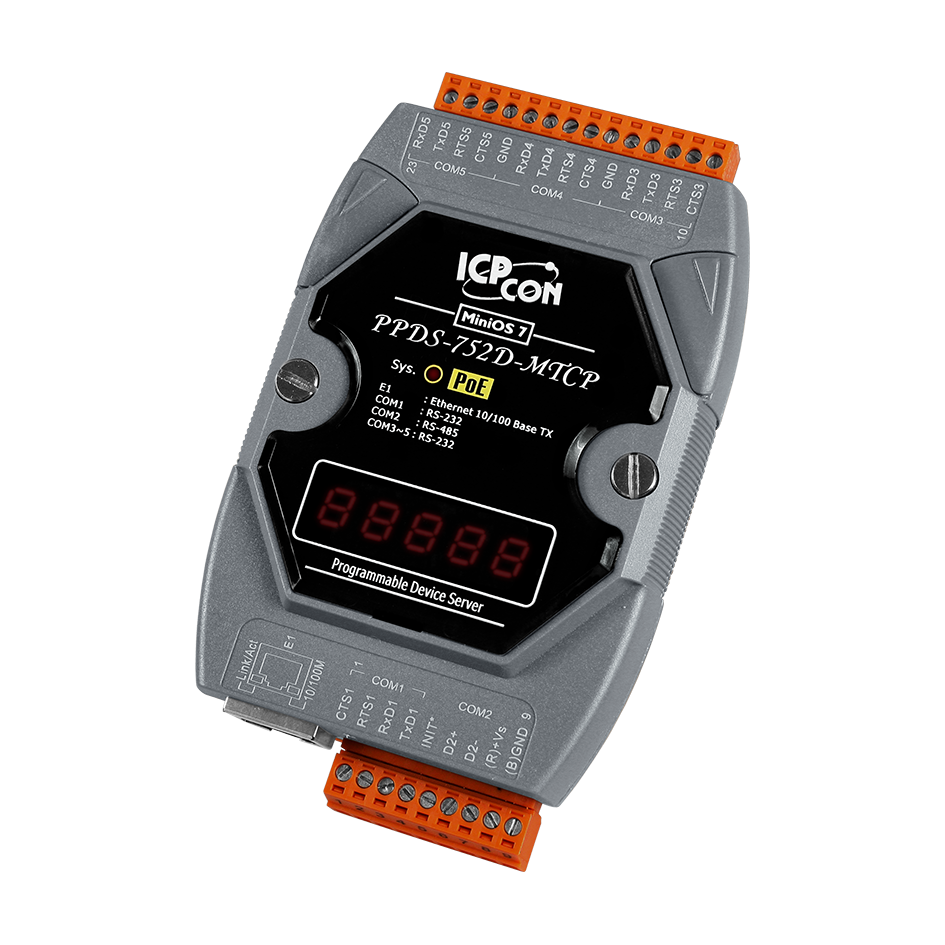

PPDS-752D-MTCP
Programmable Device Server with PoE, Modbus Gateway, 4 RS-232 ports and 1 RS-485 port and an LED Display (RoHS) Includes One CA-0910 Cable
Features
-MTCP-app-diagram.png)
The PPDS-752D-MTCP is part of a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PPDS-752D-MTCP is able to meet the demands of every network-enabled application.
The PPDS-752D-MTCP includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PPDS-752D-MTCP up in just one second and gives you fastest responses. It also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.
The PPDS-752D-MTCP features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDSM-752D-MTCP is the PPDS-752D-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection.
The PDS(M)-752(D) and PPDS(M)-752(D)-MTCP is equipped with 4 RS-232 ports and 1 RS-485 port. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
Specifications
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power/PoE 5 x digit 7 Segment |
| COM Ports | |
|---|---|
| Ports | 4 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM5 |
| Stop Bit | 1, 2: for COM1 ~ COM5 |
| Node Address | 254 (max.) |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| Power | |
|---|---|
| Consumption | 2.9 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 C |
| Storage Temperature | -40 ~ +80 C |
| Humidity | 5 ~ 90% RH, non-condensing |
