PISO-P8SSR8DC

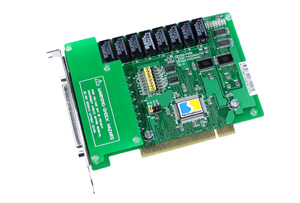

Isolated 8 Digital Input and 8 Relay Output Board. Includes CA-4002 D-Sub connector.
Features
The PISO-P8R8 is an 8-channel isolated input/output interface board for the PCI-Bus computers.The PISO-P8R8 provides 8 electromechanical relay outputs and 8 optically isolated inputs, while PISO-P8SSR8AC and PISO-P8SSR8DC can be used in various applications including contact closure, external-voltage sensing,external-switch sensing and loading switching and designed for one 37-pin D-Sub connector.It can be installed in a 5V PCI slot and can support true "Plug & Play" |
||
Software
|
Specifications
AC Type SSR Output (PISO-P8SSR8AC)
DC Type SSR Output (PISO-P8SSR8DC)
Environmental
- Contact rating:
- AC:24~ 265Vrms @1.0Arms
- Max. Load current 1.0Arms
- Min. Load current 10mArms
- Max. off-state leakage current
- 0.75mA(at 100Vrms 60Hz)
- 1.50mA(at 200Vrms 60Hz)
- 1 Cycle surge current : 50A(60Hz)
- Max. on-state voltage drop:1.2Vrms
- Surge strength: 4,000Vac
- Relay on time (Max.): 1ms
- Insulation resistance: 1,000M Ohm min. at 500Vdc
- Life time : long life, maintenance free
DC Type SSR Output (PISO-P8SSR8DC)
- Contact rating:
- DC:3~ 30Vdc @1.0A
- Max. Load current 1.0A
- Min. Load current 10mA
- Max. off-state leakage current 0.1mA(at 30Vdc)
- 1 Cycle surge current : 3A (10ms)
- Max. on-state voltage drop:1.2Vdc
- Surge strength: 4,000Vac
- Relay on time (Max.): 1ms
- Relay off time (Min.): 1ms
- Insulation resistance: 1,000M Ohm min. at 500Vdc
- Life time : long life, maintenance free
Inputs
- Type : None- polarized opto-isolated (PC-814)
- Input voltage : AC/DC 5-24V or Vac (50- 1khz)
- Input impedance : 1.2 Kohm
- Response time : 20uSec (With out filter,with filter)
- Isolated : 500v channel-channel/channel - group
Environmental
- Operation Temperature : 0° to 50°C
- Storage Temperature : -20°C to 70°C
- Humidity : 0 to 90% none-condensing
- Dimensions : 180mm x 105 mm
