Universal PCI Board with 24 channels of Digital I/O Board.  Replacement product for DIO-24.

PIO-D24U

Universal PCI Board with 24 channels of Digital I/O Board. Replacement product for DIO-24.

  Price:  $159.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

Isolated Input

PIOD24isolatedinput

The PIO-D24U/D56U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement and the new PIO-D24U/D56U card is designed as completely compatible for the PIO-D24/D56.

The PIO-D24U/D56U supports 3.3 V/5 V PCI Bus; the PIO-D24/D56 supports 5 V PCI Bus. The PIO-D24/D56/D24U/D56U consists of three 8-bit bi-direction ports. The 8-bit ports are named as port A (PA), port B (PB) and port C (PC) respectively. All ports are configured as inputs upon power-up or reset. In additional, the PIO-D56/D56U provides the 16-bit digital inputs and 16-bit digital outputs.

The PIO-D24U/D56U also improves a Card ID switch and pull-high/ pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID in software when using two or more PIO-D24U/56U cards in one computer. The pull-high/ pull-low resisters can determine the DI status; when the DI channels are unconnected, the DI status will hold in high or low status other than floating.

The PIO-D24/D56/D24U/D56U supports the OS that include Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, Vista 32-Bit and Windows 7 32-bit. It also provides the DLL and Active X control to help user who implement the product. This sample program have Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabView to help user more fast to compose.

Features

  • Support the +5 V PCI bus for PIO-D24/D56
  • Support the +3.3/+5 V PCI bus for PIO-D24U/D56U
  • Up to 56/24(PIO-D56/PIO-D24) channels of digital I/O
  • Bi-direction programmable I/O ports under software control
  • All I/O lines buffered on the board
  • Eight-bit groups independently selectable for I/O on 24-bit port
  • Double side SMD, short card.

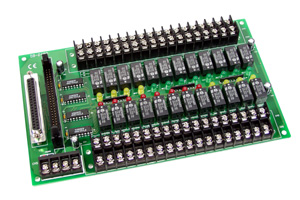

  • Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards
  • 4 interrupt sources: PC0,PC1,PC2,PC3

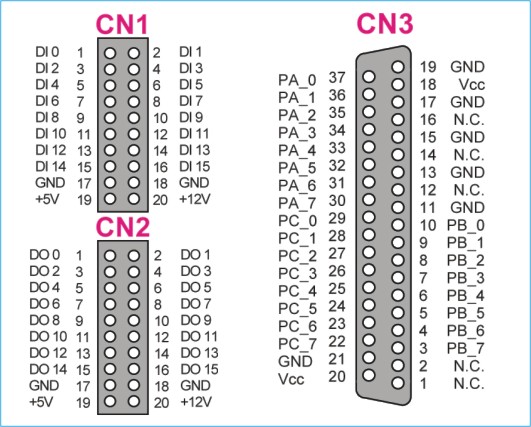

  • One DB37 connector, two 20-pin headers(only for PIO-D56/D56U)
  • Automatically detected by windows 95/98/NT
  • No base address or IRQ switches to set
  • DIO response time is about 0.77 £gs (1.3 MHz max.)

Software

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit Windows XP/2003/Vista and 32-bit Windows 7.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included.
  • LabVIEW toolkit for Windows.
  • Driver for Linux and DasyLab.

Specifications

Models PIO-D24 PIO-D24U PIO-D56 PIO-D56U
Programmable Digital I/O
Channels 24
Digital Input
Digital Input Channels N/A 16
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 1.2 MHz (Typical)
Digital Output
Digital Output Channels N/A 16
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 64 mA @ 0.8 V
Source: 32 mA @ 2.0 V
CON1: Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
CON3: Sink: 64 mA @ 0.8 V
Source: 32 mA @ 2.0 V
Response Speed 1.2 MHz (Typical)
General
Bus Type 5 V PCI, 32-bit, 33 MHz 3.3 V/5 V Universal PCI, 32-bit, 33 MHz 5 V PCI, 32-bit, 33 MHz 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Card ID No Yes(4-bit) No Yes(4-bit)
I/O Connector Female DB37 x 1 Female DB37 x 1
20-pin box header x 2
Dimensions (L x W x D) 143 mm x 105 mm x 22 mm
Power Consumption 420 mA @ +5 V 580 mA @ +5 V
Operating Temperature 0 ~ 60 ¢XC
Storage Temperature -20 ~ 70 ¢XC
Humidity 5 ~ 85% RH, non-condensing
