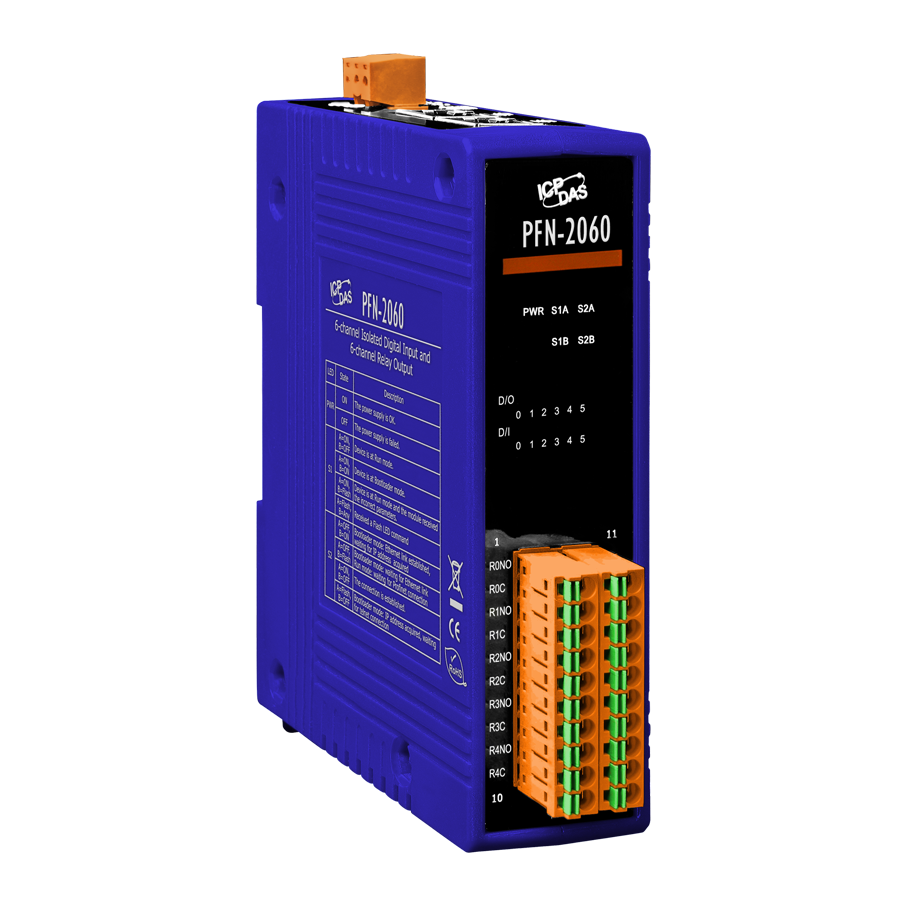

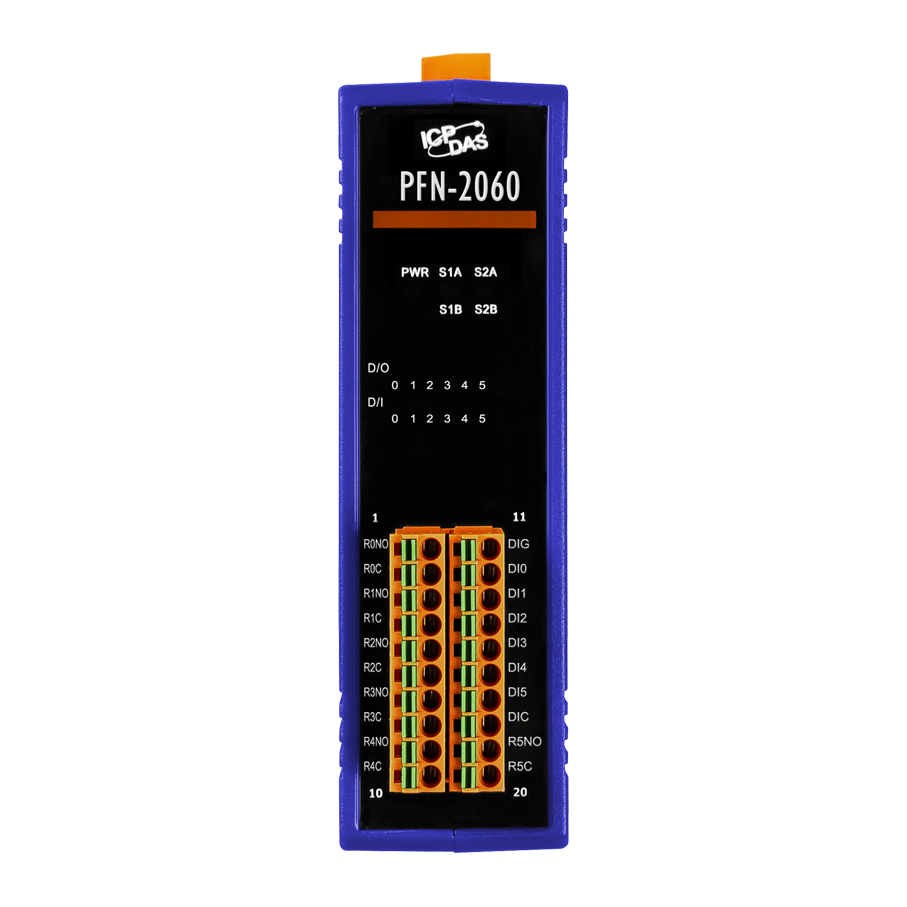

PFN-2060
PROFINET I/O Module, Communicable Over Ethernet, Supports Operating Temperatures from -25°C ~ +75°C (Isolated 6-Channel Digital Input & 6-Channel Relay Output).
Features
The PFN-2060 PROFINET IO device has 6 isolated digital inputs, 6 relay outputs, and is suitable for industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
Applications
|
Features
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- Support Power-ON Value & Safe Value
- DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
Utility
ICP DAS provides the PFN_Tool configuration utility to configure devices.
- Provide device search function
- Show firmware version
- Support network parameters configuration
- Settings for power-on value and safe value

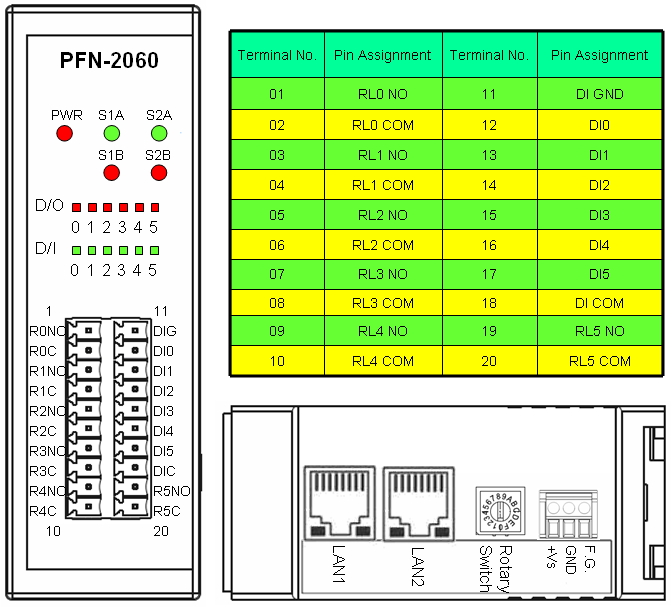

Specifications

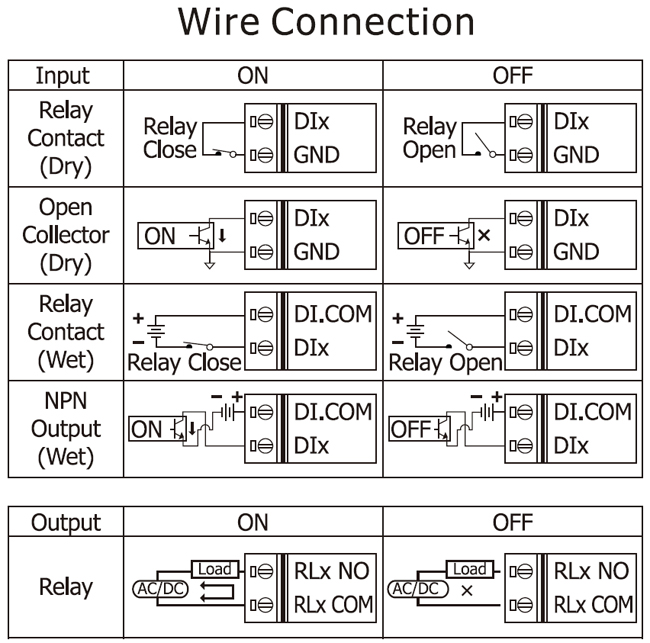

Hardware | |
CPU | 32-bit CPU Core |
RAM/Flash/EEPROM | 32 MB / 4 MB / 8 KB |
Watchdog | CPU built-in |
ESD Protection | 4 kV class B |
PROFINET Interface | |
Protocol | PROFINET IO Device |
Conformance Classes | Class B |
Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
Cycle Time | 1 ms (min) |
Ethernet Interface | |
Controller | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
Connector | RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch |
Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
Digital Input | |
Channels | 6, Dry Contact: Source, Wet Contact: Sink or Source |
Dry Contact Level | Off Voltage Level : Open, On Voltage Level : Close to GND |
Wet Contact Level | Off Voltage Level : +4 VDC max., On Voltage Level : +10 VDC to +50 VDC |
Digital Output | |
Channels | 6, Power Relay, Form A x 6 |
Contact Rating | AC: 125 V@0.6A DC: 30V@2A, 110V@0.6A |
Operating Time | 3 ms |
Release Time | 2 ms |
Total Switching Time | 10 ms |
Surge Strength | 500 VAC (50/60 Hz) |
Insulation resistance | 1000 MW min. at 500 VDC |
LED | |
Round LED | PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
Power | |
Power supply | Unregulated +10 ~ +30 VDC |
Protection | Power reverse polarity protection, Over-voltage brown-out protection |
Power Consumption | 4.5 W |
Mechanism | |
Installation | DIN-Rail |
Dimensions | 33 mm x 107 mm x 126 mm (W x L x H) |
Environment | |
Operating Temp. | -25 ~ 75 ℃ |
Storage Temp. | -30 ~ 80 ℃ |
Humidity | 10 ~ 90% RH, non-condensing |
