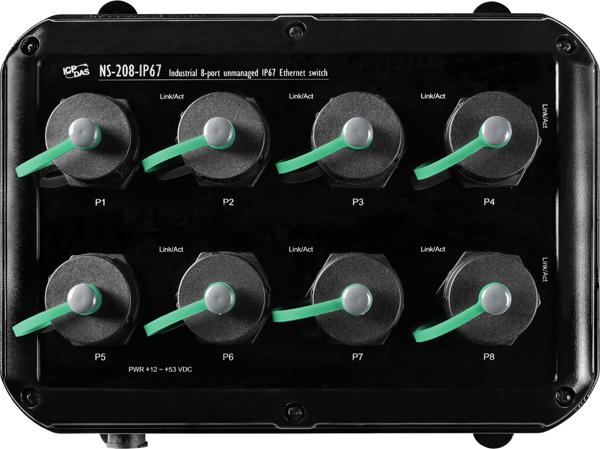

NS-208-IP67
Unmanaged 8-Port Industrial Ethernet Switch with IP67 casing. Automatic MDI/MDI-X crossover for plug-and-play. Full duplex IEEE 802.3x and half duplex backpressure flow control. Has operating temperature range of -10°C ~ +60°C (14°F ~ 140°F)
Features
The NS-208-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock. It has 8 fast Ethernet with 8 IEEE 802.3af compliant ports.
The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
- Automatic MDI / MDI-X crossover for plug-and-play
- Each port supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 1.4 Gbps high performance memory bandwidth
- Integrated look-up engine with dedicated 1 K unicast MAC addresses
- Supports +10~+30Vdc voltage with 1KV isolation Reverse Polarity Protection
- Supports operating temperatures from -40 ~ +80°C
- Plastic casing with IP67
Specifications
Technology | |
Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
Processing Type | Store & forward; wire speed switching |
MAC Address | 1024 |
Memory Bandwidth | 2 Gbps |
Frame Buffer Memory | 512 Kbit |
Flow Control | IEEE 802.3x flow control, back pressure flow control |
Interface | |
LED Indicators | PWR, Link/Act |
Ethernet Isolation | 1500 Vrms 1 minute |
Connection | Rugged RJ-45 |
Power Input | |
Input Voltage Range | +12 ~ +53 VDC |
Power consumption | 0.12 A @ 24 VDC |
Protection | Power reverse polarity protection |
Connection | IP67 PWR Plug |
Mechanical | |
Case | Plastic |
Flammability | UL 94V-0 materials |
Environmental Rating | IP67 for Operating Temperature -10°C~ +60°C (+14°F ~ +140°F) |
IP66 for Operating Temperature -40°C~ +80°C (-40°F ~ +176°F) | |
Dimensions (W x L x H) | 85mm x 126mm x 75.5mm (W x H x D) |
Installation | Wall Mounting |
Environmental | |
Operating Temperature | |
-10°C ~ +60 °C (+14°F ~ +140°F) (Protection rating IP67) |
|
Storage Temperature | -10°C ~ +60 °C (+14°F ~ +140°F) (Protection rating IP67) |
Ambient Relative Humidity | 100% RH for Operating Temperature -10°C ~ +60°C (+14°F ~ +140°F) 10% ~ 90% RH, non-condensing for Operating Temperture -40°C ~ +75°C (-40°F ~ +167°F) |
