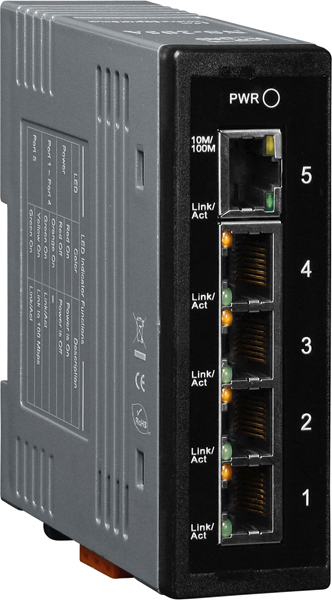

Multi-mode, SC Connector, 4-port 10/100 Mbps Ethernet with 1 Fiber port Switch, supports operating temperatures from -30 °C ~ +75 °C

NS-205AFC-T

Multi-mode, SC Connector, 4-port 10/100 Mbps Ethernet with 1 Fiber port Switch, supports operating temperatures from -30 °C ~ +75 °C

  Price:  $299.00

Features

ZB-205AFC applicationThe NS-205AF/NSM-205AF is a 4-port unmanaged Ethernet with 1 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 60 km) transmissions.

The NS-205AF/NSM-205AF provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.

  • Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Full duplex IEEE 802.3x
  • Automatic MDI/MDI-X crossover for plug-and-play
  • Store-and-forward architecture
  • Redundant dual +12 ~ 48 VDC power inputs
  • Supports operating temperatures from -30 ~ +75°C
  • DIN-Rail Mounting

Specifications

Models NS-205AF
PoE
Input Voltage Rangeg +12 ~ 48 VDC
Operating Temperature -30 °C ~ +75 °C
Casing Plastic
Installation DIN-Rail
Dimensions (W x L x H)
(Unit: mm)
31 x 127 x 157



Models NS-205AF Series
Technology
Standards IEEE 802.3, 802.3u, 802.3x
Processing Type Store & forward; wire speed switching
MAC Addresses 1024
Memory Bandwidth 2.0 Gbps
Frame Buffer Memory 512 Kbit
Flow Control IEEE 802.3x flow control
Ethernet Interface
RJ-45 Ports 10/100 Base-T(X) auto negotiation speed, Full duplex mode, and auto MDI/MDI-X connection
LED Indicators Power, Link/Act, 10/100M
Ethernet Isolation 1500 Vrms 1 minute
+/-4 kV ESD Protection Yes
Fiber Interface (100 Base-FX; SC/ST type)
Multi-Mode NS-205AFT-T/FC-T
NSM-205AFT-T/FC-T
Multi mode fiber cables: 50/125, 62.5/125 or 100/140 μm
Distance: 2 km, (62.5/125 μm recommended) for full duplex
Wavelength: 1300 or 1310nm
Min. TX Output: -20 dBm
Max. TX Output: -14 dBm
Max. RX Sensitivity: -32 dBm
Min. RX Overload: -8 dBm
Budget: 12 dBm
Single-Mode NS-205AFCS-T
NSM-205AFCS-T
Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance: 30 km, (9/125 μm recommended) for full duplex
Wavelength: 1300 or 1310nm
Min. TX Output: -15 dBm
Max. TX Output: -8 dBm
Max. RX Sensitivity: -34 dBm
Min. RX Overload: -5 dBm
Budget: 19 dBm
Single-Mode NS-205AFCS-60T
NSM-205AFCS-60T
Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance: 60 km, (9/125 μm recommended) for full duplex
Wavelength: 1300 or 1310nm
Min. TX Output: -5 dBm
Max. TX Output: 0 dBm
Max. RX Sensitivity: -35 dBm
Min. RX Overload: -5 dBm
Budget: 30 dBm
Power Input
Input Voltage Range +12 ~ +48 VDC (Redundant input)
Power Consumption 0.2 A @ 24 VDC
Protection Power reverse polarity protection
+/-4 kV ESD Protection Yes
Connector 6-Pin Removable Terminal Block
Mechanical
Casing Plastic (Flammability UL 94V-0)
Dimensions (W x L x H) 31 mm x 127 mm x 157 mm
Installation DIN-Rail
Environment
Operating Temperature -30 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Ambient Relative Humidity 10% ~ 90% RH, non-condensing
