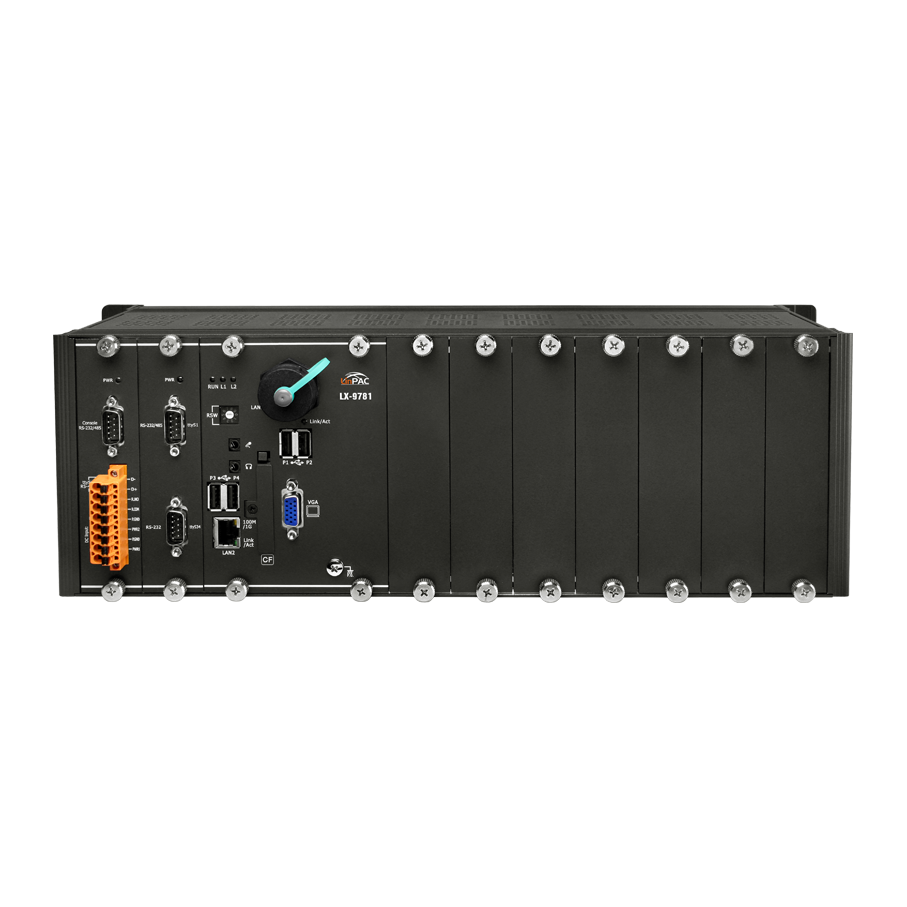

LX-9781
Linux Based PAC Programmable Automation Controller with Linux Kernel 4.14.12, E3845 CPU, Linux OS and 7 I/O Slots. Supports Operating Temperature -20C to 60C.
Features
The Linux 9000 series are Linux based Programmable Automation Controllers (PACs). The series combines computing, I/O, and operator interface into a single unit, designed for easy integration of HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K and I-97K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.
- E3845 (1.91 GHz) CPU
- Linux kernel 4.4
- Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
- 64-bit Hardware Serial Number for Software Protection
- Rich I/O Expansion Ability (RS-232/RS-485)
- 2 10/100/1000M Ethernet Ports
- Redundant Power Input
- Operating Temperature: -25 ~ +60°C
Applications
Specifications
System Software
OS
Linux kernel 4.4
Embedded Service
SFTP server, Web server, SSH
SDK Provided
LinPAC SDK (GCC based toolchain and LinPAC Libraries)
CPU Module
CPU
E3845 (1.91 GHz, quad core)
SDRAM
2 GB DDR3
MRAM
128 KB
Flash
mSATA slot with one 32 GB SSD
EEPROM
16 KB
CF
CF socket with one 16 GB CF card (support up to 32 GB)
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number
Yes, for Software Copy Protection
Dual Watchdog Timers
Yes
Programmable LED Indicator
3 (Run, L1, L2)
Rotary Switch
Yes (0 ~ 9)
VGA & Communication Ports
VGA Resolution
1280 x 1024 to 1920 x 1080 for 16:9 display; 640 x 480 to 1024 x 768 for 4:3 display
Ethernet
RJ-45, 10/100/1000M Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0
4
ttySA0
Internal communication with the high profile I-97K series modules in slots
ttyS0
RS-485 (Data+, Data-); 3000 VDC isolated
ttyS1
RS-232/485 (RxD, TxD and GND for RS-232; Data+, Data- for RS-485); 3000 VDC isolated
Console
RS-232/485 (RxD, TxD, CTS, RTS and GND for RS-232; Data+, Data- for RS-485); 3000 VDC isolated
ttyS34
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); 3000 VDC isolated
I/O Expansion Slots
7
Mechanical
Dimensions (W x L x H)
422 mm x 164 mm x 133 mm
Installation
Wall mounting/DIN-rail mounting
Environmental
Operating Temperature
-25°C ~ +60°C
Storage Temperature
-30°C ~ +80°C
Ambient Relative Humidity
10 ~ 90% RH (non-condensing)
Power
Input Range
+10 ~ +30 VDC
Isolation
1 kV
Redundant Power Inputs
Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity
4.4 A, 5 V supply to CPU and backplane, 2.2 A, 5 V supply to I/O expansion slots, 33 W in total
Consumption
20.4 W (0.85 A @ 24 VDC)
