I-7530A-MR - Modbus RTU to CAN converter

Modbus RTU to CAN converter. Converts Modbus RTU to CANbus Protocol. Supports operating temperatures between -25 to 75°C.

  Price:  $399.00

Features

i-7530a-amr applicationThe I-7530A-MR Modbus RTU to CAN converter is helpful for data exchanging between the RS-232/485/422 devices and the CAN devices. It supports three communication modes: “Normal”, “Modbus RTU”, “Pair-connection”.

In the Normal mode, the I-7530A-MR is designed to unleash the power of CAN bus via RS-232/485/422 communication method. It accurately converts ASCII format messages and CAN messages between RS-232/485/422 and CAN networks. This mode let you to communicate with CAN devices easily from any PC or programmable devices with RS-232/485/422 interface.

In Modbus RTU mode, it allows a Modbus RTU master to communicate with CAN devices on a CAN network. The following figure shows the application architecture of this mode.

In pair-connection mode, this module provides the transparent communication between the RS-232/485/422 devices via CAN bus. The application architecture may be as follows.

i-7530a-mr application 2

Applications

 Control System
• Building Automation
• Factory Automation
• Distributed data acquisition

Applications

Features

  • RoHS Design
  • Fully compatible with ISO 11898-2 standard
  • Programmable CAN bus baud rate from 10 kbps to 1 Mbps or user-defined baud rate
  • Support CAN bus acceptance filter configuration
  • Support firmware update via RS-232
  • Provide utility tool for module setting and CAN bus communication testing
  • Built-in jumper to select 120Ω terminator resistor
  • CAN buffer: 128 data frames ; UART buffer: 256 bytes
  • Power, data flow and error indicator for CAN and UART status
  • Hardware Watchdog design
  • Convert CAN message to specific ASCII command string (Normal mode)
  • Convert specific ASCII command string to CAN message (Normal mode)
  • Provide the transparent communication between the RS-232/485/422 devices via CAN bus (Pair-connection mode)
  • Support function code 0x03/0x04/0x10 of Modbus RTU command for reading and writing CAN message (Modbus RTU mode)

Utility

  • CAN bus Baud Rate configuration
  • CAN acceptance filter configuration
  • CAN 2.0A or 2.0B specific selection
  • RS-232/485/422 baud rate and data format configuration
  • RS-232/485/422 communication with checksum function selection
  • Communication mode setting
  • Easily transmit/receive CAN messages



Utility

Performance Test

RS-232/422 full-duplex communication mode
CAN setting
RS-232/422 setting
RS-232/422 command length
The max frames/sec
2.0B, 1Mbps
115200,n,8,1
27 Bytes
370
2.0B, 1Mbps
230400,n,8,1
27 Bytes
666
2.0B, 1Mbps
460800,n,8,1
27 Bytes
1250

Specifications

CAN Interface
Controller
Microprocessor inside with 96 MHz
Transceiver
NXP 82C250
Connector
9-pin male D-Sub (CAN_L, CAN_H, N/A for others)
Channels
1
Baud Rate (bps)
10 k, 20 k, 50 k, 100 k, 125 k, 250 k, 500 k, 800 k and 1 M (allow user-defined baud rate)
Protection
3000VDC power protection and 3750Vrms photo-couple isolation on CAN side
Terminator Resistor
Selectable 120Ω terminator resistor by jumper
Support Protocol
ISO-11898-2, CAN 2.0A and CAN 2.0B

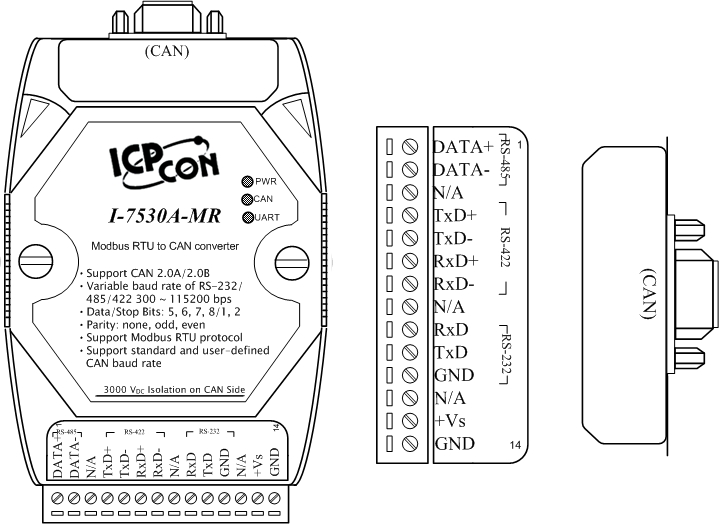

Pin Assignment
C.I.A. DS-102 (CAN_H=7, CAN_L=2)
UART Interface
Connector
14-pin terminal connector
COM
RS-232 : TxD, RxD, GND; RS-422 : TxD+, TxD-, RxD+, RxD-; RS-485 : DATA+, DATA-
Baud Rate (bps)
300,600,1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
Protection
3000VDC power protection and 2500Vrms photo-couple isolation on UART side
LED
Round LED
PWR/CAN/UART
Power
Power supply
+10 ~ +30 VDC
Power Consumption
1.5 W
Dip Switch
Init (Firmware Update, Module Configuration)/Normal (Firmware Operation)
Mechanism
Installation
DIN-Rail
Dimensions
72mm x 118mm x 35mm (W x L x H)
Environment
Operating Temperature
-25 ~ 75 ℃
Storage Temperature
-30 ~ 80 ℃
Humidity
10 ~ 90% RH, non-condensing
