ET-7028

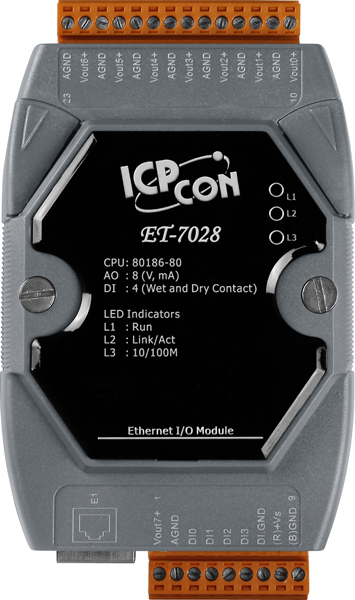

Remote Ethernet I/O Module with 8-channel Analog Output. Supports AO types of +0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC +0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable). Communicable over Modbus TCP and UDP. Supports operating temperatures between -25°C ~ 75°C (-13°F ~ 167°F) and has a din rail mount.
Features
The ET-7028 is a multifunctional module with 8-channel analog output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper. The ET-7028/PET-7028 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.
- Built-in Web Server
- Web HMI
- Support Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C (-13F ~ 167F)
- I/O Pair Connection
- Built-in I/O
Specifications
Software | |
Built-In Web Server | Yes |
Web HMI | Yes |
I/O Pair Connection | Yes |
Communication | |
Ethernet Port | 1 x RJ-45, 10/100 Base-TX |
PoE | - |
Protocol | Modbus/TCP, Modbus/UDP |
Security | ID, Password and IP Filter |
Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) |
LED Indicators | |
L1 (System Running) | Yes |
L2 (Ethernet Link/Act) | Yes |
L3 (DI/DO status) | Yes |
PoE Power | - |
2 Way Isolation | |
Ethernet | 1500 VDC |
I/O | 2500 VDC |
EMS Protection | |
ESD (IEC 61000-4-2) | 4 kV Contact for Each Terminal and 8 kV Air for Random Point |
Surge (IEC 61000-4-5) | +/-3 kV for Power |
Power Requirements | |
Reverse Polarity Protection | Yes |
Powered from Terminal Block | Yes, 10 ~ 30 VDC |
Powered from PoE | - |
Consumption | 6 W |
Mechanical | |
Dimensions (W x L x H) | 123 mm x 72 mm x 35 mm |
Installation | DIN-Rail or Wall mounting |
Environmental | |
Operating Temperature | -25 °C ~ +75 °C |
Storage Temperature | -30 °C ~ +80 °C |
Humidity | 10 ~ 90% RH, non-condensing |
I/O Specifications
Analog Output | |||
Channels | 8 | ||
Sensor Type | +0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC +0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable) |
||
Individual Channel Configuration | Yes | ||
Resolution | 12-bit | ||
Accuracy | +/-0.1% of FSR or better | ||
Voltage Output Capability | 10 V @ 10 mA | ||
Current Load Resistance | 500 Ω | ||
Open Wire Detection | Yes, for 4 ~ 20 mA only | ||
Power-on Value | Yes, Programmable | ||
Safe Value | Yes, programmable |
