ECAT-2512
ECAT 2512 is an 1 IN; 2-OUT EtherCAT Junction Slave Module (RoHS) +12 ~ +48 VDC Power Range. Has operating temperature of -25° ~ +75°C (-13°F ~ 167°F). This product is phased out and is replaced by ECAT-2513.
Features
The ECAT-2512 has officially been phased out and will no longer be available. It has now been replaced by ECAT-2513.
ECAT 2512 is an 1 IN; 2-OUT EtherCAT Junction Slave Module (RoHS) +12 ~ +48 VDC Power Range. Has operating temperature of -25° ~ +75°C (-13°F ~ 167°F).- Powerful MCU handles efficient network traffic
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain and star connection
- EtherCAT conformance test tool verified
- ESD Protection 4 KV Contact for each port
Applications

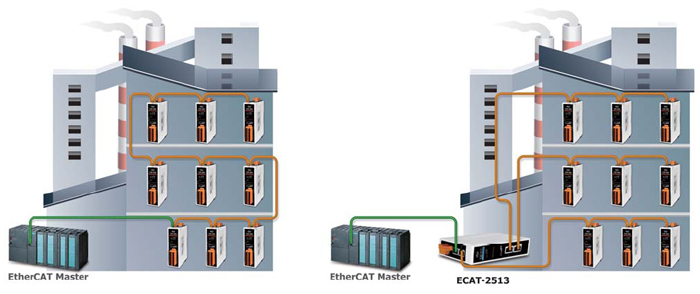

Benefit 1: Translate Daisy-chain to Branch Topology
EtherCAT junction slaves can realize branch topology. They make the cabling easier than daisy-chain topology.

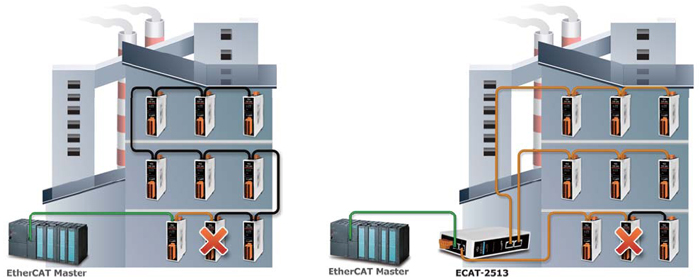

Benefit 2: Improving the Debugging Efficiency
If a slave device is not working or the cable is disconnected, the following slave devices on the same network all not communicate with the master controller.
With EtherCAT junction slaves, all slave devices can be wired as separated sections. If one slave device is failed, only the slave devices on the same section will be influenced. The EtherCAT junction slave keeps the slave devices on another section communicate with the master controller. Debugging can be made separately, thus improving the debugging efficiency.
Specifications
| Protocol | |
| EtherCAT | |
| Communication Interface | |
| No. of ports | RJ-45 x 3 (1 IN; 2-OUT) |
| No. of nodes | 1 |
| Data Transfer Medium | Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Distance between Stations | Max. 100 m (100BASE-TX) |
| Power Input | |
| Redundant Input Range | +12 ~ +48 VDC |
| Power Consumption | 0.06 A @ 24 VDC |
| Protection | Power reverse polarity protection |
| Connector | 3-Pin Removable Terminal Block (5.08mm) |
| Mechanism | |
| Dimensions | 110mm x 90mm x 33mm (H x W x D) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 °C ~ + 75 °C |
| Storage Temperature | -30 °C ~ + 80 °C |
| Ambient Relative Humidity | 10 ~ 90% RH, non-condensing |
