144-Bit OPTO-22 DIO ISA Board with 144 TTL Digital I/O Lines and Software Development Kit.  Can be used to Control Relays and LED's.  Has 2 input lines for interrupts.  Supports operating temperatures from 0 ~ 60 °C.

DIO-144

144-Bit OPTO-22 DIO ISA Board with 144 TTL Digital I/O Lines and Software Development Kit. Can be used to Control Relays and LED's. Has 2 input lines for interrupts. Supports operating temperatures from 0 ~ 60 °C.

  Price:  $239.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The DIO-144 has officially been phased out and will no longer be available. It has now been replaced by PIO-D144U and PEX-D144LS.

program applicationThe DIO-144/96 provides 144/96 TTL digital I/O lines. The DIO-144/96 emulates 8255 mode 0 and has an increased output current of 15 mA (source) and 64 mA (sink) , allowing it to control LED, relay, etc. The DIO-144/96 consists of eighteen 8 bit bi-directional ports and 2 input lines for interrupt enable and interrupt. The 8 bit ports are named port A(PA),port B(PB) and port C(PC). The port C can be split into two four bit. All port are configured as inputs upon power-up or reset. The DIO-144/96 uses 4 consecutive I/O locations in I/O addressing space. The base address is selectable from 200 to 3FF hex. The interrupt signal can be connected to any of the interrupt levels 2 through 15.

Features

  • Double side SMT , short card, power saving
  • DIO-144 : 144 digital I/O lines
    DIO-96 : 96 digital I/O lines
  • Emulate 8255 mode 0 (Basic Input / Output mode)
  • Buffer output for higher driving capability than 8255
  • Register compatible to 722 series
  • Programmable interrupt handling

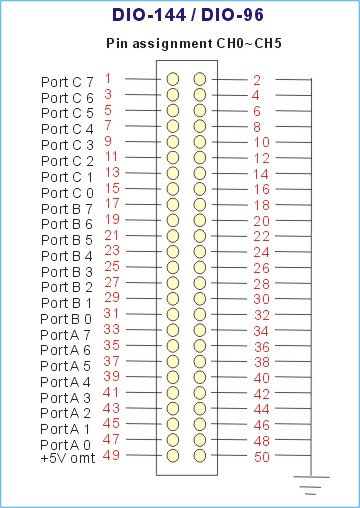

  • DIO-144 : Six 50-pin Header
    DIO-96 : Four 50-pin Header
  • Output status readback

Applications

  • Factory automation
  • Product test
  • Test automation
  • Digital I/O control
  • Alarm monitoring
  • 4-channel SSR Output Daughter Board

Software

  • DOS sample program(with source codes)
  • DLL and OCX SDK for Windows 98/NT/2000
  • DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
  • VB/VC/Delphi/BCB sample programs with source codes are included
  • LabVIEW toolkit for Windows
  • Driver for Linux and DasyLab

Specifications

Digital Input
Channels 144 (OPTO-22 compatible)
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 1.0 MHz (Typical)
Digital Output
Channels 144 (OPTO-22 compatible)
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V
Response Speed 1.0 MHz (Typical)
General
Bus Type ISA
I/O Connector 50-pin box header x 6
Dimensions (L x W x D) 182 mm x 120 mm x 22 mm
Power Consumption 700 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
