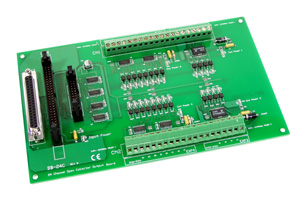

24 Channel Open-collector Output Board. Includes CA-5015(50-pin Flat Cable 1.5m)

DB-24C

write a review write a review

24 Channel Open-collector Output Board. Includes CA-5015(50-pin Flat Cable 1.5m)

  Price:  $269.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK
Email Product Details Write a Review Write a Review Email Us
References and Support Add to Quote

Features

The DB-24C has 24 channels of optically isolated digital outputs, arranged into four isolated banks.
  • 24 open-collector output (NPN)
  • One OPTO-22 Compatible Connector
  • One 37 pin D-sub connector
  • One 20-pin connector
  • Connects directly to OPTO-22 compatible board or any 722, 724 series boards
  • 8-channel max. load 600mA (per channel)
  • 16-channel max. load 100mA (per channel)
  • Max. load voltage : 35Vdc
  • LED indicated relay status
  • Screw terminals for easy field wiring
  • Applications:
    • On/off control
    • Energy management
    • Test Automation
    • Process Control

Specifications

  • Open-collector (NPN)
  • Channel 0 ~ 3 and 12 ~ 15 : 600mA(max load current )
  • Channel 5 ~ 11and 16 ~ 23 : 100mA(max load current)
  • Power Consumption : +5V @0.4A max
  • Dimensions : 130mm x 220mm
  • Operating Temperature : 0° - 60°C
  • Storage Temperature : -20°C - 70°C
  • Humidity : 5% to 90 % noncondensing
