8-Channel (Differential) RTD Analag Input DeviceNet
Slave module.  1.5 W.  DIN-Rail mounted.  Has operating temperature range of -25&degC ~ +75&degC (-13°F ~ +167°F)

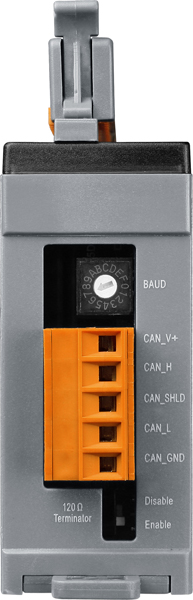

CAN-2015D

8-Channel (Differential) RTD Analag Input DeviceNet Slave module. 1.5 W. DIN-Rail mounted. Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F)

  Price:  $599.00

Features

The CAN-2015D is an 8 Channel RTD Analog input DeviceNet slave device.  RTD input status and configuration of CAN-2015D can be done through the EDS file. DeviceNet heartbeat and shutdown messages can also be done with this device.

This device is in compliance with DeviceNet specification Volume 1 Release 2.0 and Volume 2 Release 2.0, Errata 5. This is also a Group 2 Only Server (non-UCMM-capable) device. A predefined Master/Slave Connection Set is one of its features. Supported connections are the following: 1 connection for Explicit Messaging, 1 connection for Polled I/O, and 1 connection for Bit0Strobe I/O connection.

  • DeviceNet general I/O slave devices
  • Complies with DeviceNet specification Volume I Release 2.0 & Volume II Release 2.0, Errata 5
  • Group 2 Only Server (non-UCMM-capable)
  • Support Predefined Master/Slave Connection Set
  • Connection supported
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-strobe I/O connection
  • Support DeviceNet heartbeat and shutdown messages
  • Provide EDS file for DeviceNet master interface

Specifications

DeviceNet Interface
Channels
8
Wiring
2/3 Wire
Individual Channel
Yes
Sensor Type
RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000, Pt100)
Voltage Input Range
-
Current Input Range -
Resolution 16-bit
Sampling Rate 10 Hz
Accuracy ±0.05 % of FSR
Zero Drift ±0.5 μV/ °C
Span Drift ±20 μV/ °C
Overvoltage Protection 240 Vrms
Input Impedence 20 MΩ
Common Mode Rejection 150 d
Normal Mode Rejection 100 dB
Communication
Connector 5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
Baud Rate (bps) 125 k, 250 k, 500 k
Terminator Resistor Switch for 120 Ω terminator resistor
Node ID 0~63 selected by rotary switch
Protocol Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
DeviceNet Subscribe Group 2 Only Server
Explicit Connection Yes
Polled I/O Connection Yes
Bit-Strobe I/O Connection Yes
Heartbeat message Yes
Shutdown message Yes
System
ESD Protection 4 kV Contact for each channel
Isolation 3000 VDC for DC-to-DC, 2000 Vrms for bus-to-logic
Watchdog
Yes
Power
Input Range
Unregulated +10 ~ +30 VDC
Power Consumption
1.5 W
Mechanism
Installation DIN-Rail
Dimensions
33 mm x 107 mm x 102 mm ( W x L x H )
Environmental
Operating Temperature
-25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature
-30°C ~ +80°C (-22°F ~ +176°F)
Ambient Relative Humidity
10 ~ 90% RH, non-condensing
