5-port 10/100 Mbps Fast Ethernet Switch Module. 3 W power consumption. 3.2 Memory Bandwidth.  Has operating temperatures of -25°C ~ +75°C (-13°F ~ 176°F)

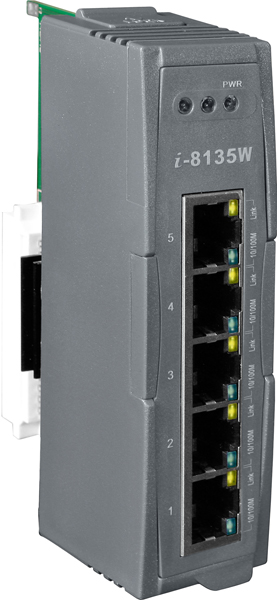

I-8135W

5-port 10/100 Mbps Fast Ethernet Switch Module. 3 W power consumption. 3.2 Memory Bandwidth. Has operating temperatures of -25°C ~ +75°C (-13°F ~ 176°F)

  Price:  $159.00

Features

Application Image I-8135W

  • 5-port RJ-45 Ethernet Switch
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Automatic MDI/MDI-X crossover for plug-and-play
  • 3.2 Gbps high performance memory bandwidth
  • 512 Kbit frame buffer memory

The I-8135W is a five-port Ethernet switch module that delivers great flexibility and high performance. It can be installed in PAC (XPAC, WinPAC, LinPAC, iPAC, and ViewPAC) and directly gets power from the backplane. There is no need for an extra power adapter to power the Ethernet switch.

This is a great PAC solution if you want to expand Ethernet connection. The I-8135W is a good replacement For Ethernet switchs to save installation space and power adapter.

Specifications

Technology
Standards IEEE 802.3, 802.3u, 802.3x
Processing Type Store & forward, wire speed switching
MAC Address 1024
Memory Bandwidth 3.2 Gbps
Frame Buffer Memory 512 Kbit
Flow Control IEEE802.3x flow control, back pressure flow control
Ethernet Switch No external software required (for iP-8000, WP-8000, XP-8000, VP-23/25W)
Interface
LED Indicators 1 LED as power indicator; 10 LEDs as speed and Link/Act indicators
Redundant Power
Power Consumption 3 W
Mechanical
Dimensions 30 mm x 82 mm x 114 mm
Environment
Operating Temperature -25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature -30°C ~ +85°C (-22°F ~ +185°F)
Humidity 5% ~ 90% RH, non-condensing
