> Data Acquisition > Rack Based Data Acquisition > I-8000 Parallel Data Acquisition Mo... > I-8000W High Performance Modules > I-8114W-G (4 non-isolated RS-232 serial ports)

4-Port RS-232 Module/4-Port Isolated RS-232 Module. Replacement unit for I-8114.

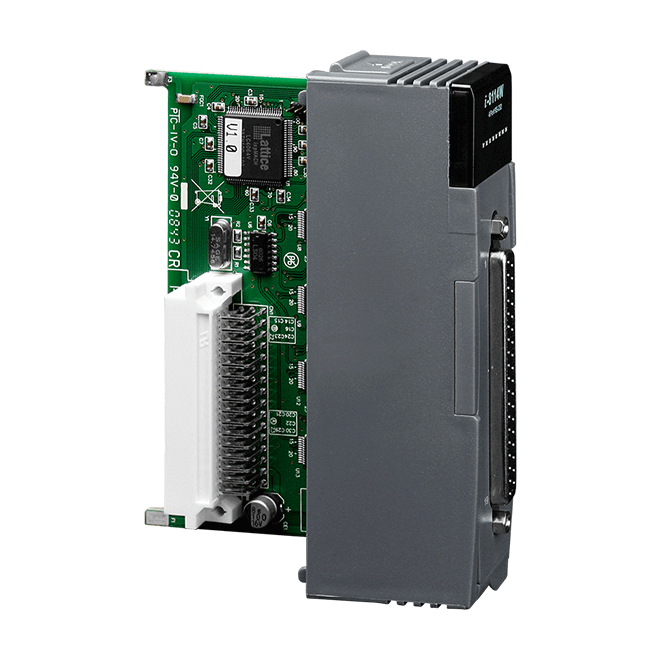

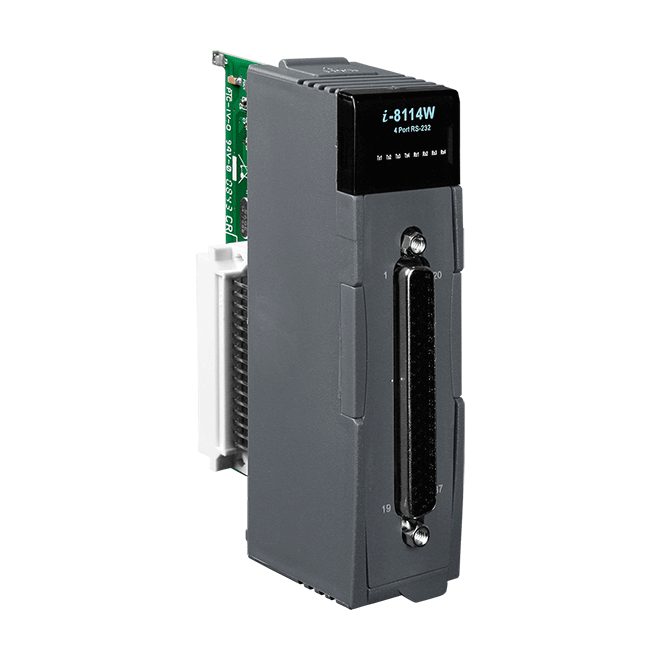

I-8114W-G (4 non-isolated RS-232 serial ports)

write a review write a review

4-Port RS-232 Module/4-Port Isolated RS-232 Module. Replacement unit for I-8114.

  Price:  $329.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK
Send Email with Product Info
Write a Review Write a Review Email Us
References and Support Add to Quote

Features

Introduction
The I-8114W provides 4 non-isolated RS-232 serial ports, while the I-8114iW provides 4-isolated RS-232 serial ports. It equips 128 bytes hardware FIFO for each port, offers speed up to 115.2K bps and supports full-duplex communication.

In the harsh industrial environment, the on board ESD protection devices attempt to divert this potentially damaging charge away from sensitive circuitry and protect the I-8114W/I-8114iW from permanent damage.

Specifications

Specifications
Number of Ports 4
I-8114W Interface TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
I-8114iW Interface TxD, RxD, RTS, CTS, GND
Controller 16C950 compatible
Speed: 115200 bps Max.
Data bit: 5, 6, 7, 8
Stop bit: 1, 1.5, 2
Parity: None, Even, Odd, Mark, Space
FIFO: Internal 128 bytes for each port
Interrupt Shared Interrupt
Bus Parallel I/O Module
Connector DB-37(Female)
4kV ESD Protection  Yes, Contact for each port.
Intra-module Isolation, Field to Logic 2500Vrms for I-8114iW
Software
Support interrupt driven software library
Support VxCOM library
LED Display
1 LED as Power Indicator
4 LEDs as Communication(TxD) Indicators
4 LEDs as Communication(RxD) Indicators
Power Consumption
I-8114W 0.25 A @ 5 V ,± 5 %
I-8114iW 0.35 A @ 5 V ,± 5 %
Environment
Operating Temperature -25 ~ 75 °C
Storage Temperature  -40 ~ 85 °C
Humidity   5 ~ 95% RH, non-condensing
Dimensions
30mm x 85mm x 114mm (W x L x H) Detail
