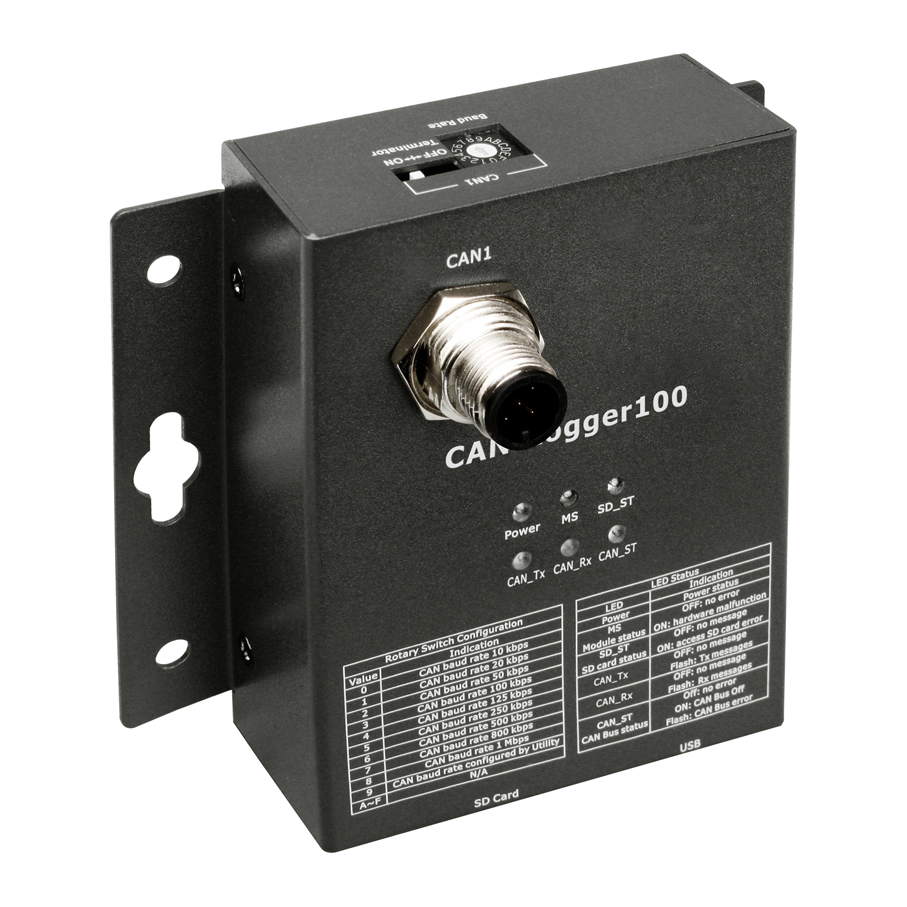

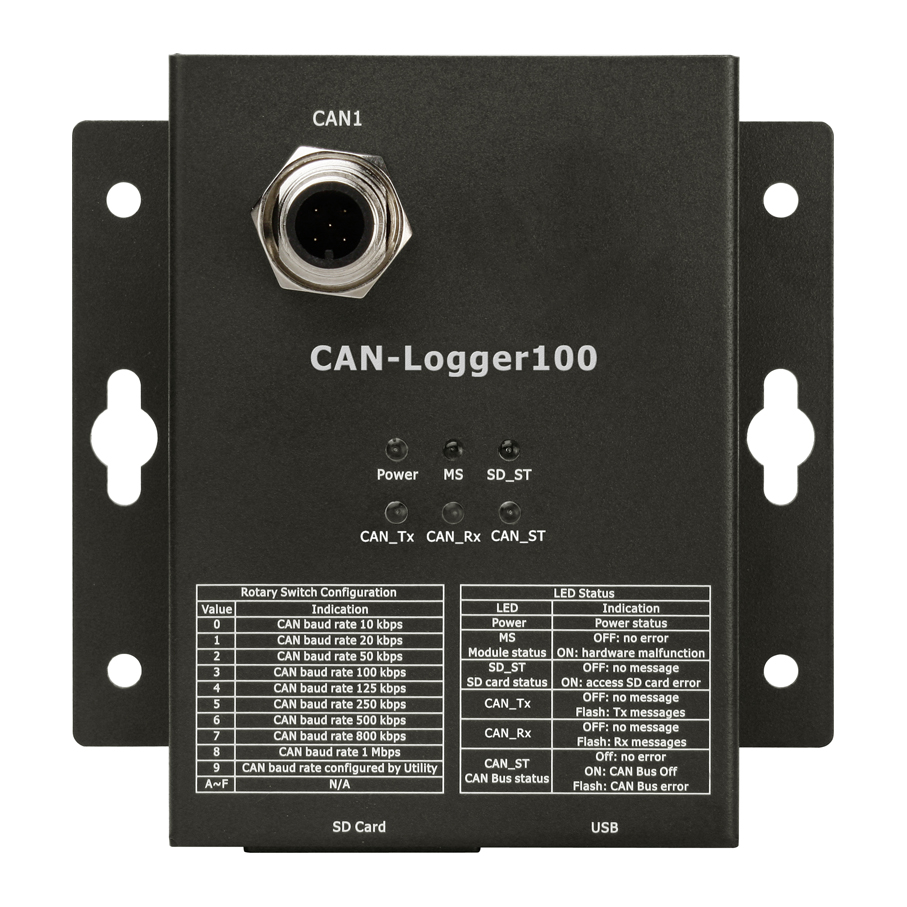

CAN-Logger100
1-port CAN Bus Data Logger. Compatible with CAN specification 2.0 A and B. Supports SD card and SDHC. Powered by USB and M12 connectors. Includes free utility and software. Supports operating temperatures of -25 ~ 75 ℃(-13F ~ 167F).
References & Support
Features
![Application Image CAN-Logger100](images/applicationImage-CAN-Logger100.jpg)
- Compatible with CAN specification 2.0 parts A and B
- 2500 Vrms photocoupler isolation on the CAN side
- Fully compatible with the ISO 11898-2 standard
- Supports CAN bus acceptance filter configuration
- Maximum CAN data flow for a single channel is 15000 fps
- Programmable CAN bus baud rate from 10 kbps ~ 1Mbps
- USB 2.0 High Speed Compatibility
- Supports 4 to 32 GB SDHC type flash to save CAN messages
- Built-in jumper for the 120 Ω terminal resistor of the CAN side
- Power by the USB port or CAN port
- 3 kV galvanic isolation for the CAN port
- Provides a configuration utility that can be used to transmit/receive CAN messages
Software
- CAN 2.0A or CAN 2.0B specification selection
- CAN Bus baud rate and acceptance filter configuration
- Easy to transmit/receive CAN messages and check CAN Bus state
- CAN Bus communication mode (normal and silent mode ) configuration
- Data filter function for logged data
![CAN-logger utility](/images/Can-logger%20utility.jpg)
Applications
- Automobile
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
![CAN Logger Application](/images/CAN-logger-application.png)
Specifications
CAN Interface | |
Transceiver | NXP TJA1042 |
Channel Number | 1 |

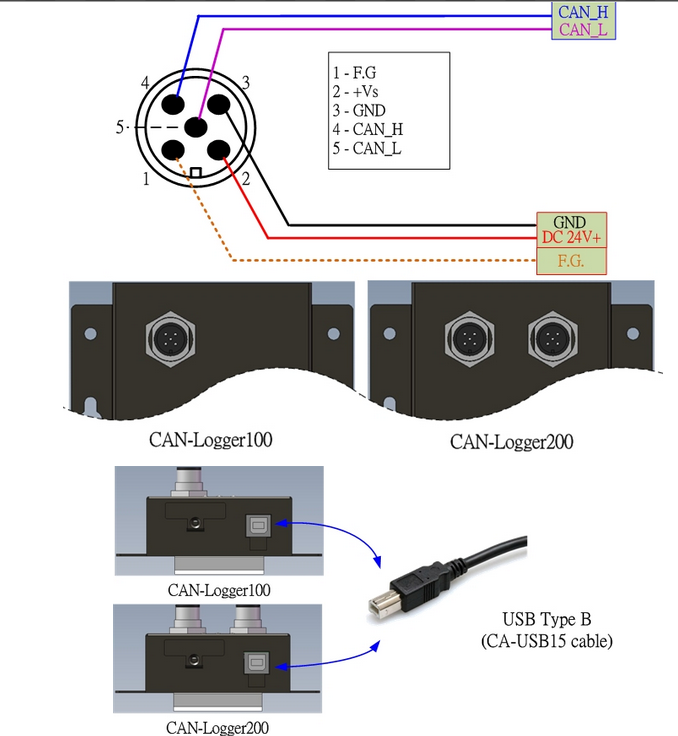

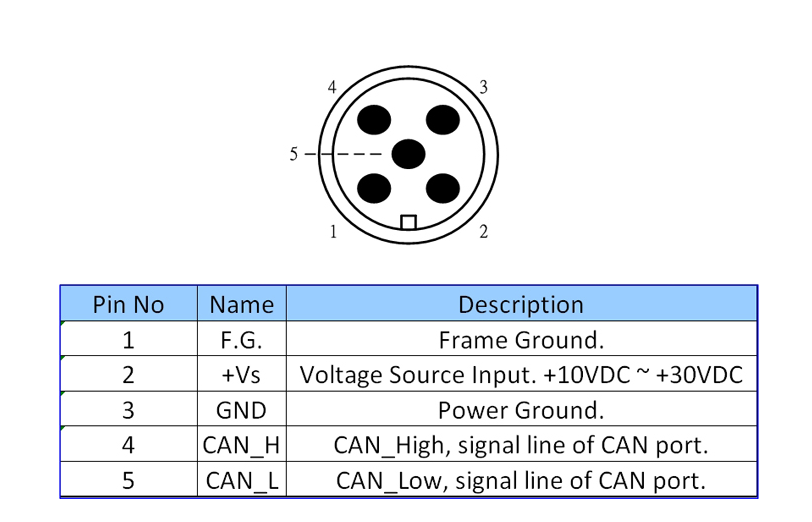

Connector | 5-Pin male M12 x 1 (Pin 1: F.G., Pin 2: +Vs, Pin 3: GND, Pin 4: CAN_H Pin 5: CAN_L) |
Transmission Speed (bps) | 10 k, 20 k, 50 k, 100 k, 125 k, 250 k, 500 k, 800 k, 1 M and user-defined baud rate |
Terminator Resistor | DIP switch for the 120 Ω terminator resistor |
Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler |
Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
CAN Filter Configuration | Utility tool |
USB Interface | |
Connector | USB Type B x 1 |
Compatibility | USB 2.0 High Speed |
Max. Data flow | Transmit: 4000 fps ; Receive: 1000 fps |
Software Driver | Windows 2K/XP/7/8/10 |
Data Logger Capability | |
Storage Media | SDHC type flash – support 4 to 32 GB |
Recording Format | Binary |
Time Stamp | 10 us |
Configuration | Utility tool |
Data Logger | Maximum message rate, receive: 15000 msgs/s |
Trigger | Log continuously |
LED | |
Round LED | Power, MS, SD, CAN1, CAN2, CAN_ST LEDs |
Power | |
Power supply | USB power or CAN bus power (Unregulated +10 ~ +30 VDC) delivery |
Protection | Power reverse polarity protection, Over-voltage brown-out protection |
Power Consumption | 0.1 @ 24VDC |
Mechanism | |
Installation | DIN-Rail mount |
Casing | Metal |
Dimensions | 102.0 mm x 102.0 mm x 44.0 mm (W x L x H) |
Environment | |
Operating Temperature | -25 °C ~ +75 °C |
Storage Temperature | -30 °C ~ +80 °C |
Humidity | 10 ~ 90% RH, non-condensing |
