Wireless 8-channel Isolated Digital Input Module with 16-bit Counters, 8 LED indicators. Supports Modbus RTU protocol. Operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F)

ZT-2052

Wireless 8-channel Isolated Digital Input Module with 16-bit Counters, 8 LED indicators. Supports Modbus RTU protocol. Operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F)

  Price:  $259.00

Features

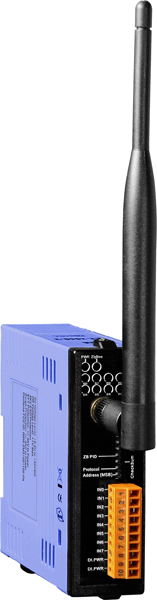

ZT-2052 Application Image

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m
  • GUI Configuration Software (Windows Version)
  • 8 Wet Contact Digital Input Channels
  • Supports 16-bit Counters for Digital Input Channels
  • Surge and ESD Protection
  • DIN-Rail Mountable

The ZT-2052 offers 8 digital input channels, each of which features photocouple isolation. You can choose sink-type or sourcetype inputs through wire connections. All channels are able to be used as 16-bit counters. The ZT-2052 has 8 LED indicators to display the channel status, includes a 4 kV ESD protection, and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.

Specifications

Communication Interface
Wireless Standards
ZigBee, IEEE 802.15.4
Transmission Power
11dBm
2.4 GHz Antenna
5 dBi Omni directional
Transmission Range (LoS)
700 m (Typical) 1 km (Max)
Certification
-
Max. Slaves in ZigBee Network
255
Protocols
Supports DCON and Modbus RTU Protocols
How Swap
Rotary and DIP switch
LED Indicators
Power
1 LED, Red
ZigBee Communications
1 LED, Green
Digital Input
8 LEDs, Green
Power
Power Consumption
1 W Max.
Mechanical
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H) 33 mm x 87 mm x 110mm
Installation
DIN-Rail
Power
Operating Temperature
-25 ~ +75°C (-13°F ~ +167°F)
Storage Temperature
-30 ~ +80°C (-22°F ~ +176°F)
Relativel Humidity
10 ~ 90% RH, Non-condensing

I/O Specifications

Digital Input/Counter
Input Channels
8
Input Types
Source
Sink/Source
Wet Contact

On Voltage Level: +3.5 VDC ~ +30 VDC

Off Voltage Level: +1 VDC Max.
Dry Contact (Sink)
On Voltage Level: Close to GND
Off Voltage Level: Open
Effective Distance for Dry Contact: 500 m Max.
Counter
Channels: 8
Max. Count: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Intra-module Isolation, Field to Logic 3750 Vrms
Impedence 3 kΩ, 0.33 W
