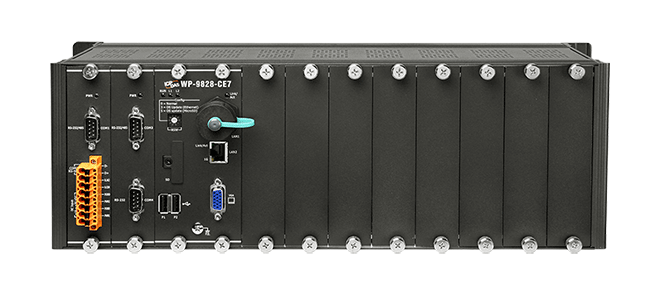

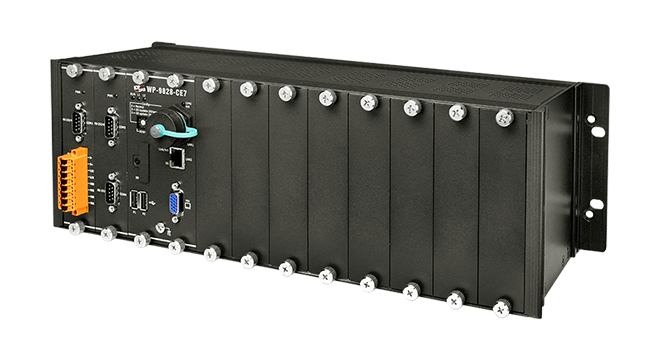

8 Slot Win-GRAF Based PAC with Cortex-A8 CPU and WinCE 7.0

WP-9828-CE7

8 Slot Win-GRAF Based PAC with Cortex-A8 CPU and WinCE 7.0

  Price:  $3,799.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

  • Cortex-A8, 1GHz CPU
  • 512 MB SDRAM and 256 MB Flash
  • Windows CE 7.0
  • Embedded Win-GRAF SoftLogic (IEC 61131-3)
  • VGA Port Output
  • Modbus RTU/TCP (Master, Slave)
  • Support eLogger HMI
  • Redundant Power Inputs

CE FCC RoHS WEEE

Introduction

The Win-GRAF WinPAC-9000-CE7 Series (WP-9228-CE7/9428-CE7/9828-CE7) is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-9000-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 2/4/8 expansion I/O slots that can be used to integrate high-performance I-9K (parallel-type) and I-97K (serial-type) series I/O modules.

The benefits of running Windows CE 7.0 on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The WP-9x28-CE7 series PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.


Win-GRAF Features:

  • Data Binding function allows exchanging data among PACs.
  • On-line Change function can make minor changes during the project is running. There is no need to call off the running program.
  • Support Online debug/ control, and Offline simulation for programs.
  • Can create customized Function Blocks using Visual Studio 2008 and run in Win-GRAF.

WP-9000 CE7 Feature:

  • Metal Enclosure
  • Power/Communication Spring Clamp Terminal Connector
  • Rugged RJ-45 Connector for LAN1

Specifications

Software
OS Windows CE 7.0
Protocol
  • NET ID
  • eLogger HMI
  • Modbus TCP/IP Master
  • Modbus TCP/IP Slave
  • Modbus RTU/ASCII Master
  • Modbus RTU Slave
  • DCON Protocol
  • User-defined Protocol
  • I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
  • Local I/O Modules
  • Application Protection
  • Data Binding
  • On Line Change
  • Schedule Control
  • Retain Variables
  • File Access and Data Log
Development Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number Yes
System Memory 512 MB DDR3 SDRAM
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Storage 256 MB Flash, 4 GB SD card (up to 32 GB)
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal VGA
Resolution 800 x 600, 1024 x 768
LED Indicators
Status 1 x System, 2 x Power, 2 x Programmable
I/O Expansion
I/O Type I-9K, I-97K series
Slots 8
COM Ports
Ports 1 x RS-232, 1 x RS-485, 2 x RS-232/485 (3000 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 2 x USB 2.0
Power
Input Range +10 ~ 30 VDC (1 kV Isolated)
Redundant Power Inputs Yes
Consumption 18 W
Mechanical
Casing Metal
Dimensions (mm) 422 x 133 x 164 (W x L x H)
Installation DIN-Rail, Wall mounting
Ingress Protection Rating IP30 (Aluminum)
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing
