WinPAC Programmable Automation Controller with 4 I/O Slots and Windows CE.NET 5.0.  Supports operating temperature of -25°C to +75°C.  Comes with Free eLogger Configurable Control and Monitoring software.

WP-8441

WinPAC Programmable Automation Controller with 4 I/O Slots and Windows CE.NET 5.0. Supports operating temperature of -25°C to +75°C. Comes with Free eLogger Configurable Control and Monitoring software.

  Price:  $1,599.00

Features

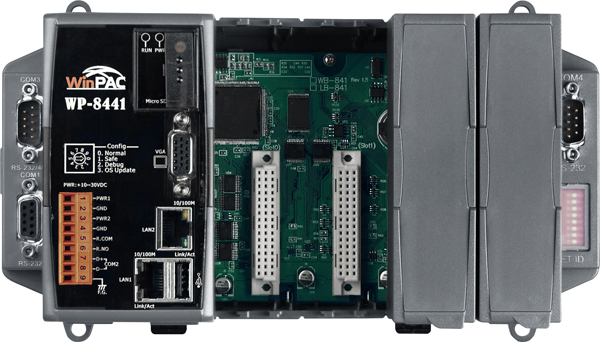

Application Image WP-8441The WinPAC-8441 is the second generation PAC of ICP DAS USA. It is equipped with a PXA270 CPU (520MHz) running a Windows CE .NET 5.0 operating system, various connection types (i.e., VGA, USB, Ethernet, RS-232/485), 4 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). It is compatible with eLogger software.

Its operating system,Windows CE 5.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 5.0 with the WinPAC-8441 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC, etc.



Software Features

  1. Windows CE.Net 5.0
  2. Remote Maintenance via FTP Server and VCEP Software
  3. Built-In OPC Server (NAPOPC_CE5)
  4. Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
  5. Upgrading applications from WinCon to WinPAC Just Copy and Play

Hardware Features

  1. Built-in VGA Port
  2. I/O Module Hot Swap Ability (Will be available)
    (For High Profile I-87K Modules Only)
  3. Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
  4. Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
  5. Dual Watchdog Timer
  6. Dual Battery-Backup SRAM (512KB)
  7. Dual Ethernet Ports
  8. Redundant Power Input
  9. Ventilated Housing Design Allows Operation Between -25℃ ~ +75℃
  • Software
    • Windows CE.Net 5.0: Most of the popular features in MS software are included:
      1. FTP server
      2. HTTP server
      3. ASP (Java script, VB script)
      4. SQL server embedded
      5. Compact .Net framework 2.0
    • Remote Maintenance via FTP Server and VCEP Software
      • The FTP server is used for uploading applications or downloading data. And VCEP is designed for managing the WinPAC-8000. VCEP can synchronize every movements (screen, keyboard and mouse actions) between the PC and the WinPAC-8000 via the Ethernet. By using the FTP server and VCEP, you can update and manage the WinPAC-8000 remotely via the Ethernet.
    • Built-In OPC Server (Quicker)
      • Quicker is an OPC server and SCADA software can easily integrate I/O modules through it. It also provides a library which users can use to develop their AP by eVC, C# or VB.Net. Quicker not only supports I/O modules in local slots, but also supports remote I/O modules with the following protocols via the RS-232/485 or Ethernet:
      1. Modbus/RTU
      2. Modbus/ASCII
      3. Modbus/TCP
      4. DCON
    • Remote Maintenance via FTP Server and VCEP Software
      • The FTP server is used for uploading applications or downloading data. VCEP is designed for managing the WinPAC-8000. VCEP can synchronize every movements (screen, keyboard and mouse actions) between the PC and the WinPAC-8000 via the Ethernet. By using the FTP server and VCEP, you can update and manage the WinPAC-8000 remotely via Ethernet.
      • Upgrading Applications from WinCon to WinPAC just Copy and Playcopy and play
        • Users can upgrade their controller from WinCon-8000 to WinPAC-8000, still keep most of their old applications (.exe files) running smoothly on WinPAC-8000 without any modifications. The only thing that users have to do is copy the .exe file from WinCon-8000, paste it to WinPAC-8000, and play it. It's that simple. For exceptions in old applications (.exe files) that are not able to follow the copy-and-paste rule, users can still upgrade by recompiling the old applications. The upgrade process does not take more than 7 steps.
  • Hardware
    • Powerful CPU Module
      1. PXA270 or compatible CPU (32-bit and 520MHz)
      2. 128MB SDRAM
      3. 14MB Built-In Flash Disk
    • Built-in VGA Port
      • A built-in VGA port can be directly connected to a regular LCD display. Users can operate the HMI or SCADA software (running on the WinPAC-8000) with display, keyboard and mouse just as how they usually did on regular PCs.
    • 64-bit Hardware Serial Number
      • The 64-bit hardware serial number is unique and individual. Every serial number of WinPAC-8000 is different. Users can add a checking mechanism to their AP to prevent software from pirating.
    • I/O Module is Hot Swappable
      • The WinPAC-8000 features hot swap which means that there is no need to power off the WinPAC-8000 for replacing modules. And the OS provides a function sending plug-in and removing messages to user’s applications. Using this feature, users can design their own plug-and-play applications.
        copy and play
    • Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
      • Beside the local I/O slots, WinPAC-8000 also equips several RS-232/485 ports, two Ethernet ports to connect serial I/O and Ethernet I/O. And with FRnet and CAN communication module in local slot, FRnet I/O and CAN devices are easy to be integrated.
    • Built-In Flash Disk (14MB)
      • Uusers can store their AP or data to the Micro SD card or USB Flash disk. The built in Flash disk is the best storage media in vibrational environments like in ships or trucks.
    • Dual Watchdog Timer
      • There are two watchdogs (OS watchdog and AP watchdog) designed to automatically reset the CPU when systems could be hung up from situations like OS or AP failure. The dual watchdog design increases the reliability of the system.
    • Dual Battery-Backup SRAM (512KB)
      • Non-Volatile memory is the ideal design to maintain important data while power off. The WinPAC-8000 equips a 512KB SRAM with two Li-batteries to maintain data while powered off. The two Li-batteries continually supply power to the 512KB SRAM to retain data for 10 years; the dual-battery design prevents data loss when replacing a new battery.
    • Dual Ethernet Ports
      • WinPAC-8000 provides two Ethernet ports. The two Ethernet ports can be used to implement redundant Ethernet communication and separate Ethernet communication (one for global Internet, one for private Ethernet).
    • Redundant Power Inputs
      • The power module is designed with two inputs to prevent the WinPAC-8000 from failing by the power loss. The WinPAC-8000 can keep working even one power input fails, and mean while there is a relay output for informing the power failure.
    • Ventilated Housing Design Allows Operation Between -25°C ~ +75°C
      • Each WinPAC-8000 is housed in a plastic-based box with a column-like ventilator that can help to cool the working environment inside the box and allow the WinPAC-8000 operating between -25°C and +75°C.

Specifications

System Software
OS Windows CE 5.0
.Net Compact Framework 2.0
Embedded Service FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008
CPU Module
CPU PXA270 or compatible (32-bit and 520 MHz)
SDRAM 128 MB
Dual Battery Backup SRAM 512 Kbytes (for 5 years data retain)
Flash WP-8x31: 128 MB (64, 63, 1)
WP-8x41: 96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry)
EEPROM 16 Kbytes
Data Retention: 40 years; 1,000,000 erase/write cycles
microSD

WP-8x31: with one 2 GB microSD card (can support 16 GB microSD card)

WP-8x41: with one 1 GB microSD card (can support 16 GB microSD card)
RTC (real time clock) Year-2000 compliance; seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079
64-bit Hardware Serial Number Yes
Dual Watchdog Timer Yes
Programmable LED Indicator 1
Rotary Switch Yes (0 ~ 9)
DIP Switch Yes (8 bits)
VGA & Communication Ports
VGA WP-8x31: resolution: 1024 x 768, 800 x 600, 640 x 480; with one extra GPU.
WP-8x41: resolution: 800 x 600, 640 x 480; without extra GPU.
Ethernet RJ-45 x 2, 10/100 Base-TX
(Auto-negotiating, LED indicators)
USB 1.1 (host) WP-8x31: 2 ports
WP-8x41: 1 port
COM 0 Internal communication with I-87K modules in slots
COM 1 RS-232 (to update firmware) (RXD, TXD and GND); Non-isolation
COM 2 RS-485 D2+, D2-; self-tuner ASIC inside
Isolation 3000 VDC
COM 3 RS-232/RS-485 (RXD, TXD, CTS, RTS and GND for
RS-232, Data+ and Data- for RS-485); Non-isolation
COM 4 RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation
I/O Expansion Slots
Slot Number 4 slots
(For High Profile I-8K and I-87K Modules Only)
Hot Plug * Will be available I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
Mechanical
Dimensions (W x L x H) 231 mm x 132 mm x 111 mm
Installation DIN-Rail or Wall Mounting
Environmental
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Ambient Relative Humidity 10% ~ 90% RH, non-condensing
Power
Input Range +10 VDC ~ +30 VDC
Isolation 1 kV
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity 1.1A, 5V supply to CPU and backplane, 4.9A, 5V supply to I/O expansion slots, total 30 W
Consumption 9.1 W (0.38 A @ 24 VDC)
