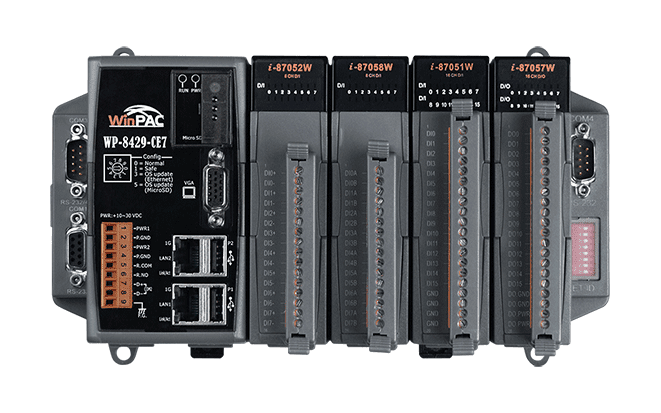

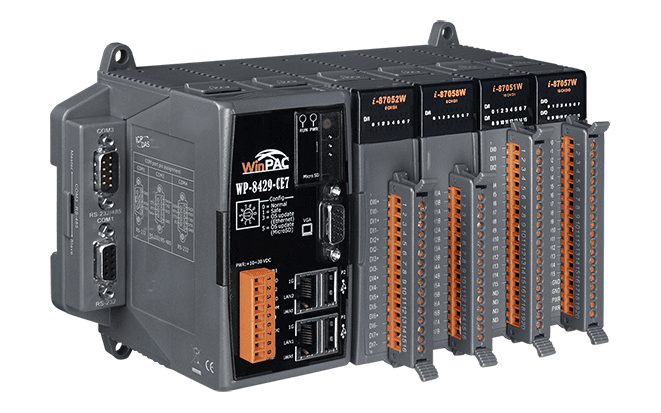

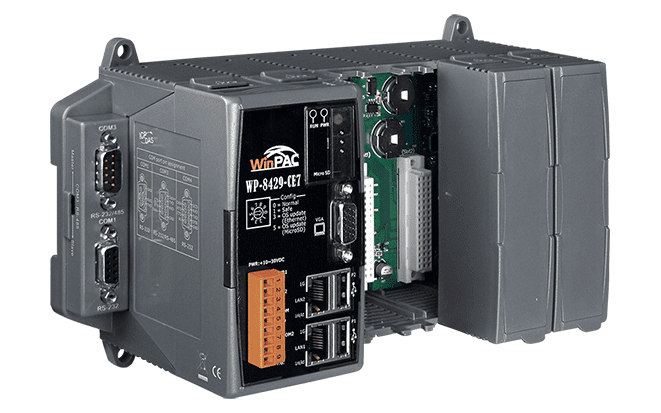

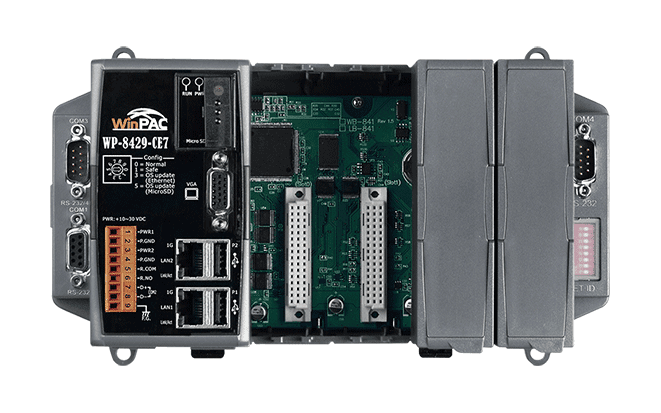

WP-8429-CE7-1500
InduSoft (1500 tags) Based WinPAC Controller with Cortex-A8 1GHz, 512MB DDR3, 256MB Flash, 2 x Ethernet, 1 x RS-232, 1 x RS-485, 4 I/O Expansion Slots, Windows CE 7.0 Professional, Hard Real-Time, Redundant Power Input, Operating Temp up to 75 °C.
Features
Introduction
The WP-8x29-CE7 is the new generation Windows CE 7.0 based PAC with InduSoft Runtime pre-installed of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system. Each WP-8x29-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.
Features
- Cortex-A8, 1GHz CPU
- 512 MB DDR3 and 256 MB Flash
- Windows CE 7.0 Professional
- Hard Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- I/O Expansion Slots
- 2 10/100/1000M Ethernet Ports
- Redundant Power Inputs
- Operating Temperature: -25 ~ +75 °C
Specifications
| Software | |
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio .NET 2008 |
| Main Unit | |
| CPU | Cortex-A8 (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | Flash: 256 MB; microSD slot with one microSD card (support up to 32 GB) |
| Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x Programmable |
| I/O Expansion | |
| Slots | 4 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, Non-isolated; 1 x RS-232/485, Non-isolated; 1 x RS-485 (3000 VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 9.1 W (0.38 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail & Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
References and Support
Customer Reviews (0)
Be the first to leave a review.
Product Added to Cart

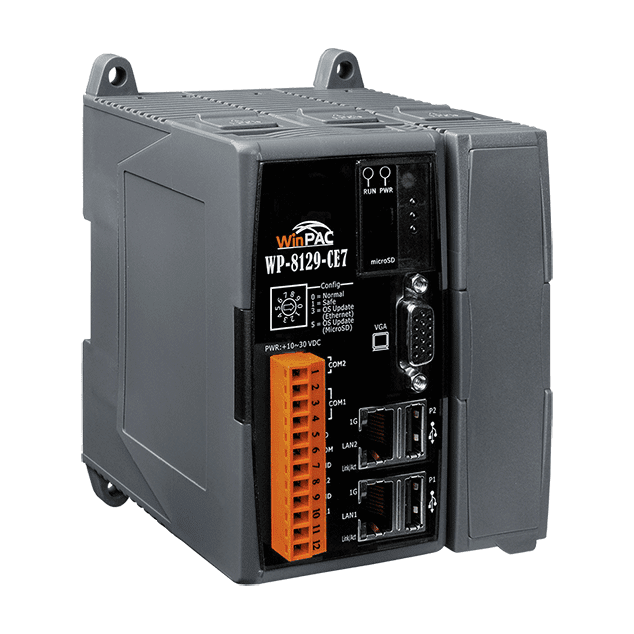

WP-8129-CE7-1500
