Standard WinPAC-8000-CE7 with 1 I/O Slot. Replacement for WP-8141.

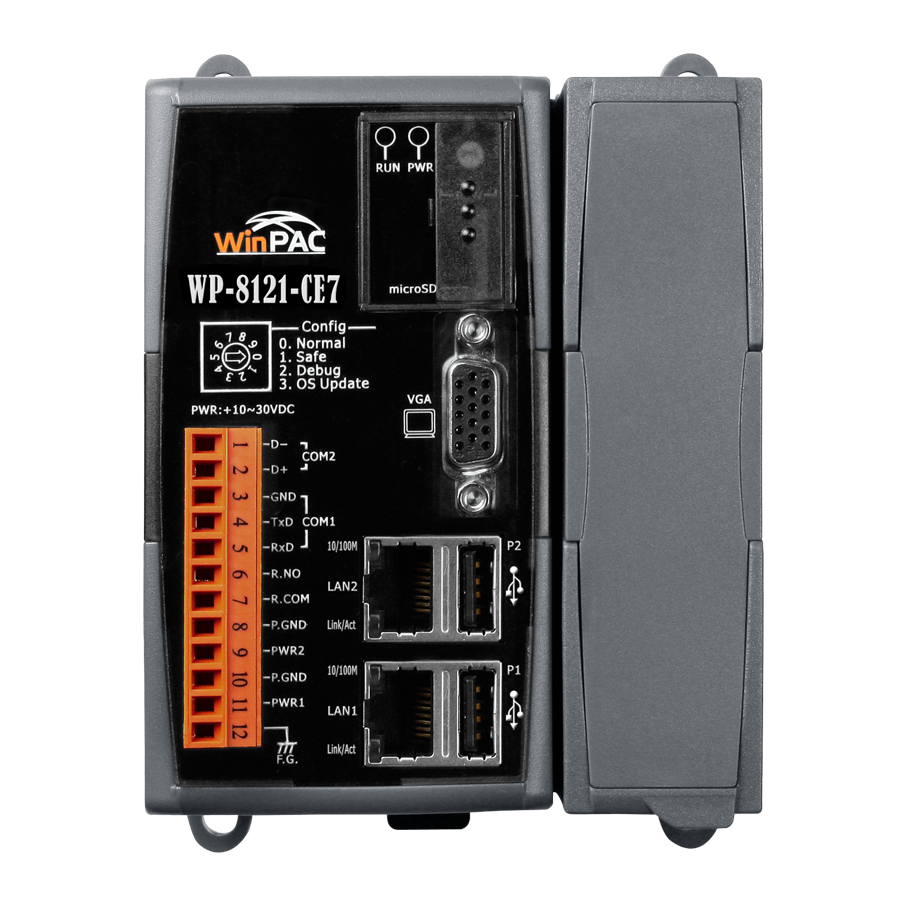

WP-8121-CE7

Standard WinPAC-8000-CE7 with 1 I/O Slot. Replacement for WP-8141.

  Price:  $2,099.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

The WP-8121-CE7 is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-8121-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1 expansion I/O slot that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.

Its operating system,Windows CE 7.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 7.0 in the WP-8000-CE7 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Visual C++, SCADA software, Soft PLC …etc.

  • Cortex-A8, 1GHz CPU
  • 512 MB DDR3 and 256 MB Flash
  • Windows CE 7.0 Professional
  • Hard Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Slots
  • 2 10/100/1000M Ethernet Ports
  • Redundant Power Input
  • Operating Temperature: -25 ~ +75°C

Specifications

System Software

OS

Windows CE 7.0

.Net Compact Framework

3.5

Embedded Service

FTP server, Web server (supports VB script, JAVA script), Embedded SQL server

SDK Provided

Dll for VC, Dll for Visual Studio.Net 2008

Multi-Language Support

English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines

CPU Module

CPU

Cortex-A8 (1.0 GHz)

DDR3 SDRAM

512 MB

MRAM

128 KB

Flash

256 MB

EEPROM

16 KB

microSD

microSD slot with one microSD card (support up to 32 GB)

RTC (Real Time Clock)

Provide second, minute, hour, date, day of week, month, year

64-bit Hardware Serial Number

Yes, for Software Copy Protection

Dual Watchdog Timers

Yes

Programmable LED Indicator

1

Rotary Switch

Yes (0 ~ 9)

DIP Switch

-

VGA & Communication Ports

VGA Resolution

800 x 600, 1024 x 768

Ethernet

RJ-45 x 2, 10/100/1000M Base-TX

USB 2.0

2

COM 0

Internal communication with the high profile I-87K series modules in slots

COM 1

RS-232 (RxD, TxD and GND); Non-isolation

COM 2

RS-485 (Data+, Data-);self-tuner ASIC inside; 3000 VDC isolated

COM 3

-

COM 4

-

I/O Expansion Slots

1

Mechanical

Dimensions (W x L x H)

95 mm x 132 mm x 111 mm

Installation

DIN-Rail or Wall Mounting

Environmental

Operating Temperature

-25 ~ +75°C

Storage Temperature

-30 ~ +80°C

Ambient Relative Humidity

10 ~ 90% RH (non-condensing)

Power

Input Range

+10 ~ +30 VDC

Isolation

1 kV

Redundant Power Inputs

Yes, with one power relay (1 A @ 24 VDC) for alarm

Capacity

1.0A, 5V supply to CPU and backplane, 0.6A, 5V supply to I/O expansion slots, total 8 W

Consumption

7.3 W (0.3 A @ 24 VDC)
