17'' resistive touch panel monitor with RS-232 and USB interface and 1280 x 1024 resolution standard TFT LCD screen. Works with ICP DAS <a href=''http://www.icpdas-usa.com/search-result.php?searchproduct=wp-8''>WP-8000</a> Windows CE based PAC's, <a href=''http://www.icpdas-usa.com/linpac.html''>LP-8000</a> Linux based PAC's, and <a href=''http://www.icpdas-usa.com/x_pac_windows_xp_embedded_pac.html''>XP-8000</a> Windows XP embedded controllers. NEMA 4/IP65 Compliant front panel for protection against dust and water. Supports operating temperature of -20 ~ 70°C (-4F ~ 158F).

TP-7170

17" resistive touch panel monitor with RS-232 and USB interface and 1280 x 1024 resolution standard TFT LCD screen. Works with ICP DAS WP-8000 Windows CE based PAC's, LP-8000 Linux based PAC's, and XP-8000 Windows XP embedded controllers. NEMA 4/IP65 Compliant front panel for protection against dust and water. Supports operating temperature of -20 ~ 70°C (-4F ~ 158F).

  Price:  $1,559.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


RoHS

Features

Application Image TP-7170

The TP-7170 is a 17-inch touch panel monitor with 1280 x 1024 resolution LCD screen. It has full-function OSD control and its driver supports Windows 2000 / XP / Vista / 7 / WES / Windows CE 5.0 / 6.0 / Linux operating systems. The TP-7170 panel mount monitor is equipped with a 7-inch TFT LCD screen with a rugged aluminum front bezel. It supports a wide operating temperature range of -20 ~ 70°C (-4F ~ 158F). The TP-7170 touch panel monitor can work with ICP DAS Programmable Automation Controllers (PAC) such as the WP-8000 series Windows CE based PAC's, LP-8000 series Linux based PAC's, and XP-8000 Windows XP embedded controllers for industrial control systems.

  • 17-inch TFT LCD screen with 1280 x 1024 resolution
  • Resistive Touch Panel
  • Full-function OSD control
  • Driver Support: Windows 2000 / XP / Vista / 7 / WES / WinCE 5.0 / 6.0 / Linux
  • LED backlight technology
  • IP65 Front Panel
  • Wide operating temperature: -20 ~ +70°C (-4F ~ 158F)

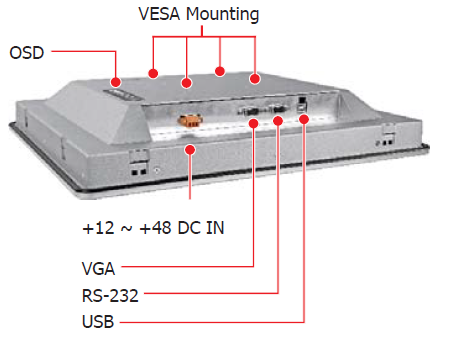

TP-7170 17 inch touch panel monitor I/O interface

Specifications

Models TP-7170
Display
Display 17''
Resolution 1280 x 1024
Max. Color 16.7 M
Brightness (cd/m2) 350 cd/m2
Contrast Ratio 500 : 1
Viewing Angle (H/V) 140/130
Backlight Life (hrs) 50,000
Touch screen 5-wire
analog resistive light; Transmission: 80%
Touchscreen function RS-232 & USB interface
Input Signal VGA (Analog RGB)
MMI (Man Machine Interface)
OSD Control Functions: Brightness, Contrast, Phase, Horizontal Position, Vertical Position and Sharpness
LED Indicators Power, Display signal is detected
Power
Input Range +12 ~ 48 VDC
Power Consumption 22 W
Mechanical
Casing Plastic
Dimensions (W x L x H) 413 mm x 359 mm x 70 mm
Installation Panel Mounting, VESA (75mm x 75mm; 100mm x 100mm) Mounting
Ingress Protection Front panel: IP65
Environment
Operating Temperature -20 °C ~ +70 °C (-4F ~ 158F)
Storage Temperature -30 °C ~ +80 °C (-22F ~ 176F)
Ambient Relative Humidity 10% ~ 90% RH, non-condensing
