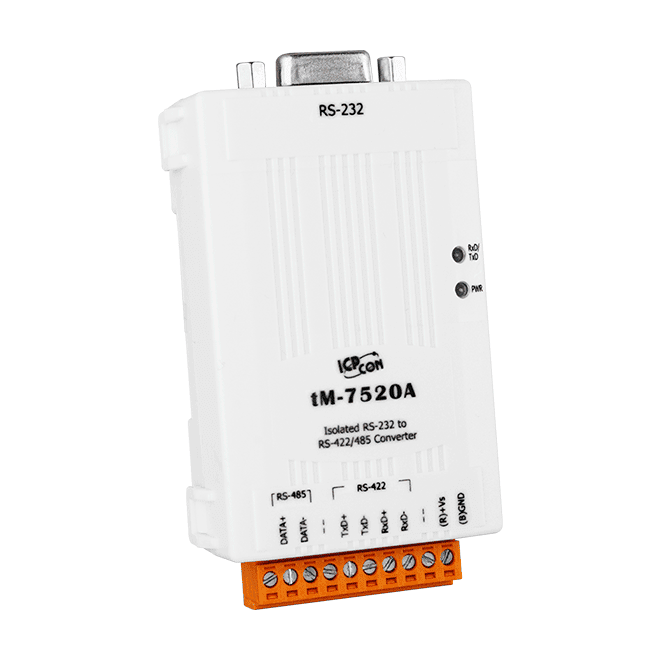

tM-7520A
Tiny Isolated RS-232 to RS-422/485 Converter. Supports operating temperatures from -25°C ~ +75°C. Replacement for tM-7520U.
Features
Introduction

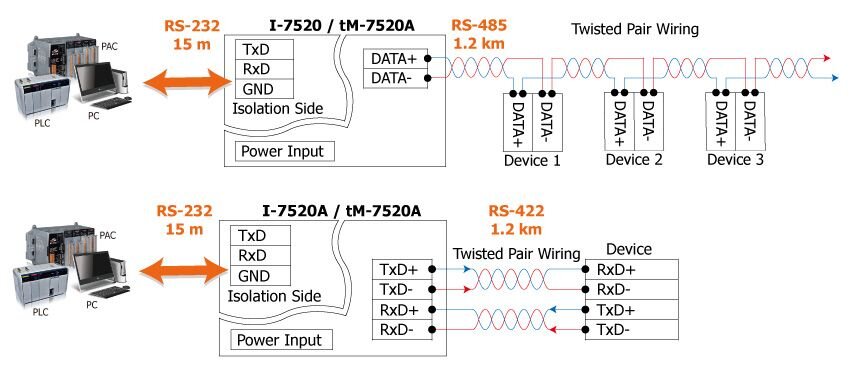

Most industrial computer systems provide standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals, which transparently converts RS-232 signals into isolated RS-485 signal with no need to change any hardware or software. The tM-7520A lets you easily build an industrial grade, long-distance communication system using standard PC hardware.
The sampling rate of ET-2217H is 8 KHz for all channels, and it utilizes TCP streaming continuous transmission mode to record voltage and current values. The module also provides EMS (EFT/ESD/Surge) protection and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
Features
- Automatic RS-485 Direction Control
- ESD Protection for the RS-232/422/485 Data Line
- Transmission Speed of up to 115200 bps
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC 2-way Isolated |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 Input (Master) 1 x RS-422/485 Output (Slave) |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 52 x 93 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
