10.4'' Power Meter Concentrator with Touch Panel Display. Features Easy-to-use Web Interface, Power Data Collection, Logic Control, Data Logging, local display and web display. Communicates over Modbus TCP, Modbus RTU, Ethernet, RS-485 and USB.

PMD-4201

10.4" Power Meter Concentrator with Touch Panel Display. Features Easy-to-use Web Interface, Power Data Collection, Logic Control, Data Logging, local display and web display. Communicates over Modbus TCP, Modbus RTU, Ethernet, RS-485 and USB.

  Price:  $2,879.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The PMD-4201 is a web-based intelligent Power Meter Concentrator. The PMD-4201 is user-friendly and no programming skills are required. Its design has a webpage interface, and is equipped with features such as: power data collection, logic control, power demand management, data logger, local display/Web page data display and alarm notifications.

The PMD-4201 connects to Smart Power Meters via RS-485 or Ethernet interface to read the power data of the devices measured by the power meters; and then real-time record the power values in the data logger file. PMD-4201 is also equipped with data logger file auto send-back function; together with PMC Data Server software or SCADA software, for the use to collect and analyze power data.

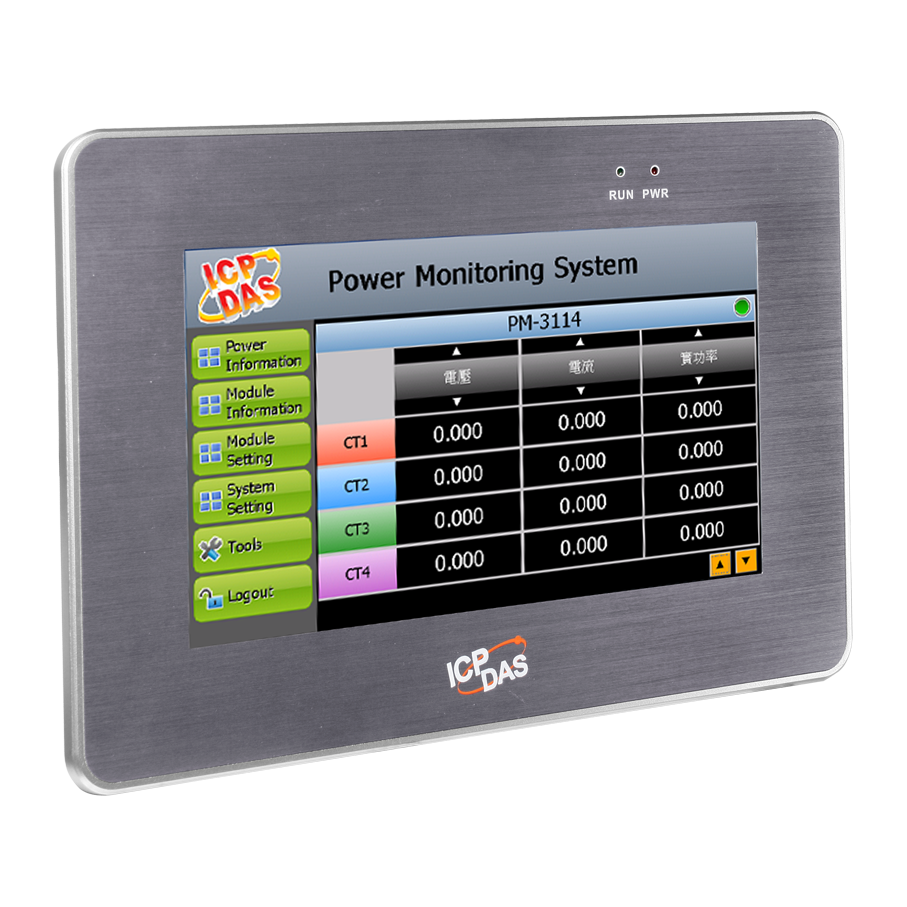

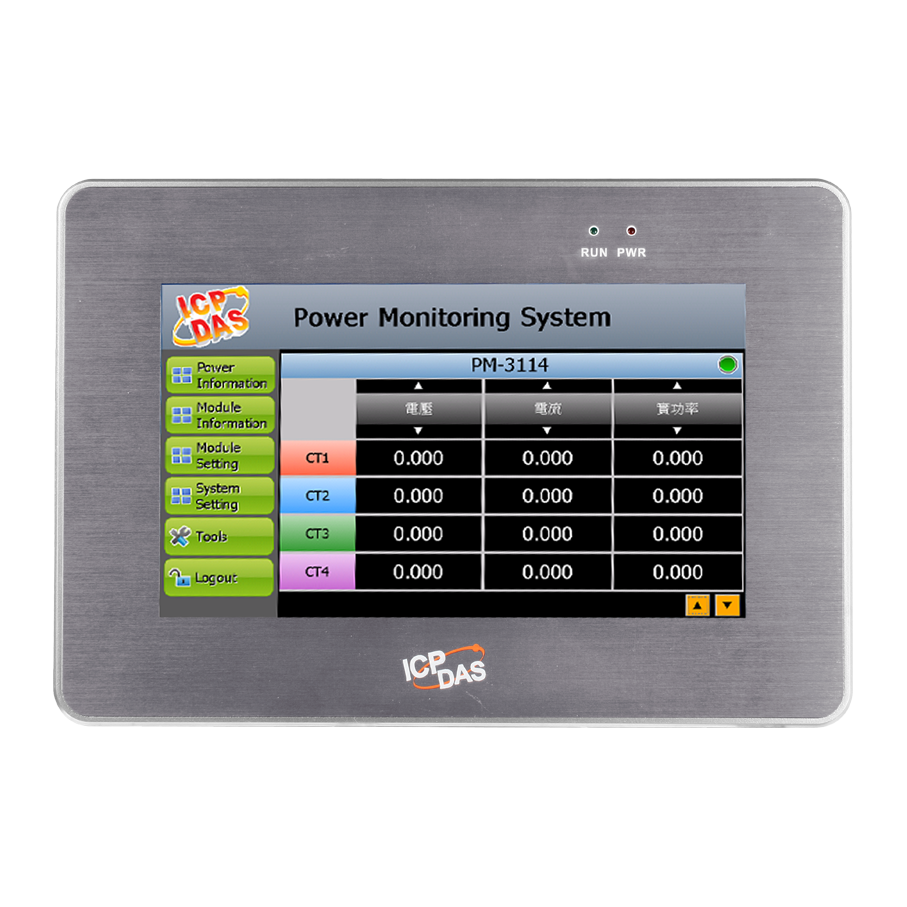

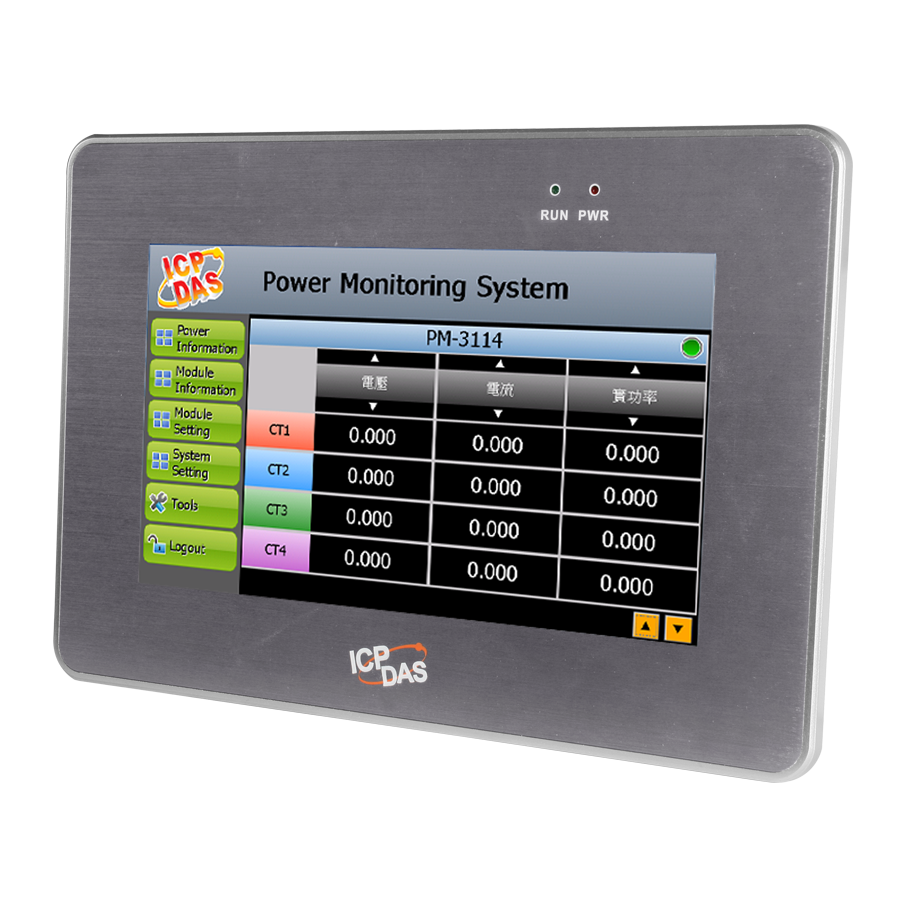

PMD-4201 has a built in 10.4" TFT LCD (with Touch Panel) and designed for easy to mount panel installation. The Touch Panel is also equipped with a built-in Web Server that allows direct connections via browsers to the PMD-4201 for viewing power data and setting up the system parameters. PMD-4201 supports the Modbus TCP/RTU, SNMP, FTP and MQTT protocols for seamless integration with the back-end SCADA/MES/IT/IoT/Network Management systems.

The PMD-4201 is an easy-to-use and easy-to-build total solution for power management and monitoring that makes more efficient energy usage.

  • No extra software tool is required, using browsers to perform system operations
  • 10.4" TFT LCD (with Touch Panel) & PoE (Power over Ethernet) supported
  • Provide remote connection using browsers to login for operations
  • Support at most 24 ICP DAS Modbus TCP/RTU Power Meters (with maximum 16 Modbus TCP Power Meters), and 8 Modbus I/O modules
    • COM1 and COM2 interface can connect to Max. 16 power meters individually
    • Support at most 4 ICP DAS PM-4324 series Power Meters
  • Display real-time or historical power data by browser or local display
  • Provide power data statistics report by browser
  • Provide microSD card to store power data information
  • Data file auto send-back & recovery when disconnected network is resumed
  • Built-in IF-THEN-ELSE logic engine for thought-out power demand management
  • Provide alarm notification function via Email
  • Adjust device operations by its power status via Modbus I/O modules
  • Provide Schedule function for operations of I/O modules (devices)
  • Support Modbus TCP/RTU Slave protocol for seamless integration with SCADA
  • Support SNMP and MQTT protocols
  • Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix)

System Architecture

PMD-4201-EN application

Specifications

System

Embedded Service

PMC Runtime, Web server and FTP server

Memory Expansion

microSD socket with 4 GB micro SDHC card (support up to 32 GB)

CPU Module

CPU

32-bit ARM CPU(1GHz)

DRAM

512MB

Flash (SSD)

256MB

Memory Expansion

SD socket with 4 GB SDHC card (support up to 32 GB)

LED

2 LEDs for Power and Running (Run, PWR)

Rotary Switch

Yes (0 to 9)

LCD

Diagonal Size

10.4" (4:3)

Resolution

800 x 600

Brightness (cd/m2)

400

Contrast Ratio

500:1

LED Backlight Life (hrs)

50,000

Touch Panel

5-wire, resistive type; light transmission: 80 %

Communication Ports

Ethernet

1 x RJ-45 10/100/1000 Base-TX

USB 2.0 (host)

2

COM 1

RS-485 (Data+, Data-) (9-wire DB9 connector); 2500 VDC isolated

COM 2

RS-485 (Data+, Data-) (9-wire DB9 connector); 2500 VDC isolated

COM 3

RS-485 (Data+, Data-, GND); 2500 VDC isolated

Mechanical

Dimensions (W x H x D)

291 mm x 229 mm x 54 mm

Panel Cut-Out (W x H)

277 mm x 215 mm, +/- 1 mm

Installation

Panel Mounting

Ingress Protection

Front panel: NEMA 4/IP65

Environmental

Operating Temperature

-10 °C to +60 °C

Storage Temperature

-20 °C to +70 °C

Ambient Relative Humiditye

10 to 90% RH (non-condensing)

Power

Input Range

+12 VDC to +48 VDC

Power from PoE

IEEE 802.3af

Consumption

13 W
