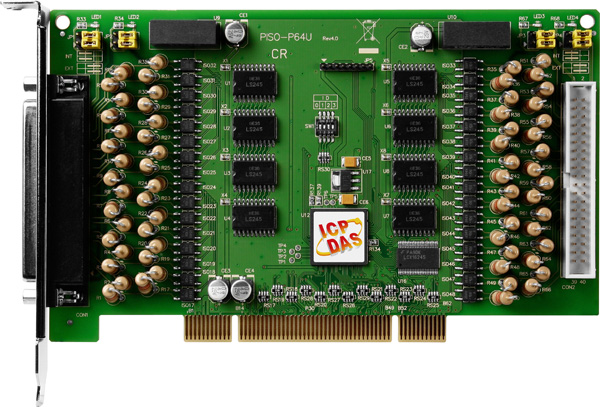

Universal PCI, 64-channel Optically Isolated Digital Input Board

PISO-P64U

Universal PCI, 64-channel Optically Isolated Digital Input Board

  Price:  $339.00

Features

The PISO-P64U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PISO-P64U card is designed as a drop-in replacement for the PISO-P64, and users can replace the PISO-P64 by the PISO-P64U directly without software/driver modification.

The PISO-P64U card support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

  • Support the +5 V PCI bus for PISO-P64
  • Support the +3.3 V/+ 5 V PCI bus for PISO-P64U (-24V)
  • Support PCI Express x1 for PEX-P64 (-24V)
  • Card ID function for PISO-P64U(-24V) and PEX-P64 (-24V)
  • 64-channel optically isolated digital input
  • Built-in DC/DC converter providing 3000 VDC isolation
  • Four isolated banks when using four isolated external power supplies
  • 3750 Vrms photo-isolation protection
  • Selectable internal or external power for DI

Applications

  • Factory automation
  • Product test
  • Laboratory automation

Software

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

Reference & Support

  • Data Sheet
  • Quick Start
  • Software Manual
  • Specifications

    Digital Input
    Isolation Voltage 3750 Vrms (Using external power)
    Channels 64
    Compatibility Photo coupler isolated
    Input Voltage (Max.) Logic 0: 0 ~ 1 V
    Logic 1: 5 ~ 15 V
    (Max 24 V)
    Input Impedance 1.2 KΩ, 1 W
    Response Speed 4 kHz (Typical)
    General
    Bus Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
    Data Bus 8-bit
    Card ID Yes (4-bit)
    I/O Connector Female DB37 x 1
    40-pin Box header x 1
    Dimensions (L x W x D) 180 mm x 105 mm x 22 mm
    Power Consumption 400 mA @ +5 V
    Operating Temperature 0 ~ 60 °C
    Storage Temperature -20 ~ 70 °C
    Humidity 5 ~ 85% RH, non-condensing
