Universal IR Infrared Learning Remote Module to Modbus RTU converter (2 IR outputs, 224 IR Cmds), with 2 CA-IR-SH2251 & 1 CA-0910, communicable over RS-485 and RS-232, supports operating temperature from -25°C ~ +75°C

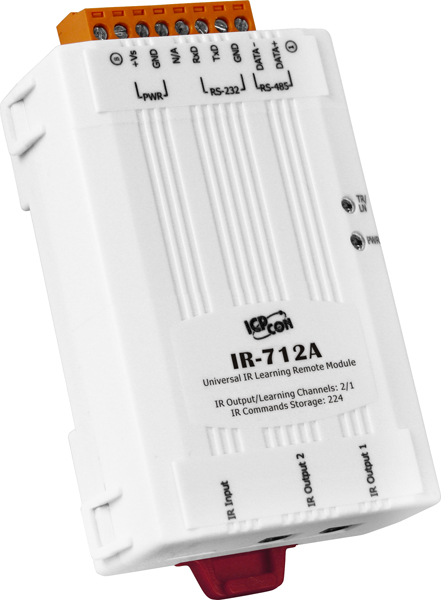

IR-712A

Universal IR Infrared Learning Remote Module to Modbus RTU converter (2 IR outputs, 224 IR Cmds), with 2 CA-IR-SH2251 & 1 CA-0910, communicable over RS-485 and RS-232, supports operating temperature from -25°C ~ +75°C

  Price:  $159.00

Features

Application Image IR-712A The IR-712A (with 2 CA-IR-SH2251 & 1 CA-0910) is a universal IR (infrared) learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. The IR-712A supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus/RTU protocol provide flexible expansion and control on the modules. The software utility provides users with easy configuration, learning, test and storage of IR commands. Minimzing the amount of IR remote controls and utilizing this module that can be easily integrated with Modbus master devices (e.g. PAC and PLC), the IR-712A further simplifies smart home and building automation for you.

Application

Application Image on IR-712-MTCP-02

  • Home Entertainment Devices
  • Video Conferencing System
  • Surveillance System
  • e-Classroom service
  • Lighting Scenario Control
  • Home and Building Automation
  • ISaGRAF PAC with the IR Remote Application

    application

  • 2 IR output channels for controlling multiple devices
  • 1 IR learning input
  • IR command storage: 224
  • Supports 6 learning IR carrier frequencies: 32.768, 36, 37.037, 38, 40 and 56 kHz
  • Supports RS-232 and RS-485 serial interface
  • Supports function code 0x06/0x10 of Modbus/RTU protocol for IR emitting
  • Assignable Modbus Network IDs: 1~247
  • Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps
  • Configurable NONE / ODD / EVEN parity and 1 or 2 stop bits
  • Provides transmitting / learning and power indication LEDs
  • Built-in Watchdog

Utility

IR-712A Utility supports the OS of Windows XP, Vista and Windows 7 with .NET framework 4.0 platforms. IR-712A Utility provides the functions as follows:

  • IR quantity configuration
  • IR commands learning and testing
  • Save IR learning commands to files
  • Get/Set IR learning commands from/to IR-712A
  • Reference to Modbus commands
  • Set/Reset basic settings of IR-712A

Specifications

IR Interface
IR Output Channels
2 channels with 3.5 mm audio jack
IR Learning Input 1 channel. Supports 6 IR carrier frequencies: 32.768, 36, 37.037, 38, 40, 56 kHz.
IR Commands Storage
IR-712 36 IR Commands
IR-712A
224 IR Commands
Serial Communication Interface
Connector
8-pin (RS-485, RS-232, and Power) screw terminal connecter
COM1
RS-232 (TxD, RxD, GND)
COM2
RS-485 (DATA+, DATA-)
Baud Rate
9600, 19200, 38400, 57600, 115200 bps
Protocol
Modbus/RTU (slave)
LED Indicator
LED
2 LEDs: TR/LN (IR Transmitting/Learning) and PWR (Power)
Power
Power Supply
+10 ~ +30 VDC
Power Consumption
1.8 W Max (OP mode)
Dip Switch
FW (Firmware update mode) / OP (Firmware operation mode)
Mechanism
Installation
DIN-Rail mounting
Dimensions
52 mm x 93 mm x 27 mm (W x H x D)
Environmental
Operating Temperature
-25°C ~ +75°C
Storage Temperature
-30°C ~ +80°C
Humidity
10%~90%, non-condensing
