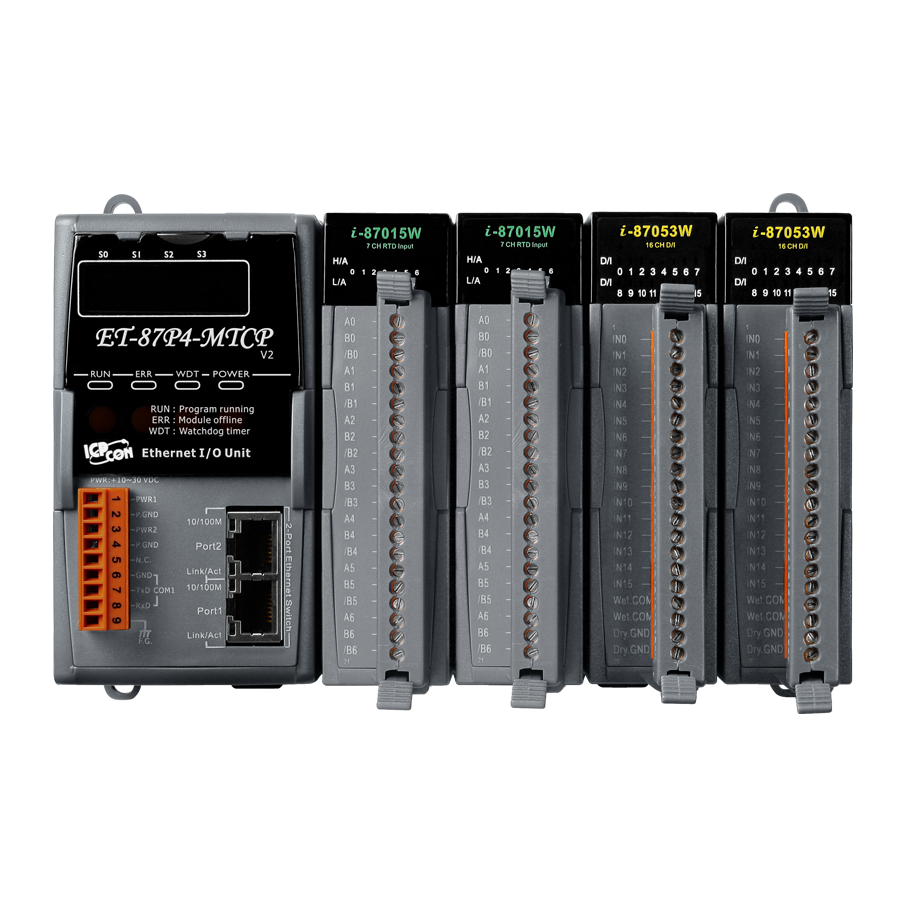

ET-87Pn-MTCP series is a Modbus TCP I/O expansion unit to expand I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports for daisy-chain topology. The daisy-chain feature allows ET-87Pn to connect in series to each other or other Ethernet devices. Users can easily simplify the cabling and save installation space with the feature.
It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75°C). There are more than 50 I/O modules supported with the unit, including analog input/output, digital input/output, DI counter modules. To simplify installation and maintenance of I/O modules, it provides many useful features, such as: auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.
Modbus is a very wide known protocol in the industrial manufacturing and environment monitoring fields. Many SCADA software, HMI and PLC has a built in driver to support Modbus devices. We also provide SDK on different platforms, such as Windows XP, Window CE 5.0/6.0, Linux, MiniOS7. Therefore, it is very easy to integrate remote I/O to customer’s applications.
- Two Ethernet Ports for Daisy-Chain Topology
- Supports Modbus TCP
- Supports Modbus RTU/ASCII
- Supports Modbus TCP to RTU Gateway
- Auto Configuration
- 4/8 I/O Slots for I-87K Series Modules
- Operating Temperature: -25 ~ +75 °C
Reference & Support
|Protocol||Modbus TCP Slave|
|Modbus RTU/ASCII Slave|
|Modbus TCP to RTU Gateway|
|Ethernet||RJ-45 x 2, 10/100 Base-TX (Auto negotiating, Auto MDI/MDI-X, LED indicators)|
|COM 1||RS-232 (to update firmware) (RxD, TxD and GND); non-isolated|
|LED Display||Yes, 5-Digit LED Display|
|I/O Expansion Slots|
|Note: For High Profi I-87K Modules Only|
|Dimensions (W x L x H)||188 mm x 132 mm x 111 mm||312 mm x 132 mm x 111 mm|
|Installation||DIN-Rail or Wall Mounting|
|Operating Temperature||-25 ~ +75 °C|
|Storage Temperature||-30 ~ +75 °C|
|Ambient Relative Humidity||5 ~ 95% RH (non-condensing)|
|Input Range||+10 ~ +30 VDC|
|Redundant Power Inputs||Yes|
|Consumption||2 W||2.4 W|
