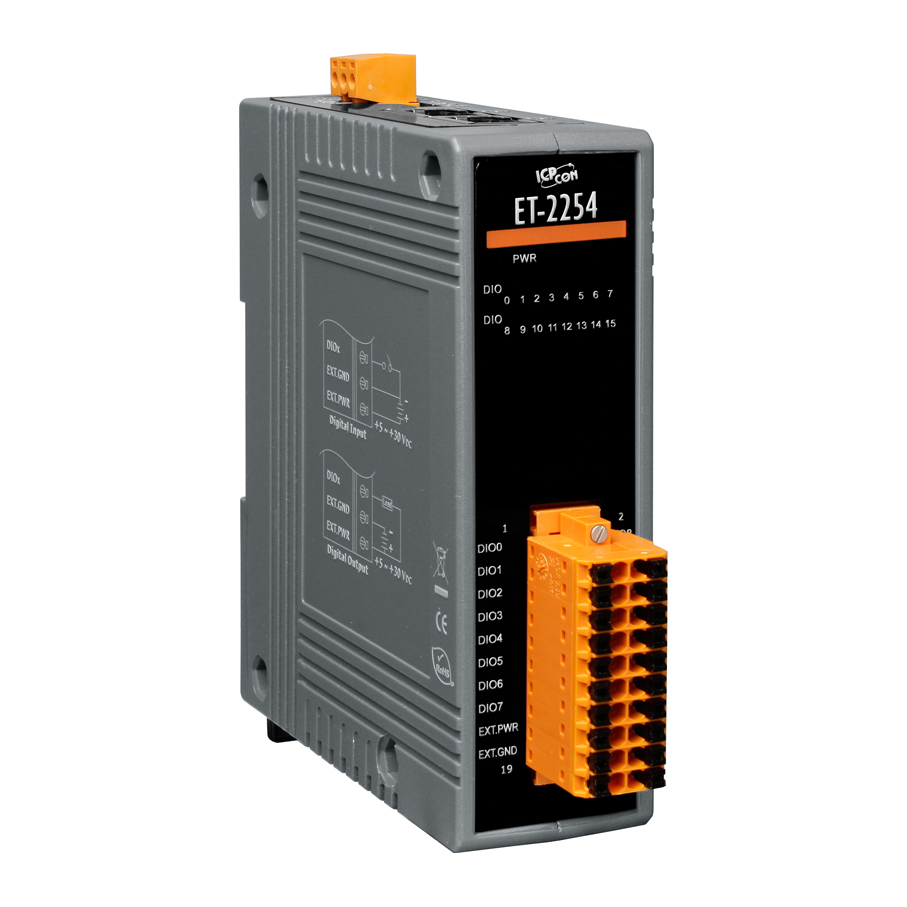

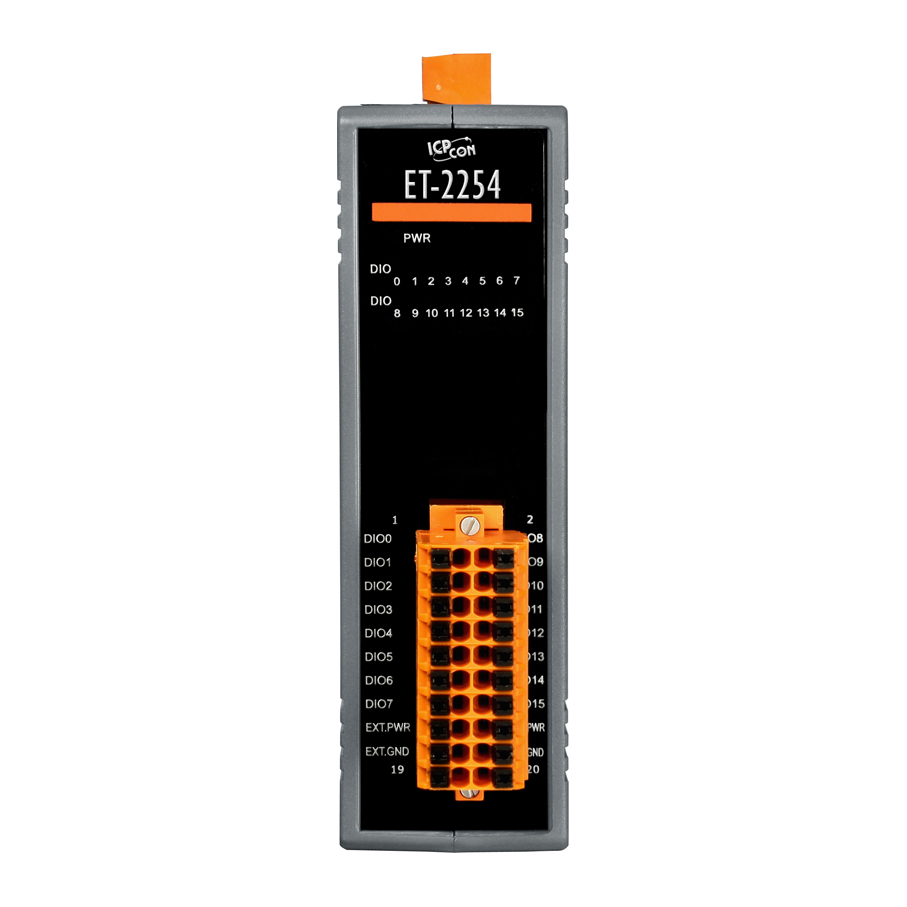

ET-2254
Ethernet I/O Module with 16-ch Universal DIO. Wide Operating Temperature Range: -25 ~ +75 °C. The ET-2254 provides Digital Output channel can drive 100 mA load, while the ET-2254P provides Digital Output channel can drive 400 mA load
Features
Providing a variety of digital I/O functions, the ET-2254 module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industrial applications, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2254 module being perfectly integrated with the HMI, SCADA, PLC or other software systems.
The ET-2254 provides 16-channel Universal DIO. Each I/O port can be configured as DI or DO port. The ET-2254 provides Digital Output channel can drive 100 mA load, while the ET-2254 provides Digital Output channel can drive 400 mA load. There are configurable power-on and safe values for Digital Output. With 2 Ethernet ports, the ET-2254 allows daisy chain connection which enables flexibility in locating devices; easy installation and lower infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3750 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2254 module can continuously poll the status of the local DI channels and then write to the remote DO devices via the Modbus/TCP protocol.
It is equipped with removable terminal block connector for easy and robust wiring in industrial applications, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
- Built-in Web Server
- Support Modbus TCP/UDP Protocols
- Powerful 32-bit MCU Handles Efficient Network Traffic
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- Dual Watchdog
- I/O Pair Connection (Push and Polling)
- Supports web configuration and firmware update via Ethernet
- 16 channels of Universal DIO
- Provide Digital Output Maximum Load Current:
- ET-2254: 100 mA/Channel
- ET-2254P: 350 mA/Channel
- LED Display to Indicate the I/O status
- Bi-direction Universal DIO Ports under software control
- Wide Operating Temperature Range: -25 ~ +75 °C
Applications
- Factory, Building and Home Automation
- Remote Maintenance
Specifications
| System | |
| CPU | 32-bit ARM |
| Communication | |

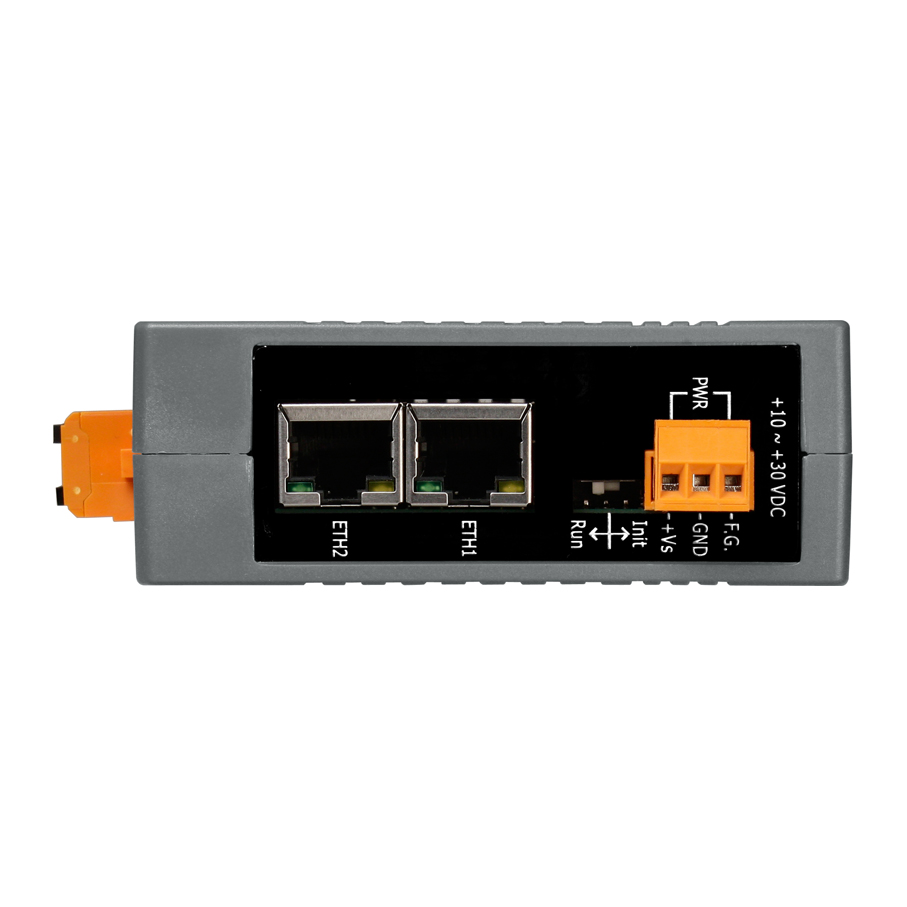

| Ethernet Port | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| Protocol | Modbus TCP, Modbus UDP |
| Security | Password and IP Filter |
| I/O Pair Connection | Yes (Push, Polling) |
| Dual Watchdog | Yes, Module, Communication (Programmable) |
| LAN Bypass | Yes |
| LED Indicators | |
| For System Running | Yes |
| For Ethernet Link/Ack | Yes |
| For DI/DO status | Yes |
| Output Capability | 100 mA/+30 V for one channel @ 100% duty |
| 2-way Isolation | |
| Ethernet | 1500 VDC |
| I/O | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±8 kV Contact for Each Terminal and ±16 kV Air for Random Point |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| Power Requirements | |
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Consumption | 3.3 W (Max.) |
| Mechanical | |
| Dimensions (L x W x H) | 127 mm x 33 mm x 99 mm |
| Installation | DIN-Rail or Wall mounting |
I/O Specifications
| Model | ET-2254 | |
| I/O Type | By Wire Connection, Configurable Universal DIO | |
| I/O Channels | 16 | |
| Digital Input | ||
| Type | Dry Contact | |
| Sink/Source (NPN/PNP) | Source | |
| On Voltage Level | Close to GND | |
| Off Voltage Level | Open | |
| Input Impedance | 3 kΩ, 0.5 W | |
| Digital Input | Max. Count | 4,294,967,295 (32-bit) |
| Max. Input Frequency | 3 kHz | |
| Programmable Digital Filter | 1 ~ 6500 ms (0.08 Hz ~ 500 Hz) | |
| Digital Output | ||
| Type | Open-collector (Sink) | |
| Sink/Source (NPN/PNP) | Sink | |
| Max. Load Current | 100 mA/channel | |
| Load Voltage | +5 VDC to +30 VDC | |
| Short Circuit Protection | - | |
| Power-on Value | Yes, Configurable | |
| Safe Value | Yes, Configurable | |
