Remote CO (carbon monoxide) and CO2 (carbon dioxiode) Alarm / Temperature / Humidity / Dew Point Data Logger with Safety Alarm. Includes iOS App that supports access to real time data on iOS mobile devices. RS-485, Ethernet, and PoE interface. Has operating temperature range of 0°C ~ +50°C (32°F ~ 122°F). (Cellular phone is not included)

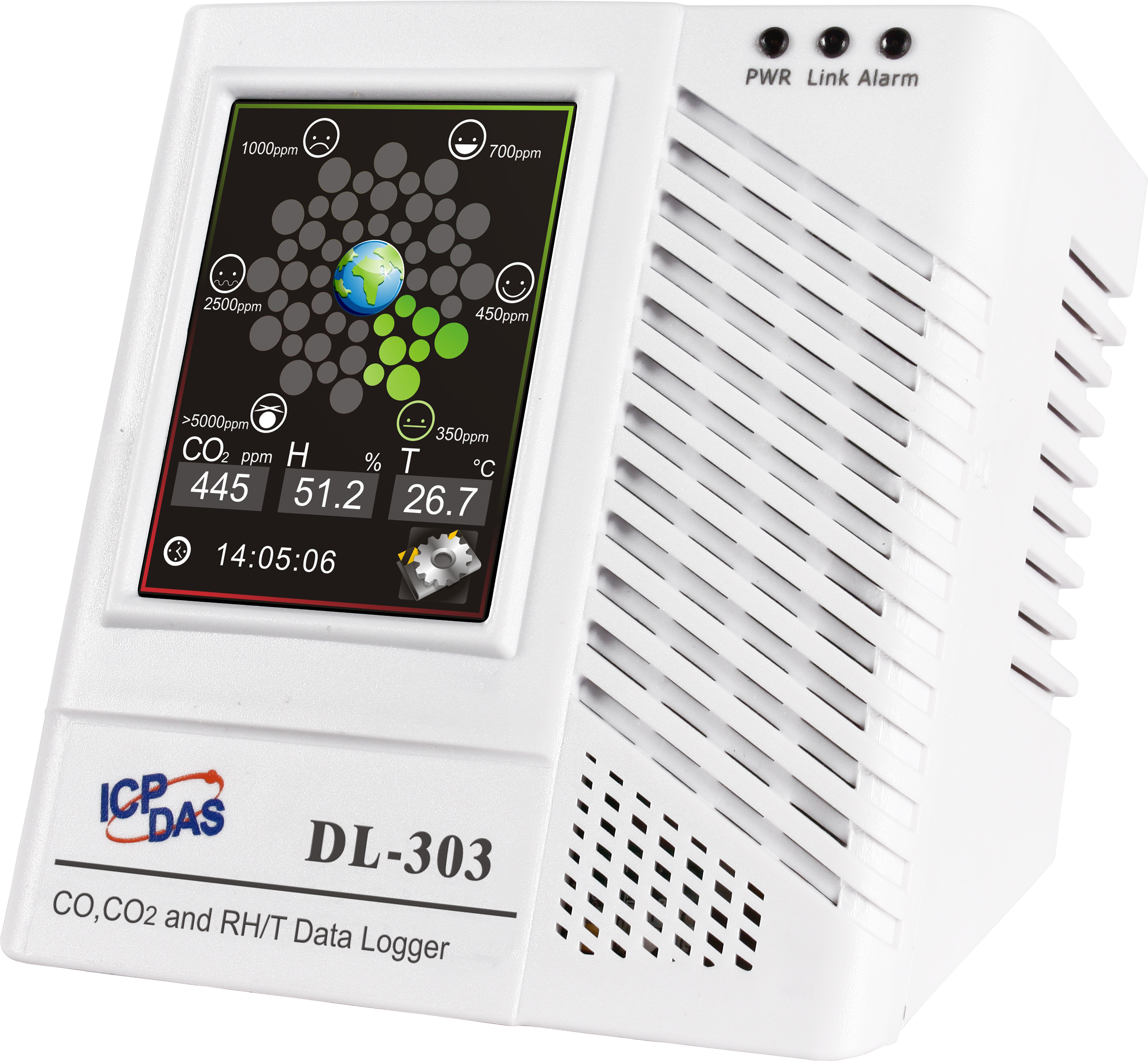

DL-303 - CO, CO2, Temperature and Humidity Data Logger with touchscreen, CO2 relay alarm output and a real time clock.

Remote CO (carbon monoxide) and CO2 (carbon dioxiode) Alarm / Temperature / Humidity / Dew Point Data Logger with Safety Alarm. Includes iOS App that supports access to real time data on iOS mobile devices. RS-485, Ethernet, and PoE interface. Has operating temperature range of 0°C ~ +50°C (32°F ~ 122°F). (Cellular phone is not included)

  Price:  $759.00

Features

applicationsThe DL-301 Data Logger device is used for recording time-stamped Temperature, Humidity, CO, and Dew Point information. You can record up 450,000 records. The DL-301 data logger can be used on iOS mobile devices with its iOS app. Users can have real-time access of data using free Windows software, iOS and Android APPs. It supports DCON, Modbus RTU, Modbus TCP, M2M IoT - Internet of Things, and MQTT protocols and communicates over RS-485 and Ethernet, and can be Powered-over-Ethernet (PoE).

  • Measurement Range
    • CO: 0 ~ 1000 ppm
    • CO2: 0 ~ 9999 ppm
  • Can store up to 450,000 records with date and time stamps
  • Touch screen and Easy Web-based Configuration Interfaces
  • Free Software Utility, iOS APP Included for Use on Mobile Phones
  • Able to Display Multilingual Messages
  • Supports DCON, Modbus RTU, Modbus TCP and MQTT Protocols
  • Supports RS-485/Ethernet/PoE Communication Interfaces
  • Relay Output for Alarm Device or IAQ Device Control
  • Desktop, DIN-Rail or Wall Mounting
  • Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level
  • DL-300 CO data logger feature 1

  • Supports MQTT Protocol for IoT Applications
  • DL-300 CO data logger feature 2

  • Powerful, Free DL300 Utility Software
  • DL-300 CO data logger feature 3

  • Multi-platform Remote Access
  • DL-300 CO data logger feature 4

iOS APP for Use on iOS Devices

iAir is designed for DL-301 data logger, and is now available on the App Store. iAir can retrieve data from DL-301 at any time and any place, and display real time data and messages on screen remotely to send daily schedules or instructions for IAQ device control to the on-site operator.

  • Retrieve real-time data from DL-300 devices
  • Self-defined DL-300 device groups for easy viewing
  • Set multi-language message to display on screen. The message character is based on UTF-8 encoding.
  • Call DL-300 device function can recognize a specific device from the others.
  • Search device function can obtain all the DL-300 devices in the LAN.

Specifications

CO Measurement
Range
0 to 1000 ppm (Electrochemical)
Resolution
1 ppm
Accuracy
±5% of measured value
Response Time
30 seconds
Warm-up Time
60 seconds
CO2 Measurement
Range 0 to 9999 ppm (NDIR)
Resolution 1 ppm
Accuracy ±30 ppm ±3% of measured value
Response Time 20 seconds
Warm-up Time
60 seconds
Temperature Measurement
Range
-10 to +50°C
Resolution
0.1% RH
Accuracy
±5% RH
Relative Humidity Measurement
Range
0 to 100% RH
Resolution
Open-Collector (NPN) (100mA, 30V)
Accuracy
+30 V max
Dew Point
Range
Calculated using temperature and relative humidity
Resolution
0.1°C
System
CO Alarm Yes
CO2 Alarm Yes
Real Time Clock Yes
Data Logger Yes, up to 450,000 records
Relay Output Form A×1, SPST
30 VDC @ 16 A or 250 VAC @ 16 A
Interface RS-485/Ethernet/PoE
Main Machine Interface
LCD
2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3
Backlight Life
20,000 hours
Brightness 160 cd/m2
Touch Panel
Yes
Electrical
Powered from Terminal Block
+12 to +48 VDC
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Power Consumption PoE 2.83 W (Max.)
Non-PoE 2.24 W (Max.)
Mechanical
Dimensions (L x W x H)
114 mm x 106 mm x 56 mm
Installation
Desktop, DIN-Rail or Wall Mounting
Environment
Operating Temperature 0°C ~ +50°C (32°F ~ +122°F)
Storage Temperature -30°C ~ +75°C (-22°F ~ +167°F)
Humidity
10 to 90% RH, Non-condensing
