CL-208-E
Remote TVOC/Temperature/Humidity/Dew Point Data Logger Module (RoHS)
Features
Remote TVOC/Temperature/Humidity/Dew Point Data Logger Module (RoHS). The CL-200 series of data logger devices can be used to record CO, CO2, NH3, H2S, HCHO, TVOC, temperature, humidity and dew point information, including the date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the CL-200 data logger from anywhere and at any time using the free Windows software, the Iso App, or the Android App, as long as they are connected to the same local network as the data logger. Support is provided for common industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200 data logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems.
- Able to record CO, CO2, H2S, NH3, HCHO, TVOC, Temperature, Humidity and Dew Point Measurements
- Non-dispersive Infrared (NDIR) CO2 Sensor
- HCHO : Electrochemical Sensor
- VCO : Metal-Oxide Sensor
- Up to 450,000 records with date and time stamps
- Simple and Powerful Software Utility, iOS APP and Android App Included
- Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
- Includes RS-485/Ethernet Communication Interfaces
- Relay Output for Alarm or IAQ Device Control
- Ceiling Mounting or Wall Mounting
|
|||
Simple and Powerful DL-300 Utility
The DL-300 Utility is a powerful tool that is designed for confi guring the modules, monitoring real-time data, grouping DL-300 and CL-200 modules to view and manage the status of distribution groups, downloading log data, which can be exported to a CSV file that can then be imported into any industry-standard software or spreadsheet for analysis.
|
Applications
|
||||
Indoor or Underground Parking Lot Automatic Monitoring Solution The air quality automation system for indoor or underground parking lot can use the CL-200 series modules to monitor the health and safity information, such as PM2.5, CO, CO2, temperature, humiditym, dew point, and more... |
||||

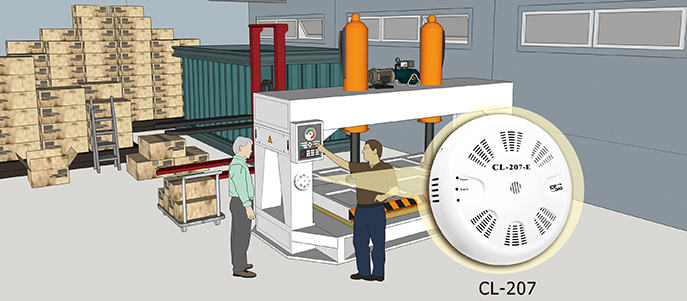

HCHO (Formaldehyde) / VOC Detector Automatic Solution The HCHO/VOC detector provides an instantaneously warning of toxic formaldehyde, which can be found in a plywood factory, furniture factory and new interior remodelling house commonly. |
||||
Specifications
Model | CL-201-E | CL-202-E | CL-203-E | CL-204-E | CL-205-E | CL-206-E | CL-207-E | CL-208-E | |
System | |||||||||
CO Alarm | Yes | - | Yes | - | |||||
CO2 Alarm | - | Yes | Yes | - | |||||
HCHO Alarm | - | Yes | - | Yes | - | ||||
TVOC Alarm | - | Yes | - | Yes | |||||
NH3 Alarm | - | Yes | - | ||||||
H2S Alarm | - | Yes | - | ||||||
RH/Temperature Alarm | Yes | ||||||||
Real Time Clock | Yes | ||||||||
Data Logger | Yes, up to 450,000 records | ||||||||
Relay Output | Form A×1, SPST 30 VDC @ 16 A or 250 VAC @ 16 A |
||||||||
Interface | RS-485/Ethernet | ||||||||
Electrical | |||||||||
Powered from Terminal Block | +12 to +48 VDC | ||||||||
Power Consumption | Non-PoE | 1.5 W (Max.) | 1.5 W (Max.) | 1.6 W (Max.) | 1.9 W (Max.) | 1.6 W (Max.) | 1.6 W (Max.) | 1.9 W (Max.) | 1.9 W (Max.) |
PoE | 1.6 W (Max.) | 1.6 W (Max.) | 1.7 W (Max.) | 2.0 W (Max.) | 1.7 W (Max.) | 1.7 W (Max.) | 2.0 W (Max.) | 2.0 W (Max.) | |
Mechanical | |||||||||
Installation | Ceiling Mounting/Wall Mounting | ||||||||
Protection Class | IP20 | ||||||||
Dimensions (D x H) | Ø 150 mm x 53 mm | ||||||||
Environment | |||||||||
Operating Temperature | 0 to +50°C | ||||||||
Storage Temperature | -1 ppm | ||||||||
Humidity | 10 to 90% RH, Non-condensing |
